215-1828 Rev. B; ECN 16-08-008
© 2016 Bradley
Page 1 of 12
6/6/2016
Installation
LVSD1
Verge

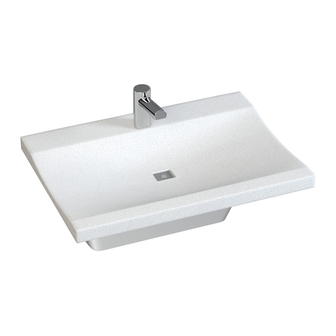

Lavatory System - LVS-Series
®
with Evero
Natural Quartz Material
®
Table of Contents
Components ..................................................................3-4
Supplies Required .............................................................5
Dimensions ....................................................................5-6
Rough-Ins ..........................................................................7
Frame Mounting .................................................................8
Faucet Box and Valve Mounting ........................................9
Overflow Plug Assembly ....................................................9
Drain Assembly ...............................................................10
Faucets and Optional Soap Valve ...................................10
Bowl Mounting .................................................................11
Strainer and P-trap ..........................................................11
Adjust Temperature ..........................................................12
Trap Cover .......................................................................12
Cleaning and Maintenance ..............................................13
Menomonee Falls, WI 53052 USA
800 BRADLEY (800 272 3539)
+1 262 251 6000
P.O. Box 309
bradleycorp.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Bradley Verge LVS Series
Summary of Contents for Bradley Verge LVS Series
-
Page 1: Table Of Contents
Adjust Temperature ............12 Trap Cover ...............12 Cleaning and Maintenance ..........13 P.O. Box 309 215-1828 Rev. B; ECN 16-08-008 Menomonee Falls, WI 53052 USA © 2016 Bradley 800 BRADLEY (800 272 3539) +1 262 251 6000 Page 1 of 12 6/6/2016 bradleycorp.com... - Page 2 If any parts are missing, do not begin installation until you obtain the missing parts. For standard height mounting, do not exceed the recommended 33.5" distance from the fixture rim to the finished floor. Bradley • 215-1828 Rev. B; ECN 16-08-008 6/6/2016...
-
Page 3: Components
Individual Rough-In Option Chrome P-trap (S29-094) Plastic P-trap (269-1697) Hose Prepack TMV Supply Tempered Supply (S45-2730) Connections Connections TMV Valve (½" NPTM Outlet) (S45-2701) Hose Prepack (S45-2702) Supply Fittings (S45-2712) Plastic Hose Plastic Hose Bradley • 215-1828 Rev. B; ECN 16-08-008 6/6/2016... - Page 4 CAP-DCA Faucets includes Transformer (S53-338), CAP-DCA Faucet** Adapter (S53-339), and Grounding (S53-334) Kit (S53-349) for CAP-DCA Faucets **Adapter S45-2873 included with faucet Optional Transformer 6315-KT0000 Soap Dispenser 6324-68 Soap Dispenser 6334 Soap Dispenser Bradley • 215-1828 Rev. B; ECN 16-08-008 6/6/2016...
-
Page 5: Supplies Required
• OPTIONAL: (1) ³⁄₈" NPS x ³⁄₈" NPT Male Adapter for IR-DCD faucet only Dimensions Top View (shown with CAP-DCA faucet and 6315 soap) 6" (152mm) 2½" (64mm) 4¼" (165mm) 21" (533mm) 2" (51mm) 30" Front View (762mm) 1⁷⁄₈" (48mm) 12⁷⁄₈" (327mm) 19³⁄₈" (492mm) Bradley • 215-1828 Rev. B; ECN 16-08-008 6/6/2016... - Page 6 31" (787mm) 33½ (851mm) 33" (838mm) 32½" (826mm) Dim B 27" (686mm) 24" (610mm) 29⁵⁄₈" (752mm) 28¹⁵⁄₁₆" (735mm) 28¹⁵⁄₁₆" (735mm) Dim C 20¾ (527mm) 18¼ (464mm) 21¹⁄₈" (536mm) 20¼" (514mm) 19¾" (502mm) Bradley • 215-1828 Rev. B; ECN 16-08-008 6/6/2016...
-
Page 7: Rough-Ins
Install wall anchor with a minimum pull-out force of 100 lbs. per local codes at locations shown RIM HEIGHT VERTICAL HEIGHT ADJUSTMENTS FIXTURE STYLE 33½" No Adjustment Standard Height, ADA, TAS and CSA 30½" Subtract 3" Juvenile, ADA and TAS 32½" Subtract 1" AODA 33" Subtract ½" Bradley • 215-1828 Rev. B; ECN 16-08-008 6/6/2016... - Page 8 1½" NPT Drain, Stub-out 2" from wall, individual waste option ½" Nominal (⁵⁄₈" O.D. Comp.) Hot/Cold supplies, Stub-out 2" from wall 110V GFI protected electrical outlet (AC faucet and soap only) Outline of soap container (if selected) Bradley • 215-1828 Rev. B; ECN 16-08-008 6/6/2016...
-
Page 9: Drain Assembly
Screw Assemble the remaining components as shown and thread the four screws through the drain adapter and into the basin inserts. Ensure the screws compress the drain adapter evenly onto the basin. Bradley • 215-1828 Rev. B; ECN 16-08-008 6/6/2016... -
Page 10: Bowl Mounting
Strainer and P-Trap Ensure not to overtighten the strainer screw. Strainer Thread the strainer screw Install supplied p-trap to through the strainer and drain adapter. into the stand off on the drain adapter. Bradley • 215-1828 Rev. B; ECN 16-08-008 6/6/2016... -
Page 11: Adjust Temperature
Pivot the trap cover onto the bowl and Secure the trap cover secure the trap cover to the bowl gussets to the wall using screws using the screws and finishing washers provided by installer (2 provided (2 locations). locations). Bradley • 215-1828 Rev. B; ECN 16-08-008 6/6/2016... -
Page 12: Cleaning And Maintenance
Avoid contact with hot pans and objects. Repair Kits: Evero repair kits are available. Contact your Bradley representative or distributor for part numbers and pricing. Repair kits are made to order and have a shelf life of 30 days.
