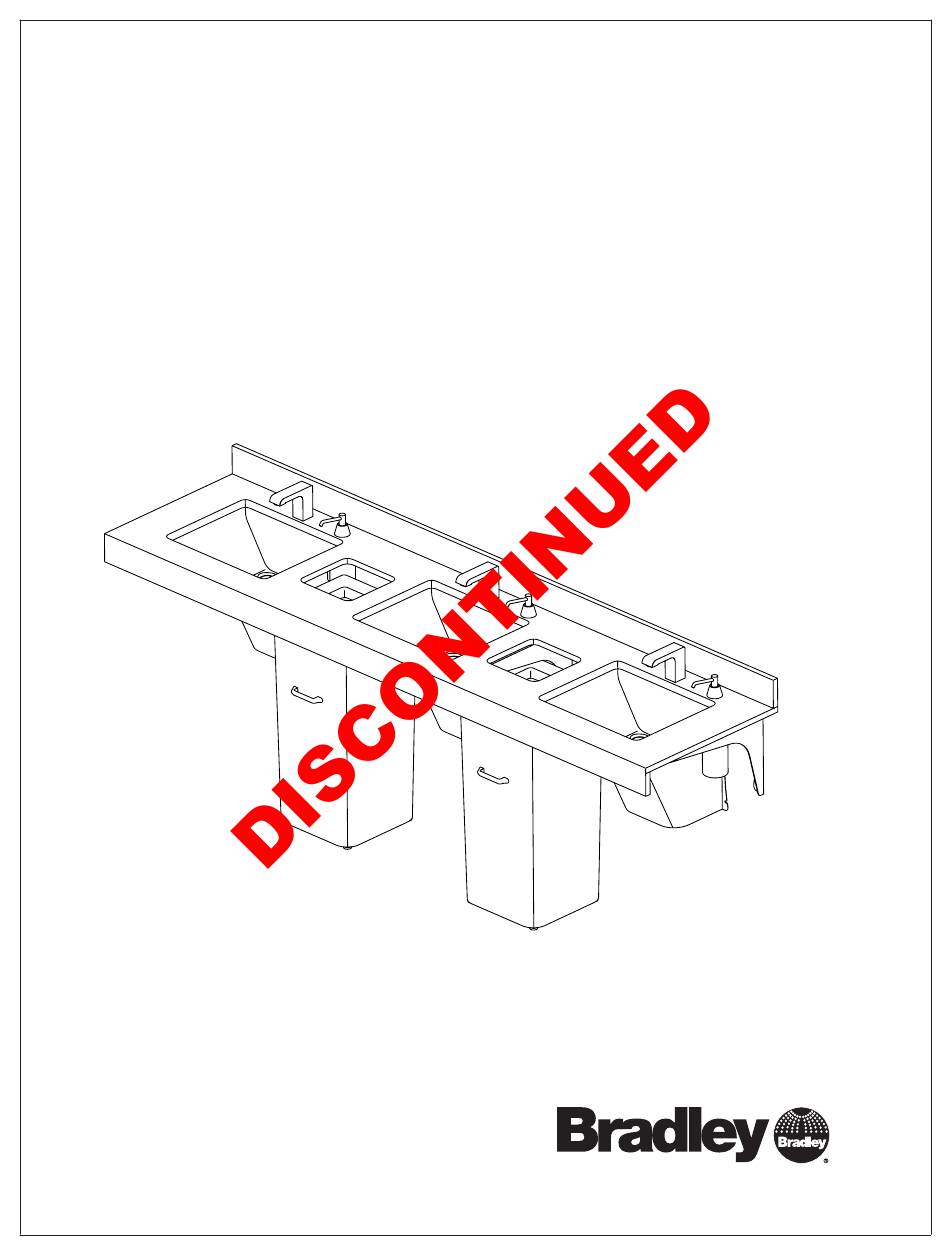

LD-4010-3 shown with optional equipment
215-1702 Rev. C; ECN 13-11-001
© 2013 Bradley
Page 1 of 9
7/31/2013
Installation
LD-4010
OmniDeck
- 4000 Series
™
Table of Contents
Supplies Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6
Rough-Ins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Cleaning and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . 9
P.O. Box 309, Menomonee Falls, WI USA 53052-0309
PHONE 800.BRADLEY (800.272.3539) FAX 262.251.5817
bradleycorp.com
Advertisement
Table of Contents
Related Manuals for Bradley OmniDeck 4000 Series
Summary of Contents for Bradley OmniDeck 4000 Series
-
Page 1: Table Of Contents
Cleaning and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . 9 LD-4010-3 shown with optional equipment 215-1702 Rev. C; ECN 13-11-001 P.O. Box 309, Menomonee Falls, WI USA 53052-0309 © 2013 Bradley PHONE 800.BRADLEY (800.272.3539) FAX 262.251.5817 Page 1 of 9 7/31/2013 bradleycorp.com... -
Page 2: Supplies Required
• For Optional Mounting Brackets: ³⁄₈" wall anchors and fasteners • For Optional Trap Cover: four #10 wall anchors and fasteners (for each cover) • Screen filter(s) as needed, if not included with faucet(s) Bradley • 215-1702 Rev. C; ECN 13-11-001 7/31/2013... -
Page 3: Components
1½" Polypropylene P-trap (269-1697) 1½" Polished Chrome-Plated Brass P-trap (S29-094) Waste Receptacle with Textured Lid Putty (S50-372) Coal (S50-372B) Handle Repair Kit (S65-244) Base Leveler Repair Kit Stainless Steel (S65-245) Plastic (S65-287) Bradley • 215-1702 Rev. C; ECN 13-11-001 7/31/2013... - Page 4 6334 Soap Dispenser 6315-KT0000 Soap 6324 Soap Dispenser, Plastic Globe (16-oz .) Dispenser Kit (batteries 6324-67 Soap Dispenser, Stn . Steel Globe (16-oz .) 6324-68 Soap Dispenser, Plastic Globe (32-oz .) 1000-shot soap included) Bradley • 215-1702 Rev. C; ECN 13-11-001 7/31/2013...
-
Page 5: Dimensions
22" (559mm) Min . Spherical 24" (610mm) Max . Undermount Bowl 15" ADA 16" (381mm) (406mm) 45" ADA (1143mm) 75" ADA (1905mm) To Be Determined Side splash height Apron height 34" ADA (864mm) Floor Bradley • 215-1702 Rev. C; ECN 13-11-001 7/31/2013... - Page 6 Undermount Bowl) Undermount Bowl) 22" 22" (559mm) (559mm) 14⁵⁄₁₆" 15¹⁄₈" (364mm) (384mm) 31" 31" (787mm) (787mm) 9" 9" 24" 24" (229mm) (229mm) (610mm) (610mm) 12¾" 12¾" (324mm) (324mm) 17" 17" (432mm) (432mm) Bradley • 215-1702 Rev. C; ECN 13-11-001 7/31/2013...
-
Page 7: Rough-Ins
110V GFI Protected Electrical Outlet (AC Option Only) 1½" NPT Drain, Stub-Out 2" from Wall #10 Anchors and Screws (TMA Option Only) ¼" Wall Anchors and Screws (Provided) (CAP-DCG, CAP-DCA and IR-DCD Faucet Options Only) Bradley • 215-1702 Rev. C; ECN 13-11-001 7/31/2013... -
Page 8: Installation
(view from top of bowl) P-trap rotated back to fit up with the strainer Drain Strainer and P-trap to be assembled as shown for proper fit-up of trap cover. Strainer elbow rotated toward the back wall Bradley • 215-1702 Rev. C; ECN 13-11-001 7/31/2013... -
Page 9: Cleaning And Maintenance
Avoid contact with hot pans and objects. Repair Kits: Evero repair kits are available . Contact your Bradley representative or distributor for part numbers and pricing . Repair kits are made to order and have a shelf life of 30 days .
