3 Access Point Overview

C-200 is a dual-radio 802.11ax access point.
This chapter provides an overview of the C-200 access point (AP) and describes:
• Front Panel.
• Rear Panel.
3.1

Front Panel

The front panel of the C-200 has four LEDs that indicate the status of various device functions.

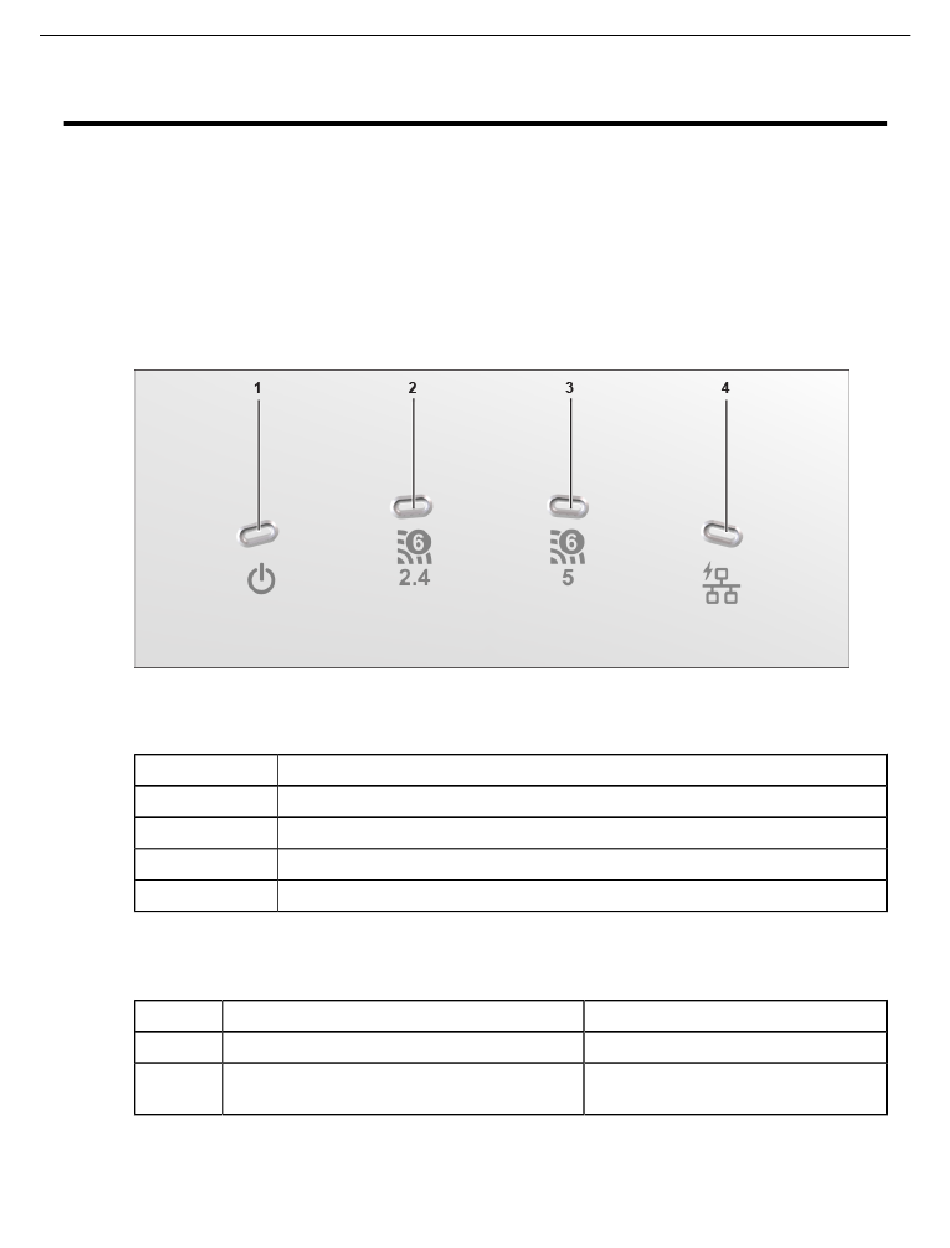

Figure 2: Front Panel LEDs
Table 2: Labels: Front Panel LEDs
Label
1
2
3
4
Power LED: The following table describes the Power LED states.
Table 3: Power LED States Description
Green
Solid Running normally
Blinking Received IP address, but not connected to the
server
LAN1 LED: ON when the corresponding interface is up.
Radio LEDs: ON when the corresponding radio is operational.
Description
Power
2.4 GHz Radio
5 GHz Radio
LAN1
3 Access Point Overview
Orange
NA
Did not receive an IP address
