Arista C-460 Quick Start Manual

Hide thumbs Also See for C-460:

Advertisement

Quick Links

Download this manual
Quick Start Guide

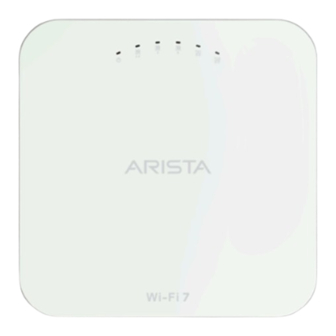

C-460 Access Point
Arista Networks
DOC-06880-01
Arista.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the C-460 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Arista C-460

Summary of Contents for Arista C-460

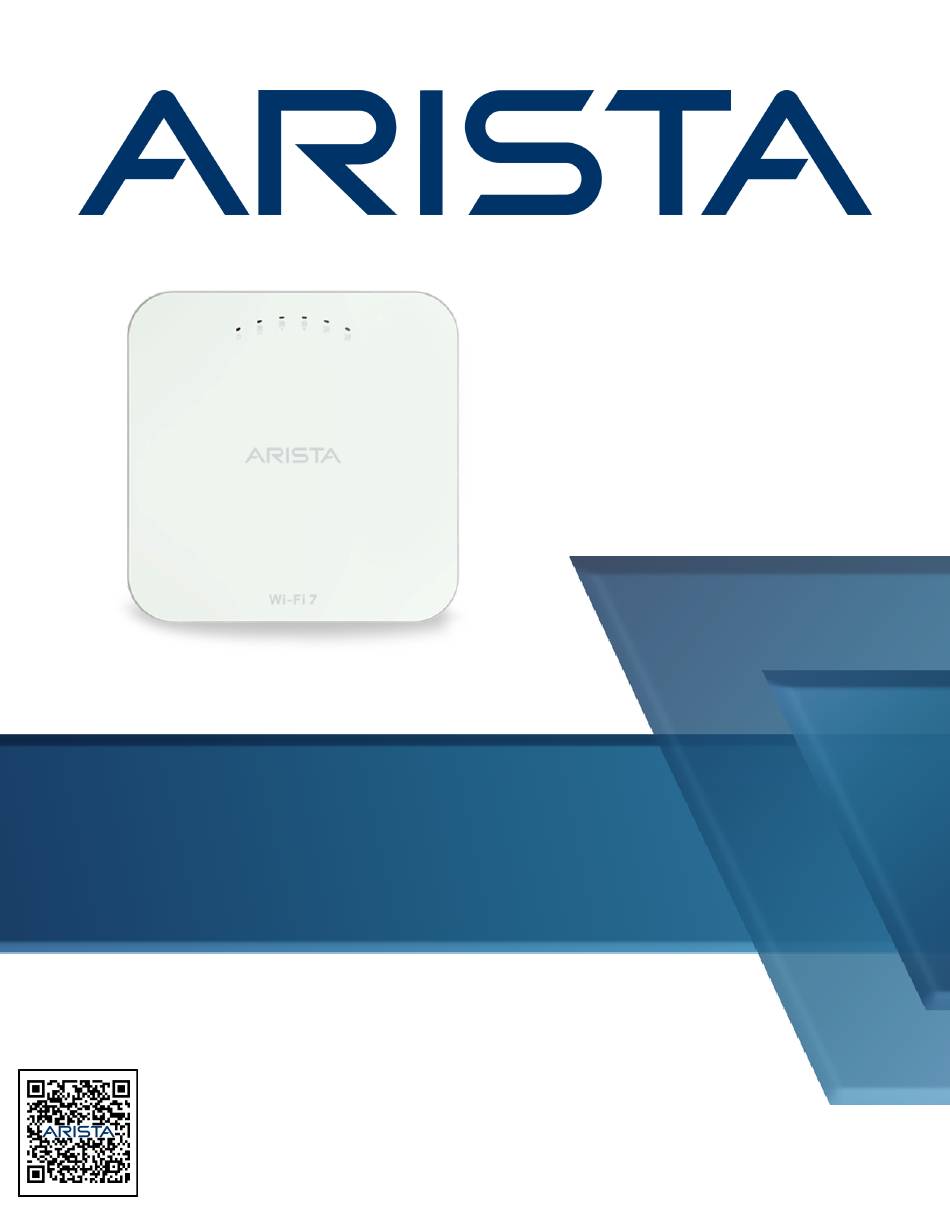

  • Page 1 Quick Start Guide C-460 Access Point Arista Networks DOC-06880-01 Arista.com...
  • Page 2 The trademarks, logos, and service marks ("Marks") displayed in this documentation are the property of Arista Networks in the United States and other countries. Use of the Marks is subject to the Arista Networks Terms of Use Policy, available at www.arista.com/en/terms-of-use. Use of marks belonging to other parties is for...

  • Page 3: Table Of Contents

    Contents Contents Chapter 1: About This Guide................. 1 Chapter 2: Package Content................2 Chapter 3: Access Point Overview............... 3 3.1 Front Panel............................4 3.2 Rear Panel............................5 3.3 Side Panel............................6 Chapter 4: Install the Access Point.............. 8 4.1 Ceiling Mount the Access Point......................8 4.2 Wall Mount the Access Point......................

  • Page 5: Chapter 1: About This Guide

    Chapter 1 About This Guide This installation guide explains how to deploy the C-460 access point (AP). Important: Please read the EULA before installing the access point (AP). You can download and read the EULA from: https://www.arista.com/en/support/product-documentation Installing the AP constitutes your acceptance of the terms and conditions of the EULA mentioned above.

  • Page 6: Chapter 2: Package Content

    Note down the MAC address before mounting the AP on the ceiling or at a location that is difficult to access. If the package is not complete, please contact the Arista Networks Technical Support Team at support- campus@arista.com...

  • Page 7: Chapter 3: Access Point Overview

    Chapter 3 Access Point Overview C-460 is a multi-radio 802.11be access point. Refer the datasheet for more information. Note: This equipment is suitable for use in environment air spaces (plenums). This chapter provides an overview of the access point (AP) and describes: •...

  • Page 8: Front Panel

    Front Panel The front panel of the AP has 6 LEDs that indicate the status of various AP functions. Figure 3-1: Front Panel LEDs Table 2: Labels: Front Panel LEDs Label Description Power 2.4 GHz Radio 5 GHz Radio 6 GHz Radio LAN1 LAN2 Power LED: The following table describes the Power LED states.

  • Page 9: Rear Panel

    Access Point Overview Table 3: Power LED States Description Green Orange Solid Running at full capability Running at reduced capability Blinking Received IP address, but not connected to the Did not receive an IP address server Reduced capability indicates that the AP is getting lower than the required maximum power from the PoE++ switch.

  • Page 10: Side Panel

    Table 4: Labels: Rear Panel Label Description LAN1, POE++ LAN2, POE++ DC Power Table 5: Port Details Port Description Connector Type Speed/Protocol Power 12V DC/4.0A 5.5 mm overall diameter / 2.1 mm center pinhole LAN 1 10 Gigabit Ethernet with RJ-45 11.5/8.6/1.4 Gbps 802.3bt compliant PoE...
  • Page 11 Access Point Overview Table 6: Labels: Side Panel Label Description Reset Console Port Description Connector Type Speed/Protocol Console RJ-45 Establish ‘config shell’ • RS 232 Serial terminal session via serial (115200 bits connection per second) • Data bits:8; Stop bits: •...

  • Page 12: Chapter 4: Install The Access Point

    3851 for bidirectional User Datagram Protocol (UDP) and Transport Control Protocol (TCP) traffic on that firewall. This port number is assigned to Arista Networks. Zero-configuration cannot work if multiple APs are set up to connect to multiple servers. In this case, the APs must be configured manually.

  • Page 13: Wall Mount The Access Point

    Install the Access Point 2. Mounting the AP on the bracket: Place the first mounting post on the rear-side of the AP on to the lower notch of the bracket. Rotate the AP such that the center mounting post fits in to the center notch on the bracket.

  • Page 14: Chapter 5: Power The Access Point On

    Use a compatible power adapter (Arista SKU: PWR-AP-W5) to power the AP. Warning: The C-460 AP is intended to be supplied with a UL-listed PoE power source suitable for use at 45ºC. The power output should meet LPS requirements or PS2, with a rating of 48V DC (1A minimum). The current supplied by PoE++ should be 850mA.

  • Page 15: Chapter 6: Connect The Access Point To The Network

    5. Log on to the server using ssh and run the get sensor list command. You will see a list of all Arista devices that are recognized by the server. Single Sign-On users can go to the Monitor tab in CloudVision Cognitive Unified Edge and check whether the access point is visible under the Monitor tab.

  • Page 16: Chapter 7: Access Point Troubleshooting

    Content Filter between the AP and the Internet, ensure that the settings allow communication between the AP and Arista Cloud Services. • If your configuration requires you to specify an exact IP address or IP range for Arista Cloud Services, please contact support- campus@arista.com.
