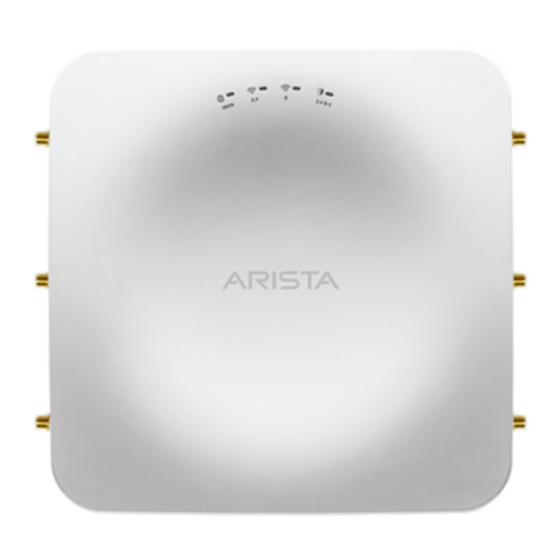

Arista C-130E Quick Start Manual

Hide thumbs Also See for C-130E:
Table of Contents

Advertisement

Quick Links

Download this manual
Quick Start Guide
C-130E Access Point
Arista Networks
DOC-03484-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C-130E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Arista C-130E

Summary of Contents for Arista C-130E

  • Page 1 Quick Start Guide C-130E Access Point Arista Networks DOC-03484-01...
  • Page 2 Inc. The information contained herein is subject to change without notice. Arista Networks and the Arista logo are trademarks of Arista Networks, Inc in the United States and other countries. Other product or service names may be trademarks or service marks of...

  • Page 3: Table Of Contents

    Mounting Instructions using the Standard Package Contents..................7 Mounting Instructions using the Silhouette/Interlude Bracket Mount................8 Mounting Instructions using the Wall Mount Bracket....................9 External Antennas C-130E.............................9 Power on the C-130E................................9 Using C-130E with Power Adapter..........................10 Connect C-130E to the Network............................10 Chapter 5. C-130E Troubleshooting............................11...

  • Page 4: Chapter 1. About This Guide

    Installing the AP constitutes your acceptance of the terms and conditions of the EULA mentioned above in this document. Intended Audience This guide can be referred by anyone who wants to install and configure the C-130E access point. Document Overview This guide contains the following chapters: •...

  • Page 5: Chapter 2. Package Content

    Note down the MAC address, before mounting the device on the ceiling or at a location that is difficult to access. If the package is not complete, please contact Arista Networks Technical Support Team at support-wifi@arista.com, or return the package to the vendor or dealer where you purchased the product.

  • Page 6: Chapter 3. C-130E Overview

    Rear Panel of C-130E The rear panel of the C-130E provides an PoE+ Ethernet port that enables you to connect the device to a wired LAN through a switch or a hub and power the device by using the 802.3af/802.3at standard.

  • Page 7: Top Side Ports On C-130E

    The Reset Pin Hole and the USB port are on the top side of the device as shown in the figure above. The Reset Pinhole resets the C-130E device to factory defaults. To reset the device, press and hold the Reset Pin Hole for 10 sec until all LEDs go off which indicates that the device has rebooted.

  • Page 8: Chapter 4. Install The C-130E

    Take a configured C-130E, that is, ensure that a static IP is assigned to the device or the settings have been changed for DHCP. Note down the MAC address and the IP address of the device in a safe place before it is installed in a hard-to-reach location.

  • Page 9: Mounting Instructions Using The Silhouette/Interlude Bracket Mount

    | 4 - Install the C-130E | 8 2. Mounting C-130E on the bracket: Place the first mounting post on the rear-side of the device on to the lower notch of the bracket. Rotate the device such that the center mounting post fits in to the center notch on the bracket. Ensure that all the mounting posts on the rear-side of the device are snapped in to the respective notches on the bracket.

  • Page 10: Mounting Instructions Using The Wall Mount Bracket

    Power on the C-130E The C-130E device can be powered on by plugging one end of the Ethernet cable into the PoE+ (802.3at) switch or injector and the other end into the Ethernet/PoE+ port on the C-130E. Ensure the PoE+ source you are using is turned ON.

  • Page 11: Using C-130E With Power Adapter

    To connect C-130E to the network, you should meet the following prerequisites: • Ensure that a DHCP server is already available on the network to enable network configuration of the C-130E. • DNS should be able to resolve the server discovery primary: redirector.online.spectraguard.net, secondary: wifi- security-server).

  • Page 12: Chapter 5. C-130E Troubleshooting

    Refer to the event for recommended action. The AP has encountered a problem If you are using Arista Cloud Services, then open the TCP port 443 (SSL). If you have an on-premises installation, then open the ports UDP 3851 and port 80. If you are using a Proxy, Web Accelerator or URL Content Filter in between the AP and the Internet, ensure the settings allow communication between the AP and Arista Cloud Services.
