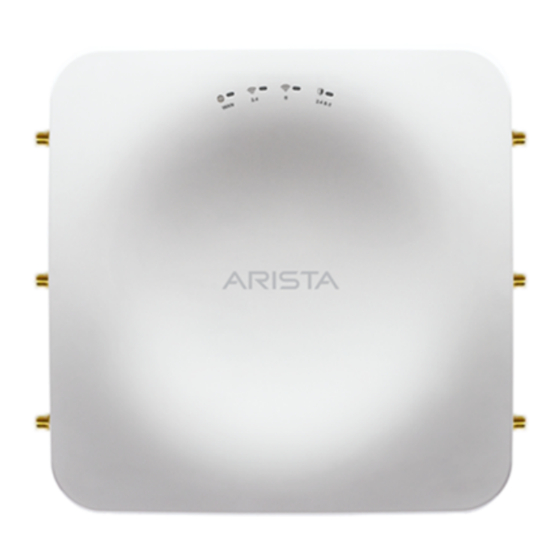

- Page 1 Quick Start Guide C-130E Access Point Arista Networks www.arista.com DOC-03484-02...
- Page 2 © Copyright 2020 Arista Networks, Inc. The information contained herein is subject to change without notice. Arista Networks and the Arista logo are trademarks of Arista Networks, Inc in the United States and other countries. Other product or service names may be trademarks or service marks of others.
-
Page 3: Table Of Contents
Mounting Instructions using the Wall Mount Bracket..................13 Mounting Instructions using the Silhouette or Interlude Bracket Mount .............14 Power the Access Point On.........................14 Using C-130E with Power Adapter ......................15 Connect Access Point to the Network......................15 Access Point Troubleshooting..................16 Appendix A: AP-Server Mutual Authentication ............17... -
Page 4: About This Guide
Installing the AP constitutes your acceptance of the terms and conditions of the EULA mentioned above in this document. Intended Audience This guide can be referred by anyone who wants to install and configure the C-130E access point. Document Overview This guide contains the following chapters: •... -
Page 5: Package Content
Package Content The access point (AP) package must contain the components shown in the following figure. C-130E... - Page 6 Figure 1: Package Components...
- Page 7 Note down the MAC address, before mounting the AP on the ceiling or at a location that is difficult to access. If the package is not complete, please contact Arista Networks Technical Support Team at support-wifi@arista.com, or return the package to the vendor or dealer where you purchased the product. C-130E...
-
Page 8: C-130E Overview
External Antenna Ports on C-130E on page 10 Front Panel of C-130E The front panel of the C-130E has 4 functional LEDs that indicate the working of the device. Figure 2: Front Panel LEDs Table 2: Labels: Front Panel LEDs... -
Page 9: Rear Panel Of C-130E
Rear Panel of C-130E The rear panel of the C-130E provides an PoE+ Ethernet port that enables you to connect the device to a wired LAN through a switch or a hub and power the device by using the 802.3af/802.3at standard. -
Page 10: Top Side Ports On C-130E
802.3af Power over features will be disabled Ethernet (PoE+) standard. Top Side Ports on C-130E Describes the supported AC power supplies and lists the power cables you can use to connect the supply to a power source. Figure 4: Top Side Panel... -
Page 11: External Antenna Ports On C-130E
The Reset Pin Hole and the USB port are on the top side of the device as shown in the figure above. The Reset Pinhole resets the C-130E device to factory defaults. To reset the device, press and hold the Reset Pin Hole for 10 sec until all LEDs go off which indicates that the device has rebooted. -
Page 12: Install The C-130E
3851 for User Datagram Protocol (UDP) and Transport Control Protocol (TCP) bidirectional traffic on that firewall. This port number is assigned to Arista Networks. If multiple devices are set up to connect to multiple servers, zero-configuration is not possible. In this case, you must manually configure the APs. - Page 13 1. Affixing the bracket to the T -grid: Use the mounting bracket to install the C-130E on the ceiling. Fix the bracket to the T-grid and rotate the bracket so that it snaps on the T-grid. The bracket is now parallel to an arm of the T-grid. Ensure that the bracket is properly snapped to the T-grid.
-
Page 14: Mounting Instructions Using The Wall Mount Bracket
Mounting Instructions using the Wall Mount Bracket The Wall mounting bracket is not a part of the standard package and must be procured separately. Attach the wall-mounting bracket with the help of screws on to the wall. Pull the side latch to unlock the wall mount bracket. Affix the device on the wall mount bracket by placing the device stubs in the bracket's placeholder. -
Page 15: Mounting Instructions Using The Silhouette Or Interlude Bracket Mount
Power the Access Point On The C-130E device can be powered on by plugging one end of the Ethernet cable into the PoE+ (802.3at) switch or injector and the other end into the Ethernet/PoE+ port on the C-130E. Ensure the PoE+ source you are using is turned ON. -
Page 16: Using C-130E With Power Adapter
To connect C-130E to the network, you should meet the following prerequisites: • Ensure that a DHCP server is already available on the network to enable network configuration of the C-130E. • DNS should be able to resolve the server discovery primary: redirector.online.spectraguard.net, secondary: wifi-security-server). -
Page 17: Access Point Troubleshooting
'Authentication failed ' event is raised on the server. Refer to the event for recommended action. The AP has encountered a problem. • If you are using Arista Cloud Services, then open the TCP port 443 (SSL). If you have an on-premises installation, then open UDP port 3851 and port 80. -
Page 18: Appendix A: Ap-Server Mutual Authentication
Appendix A: AP-Server Mutual Authentication The AP-server communication begins with a mutual authentication step in which the AP and server authenticate each other using a shared secret. The AP-server communication takes place only if this authentication succeeds. After the authentication succeeds, a session key is generated. All communication between the AP and server from this point on is encrypted using the session key.
