Quick Start Guide

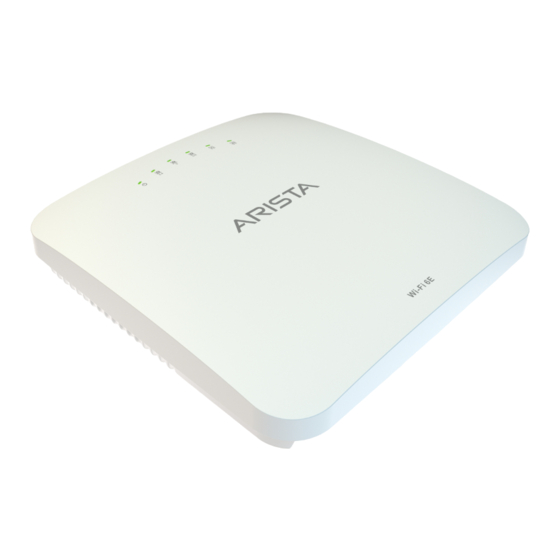

C-360 Access Point
Arista Networks
www.arista.com
DOC-05349-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C-360 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Arista C-360

Summary of Contents for Arista C-360

  • Page 1 Quick Start Guide C-360 Access Point Arista Networks www.arista.com DOC-05349-01...
  • Page 2 © Copyright 2022 Arista Networks, Inc. The information contained herein is subject to change without notice. Arista Networks and the Arista logo are trademarks of Arista Networks, Inc in the United States and other countries. Other product or service names may be trademarks or service marks of others.

  • Page 3: Table Of Contents

    4.1 Ceiling Mount the Access Point..................... 6 4.2 Wall Mount the Access Point....................7 4.3 Power the Access Point On....................8 4.3.1 Using the C-360 with Power Adapter............... 8 4.4 Connect the Access Point to the Network................8 4.4.1 Connect the Access Point using PoE...............8 5 Access Point Troubleshooting............8...

  • Page 5: About This Guide

    1 About This Guide 1 About This Guide This installation guide explains how to deploy the C-360 access point (AP). Important: Please read the EULA before installing the access point (AP). You can download and read the EULA from https://www.arista.com/en/support/product-documentation.
  • Page 6 Note down the MAC address before mounting the AP on the ceiling or at a location that is difficult to access. If the package is not complete, please contact the Arista Networks Technical Support Team at support- wifi@arista.com...

  • Page 7: Access Point Overview

    The Rear Panel of the • The Side Panel of the Front Panel The front panel of the C-360 has 6 LEDs that indicate the status of various device functions. Figure 2: Front Panel LEDs Table 2: Labels: Front Panel LEDs Label...

  • Page 8: Rear Panel

    LAN. Figure 3: Rear Panel Table 4: Labels: Rear Panel Label Description LAN1 LAN2 Power The following tables shows port details for C-360. Port Description Connector Type Speed/Protocol Power 12V DC 5.5 mm overall diameter / 2.1 mm...

  • Page 9: Side Panel

    3 Access Point Overview Port Description Connector Type Speed/Protocol LAN 1 10 Gigabit Ethernet with RJ-45 100 / 1000 Mbps / 2.5 / 802.3bt compliant PoE 5 / 10 Gbps Ethernet LAN 2 10 Gigabit Ethernet with RJ-45 100 / 1000 Mbps / 2.5 / 802.3bt compliant PoE 5 / 10 Gbps Ethernet Side Panel...

  • Page 10: Install The Access Point

    3851 for bidirectional User Datagram Protocol (UDP) and Transport Control Protocol (TCP) traffic on that firewall. This port number is assigned to Arista Networks. Zero-configuration cannot work if multiple APs are set up to connect to multiple servers. In this case, the APs must be configured manually.

  • Page 11: Wall Mount The Access Point

    4 Install the Access Point 2. Mounting C-360 on the bracket: Place the first mounting post on the rear-side of the AP on to the lower notch of the bracket. Rotate the AP such that the center mounting post fits in to the center notch on the bracket.

  • Page 12: Power The Access Point On

    5. Log on to the server using ssh and run the get sensor list command. You will see a list of all Arista devices that are recognized by the server. Single Sign-On users can go to the Monitor tab in CloudVision Cognitive Unified Edge and check whether the device is visible under the Monitor tab.

  • Page 13: Appendix A: Ap-Server Mutual Authentication

    AP and Arista Cloud Services. • If your configuration requires you to specify an exact IP address or IP range for Arista Cloud Services, please contact support- wifi@arista.com. 6 Appendix A: AP-Server Mutual Authentication The AP-server communication begins with a mutual authentication step in which the AP and server authenticate each other using a shared secret.

  • Page 14: Appendix B: Product Compliance

    must manually configure the new communication key on an AP if it is not connected to the server when the key is changed on the server. Note: Although the server is backward compatible—that is, older version APs can connect to a newer version server—this is not recommended.
