Quick Start Guide
C-330 Access Point
Arista Networks
www.arista.com
DOC-06058-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C-330 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Arista C-330

Summary of Contents for Arista C-330

  • Page 1 Quick Start Guide C-330 Access Point Arista Networks www.arista.com DOC-06058-01...
  • Page 2 © Copyright 2023 Arista Networks, Inc. The information contained herein is subject to change without notice. Arista Networks and the Arista logo are trademarks of Arista Networks, Inc in the United States and other countries. Other product or service names may be trademarks or service marks of others.

  • Page 3: Table Of Contents

    Contents Contents 1 About This Guide................1 2 Package Content..................2 3 Access Point Overview............... 3 3.1 Front Panel..........................3 3.2 Rear Panel..........................4 3.3 Side Panel..........................5 4 Install the Access Point..............7 4.1 Ceiling Mount the Access Point..................... 7 4.2 Wall Mount the Access Point....................8 4.3 Connect the Access Point to the Network................

  • Page 5: About This Guide

    1 About This Guide 1 About This Guide This installation guide explains how to deploy the C-330 access point (AP). Important: Please read the EULA before installing the access point (AP). You can download and read the EULA from: https://www.arista.com/en/support/product-documentation Installing the AP constitutes your acceptance of the terms and conditions of the EULA mentioned above.

  • Page 6: Package Content

    Note down the MAC address before mounting the AP on the ceiling or at a location that is difficult to access. If the package is not complete, please contact the Arista Networks Technical Support Team at support- wifi@arista.com...

  • Page 7: Access Point Overview

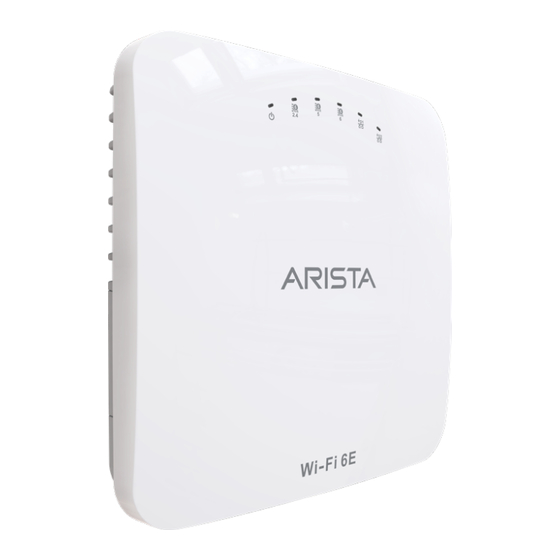

    3 Access Point Overview 3 Access Point Overview C-330 is a multi-radio 802.11ax access point. Note: This equipment is suitable for use in environment air spaces (plenums). This chapter provides an overview of the access point (AP) and describes: •...

  • Page 8: Rear Panel

    Power LED: The following table describes the Power LED states. Table 3: Power LED States Description Green Orange Solid Running at full capability Running at reduced capability Blinking Received IP address, but not connected to the Did not receive an IP address server Reduced capability indicates that the AP is getting lower than the required maximum power from the PoE switch, i.e., 802.3af instead of 802.3at.

  • Page 9: Side Panel

    3 Access Point Overview Table 5: Port Details Port Description Connector Type Speed/Protocol Power 12V DC 5.5 mm overall diameter / 2.1 mm center pinhole LAN 1 2.5 Gigabit Ethernet RJ-45 10/100/1000 Mbps / 2.5 with 802.3at compliant Gbps Ethernet LAN 2 2.5 Gigabit Ethernet RJ-45...
  • Page 10 Reset Pinhole push button Reset to factory default settings port. Hold down and power cycle the device to reset. When you reset the AP, the following settings are reset: • Config shell password is reset to config. • Server discovery value is erased and changed to the default, redirector.online.spectraguard.net (primary) and wifi-security-server (secondary).

  • Page 11: Install The Access Point

    3851 for bidirectional User Datagram Protocol (UDP) and Transport Control Protocol (TCP) traffic on that firewall. This port number is assigned to Arista Networks. Zero-configuration cannot work if multiple APs are set up to connect to multiple servers. In this case, the APs must be configured manually.

  • Page 12: Wall Mount The Access Point

    2. Mounting the AP on the bracket: Place the first mounting post on the rear-side of the AP on to the lower notch of the bracket. Rotate the AP such that the center mounting post fits in to the center notch on the bracket.

  • Page 13: Connect The Access Point Using Poe

    5. Log on to the server using ssh and run the get sensor list command. You will see a list of all Arista devices that are recognized by the server. Single Sign-On users can go to the Monitor tab in CloudVision WiFi and check whether the device is visible under the Monitor tab.

  • Page 14: Access Point Troubleshooting

    URL Content Filter between the AP and the Internet, ensure that the settings allow communication between the AP and Arista Cloud Services. • If your configuration requires you to specify an exact IP address or IP range for Arista Cloud Services, please contact support- wifi@arista.com.

  • Page 15: Appendix A: Ap-Server Mutual Authentication

    6 Appendix A: AP-Server Mutual Authentication 6 Appendix A: AP-Server Mutual Authentication The AP-server communication begins with a mutual authentication step in which the AP and server authenticate each other using a shared secret. The AP-server communication takes place only if this authentication succeeds.
