- Page 1 Quick Start Guide C-200 Access Point Arista Networks www.arista.com DOC-04358-02...
- Page 2 © Copyright 2022 Arista Networks, Inc. The information contained herein is subject to change without notice. Arista Networks and the Arista logo are trademarks of Arista Networks, Inc in the United States and other countries. Other product or service names may be trademarks or service marks of others.
-
Page 3: Table Of Contents
4.1 Ceiling Mount the Access Point..................... 6 4.2 Wall Mount the Access Point....................7 4.3 Power the Access Point On....................14 4.3.1 Using the C-200 with Power Adapter..............14 4.4 Connect the Access Point to the Network................14 4.4.1 Connect the Access Point using PoE..............15 5 Access Point Troubleshooting............16... -
Page 5: About This Guide
1 About This Guide 1 About This Guide This installation guide explains how to deploy the C-200 access point (AP). Important: Please read the EULA before installing the access point (AP). You can download and read the EULA from https://www.arista.com/en/support/product-documentation. -
Page 6: Package Content
Note down the MAC address before mounting the AP on the ceiling or at a location that is difficult to access. If the package is not complete, please contact the Arista Networks Technical Support Team at support- wifi@arista.com... -
Page 7: Access Point Overview

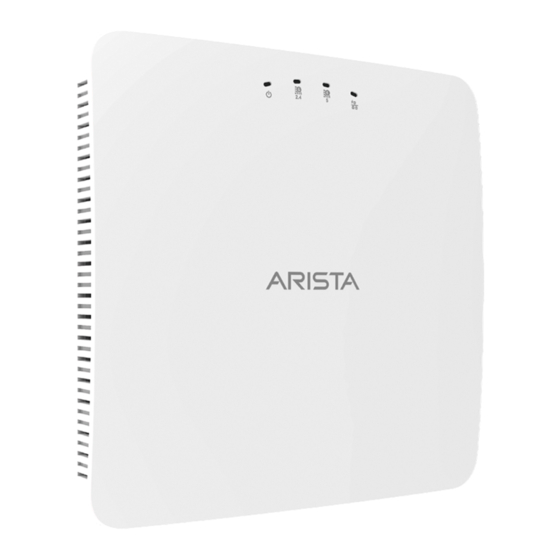

Front Panel. • Rear Panel. Front Panel The front panel of the C-200 has four LEDs that indicate the status of various device functions. Figure 2: Front Panel LEDs Table 2: Labels: Front Panel LEDs Label Description Power 2.4 GHz Radio... -
Page 8: Rear Panel
LAN. Figure 3: Rear Panel Table 4: Labels: Rear Panel Label Description LAN1 Console Reset Power Table 5: C-200 Port Details Port Description Connector Type Speed/Protocol LAN 1 1 Gigabit Ethernet RJ-45 100M/1G Ethernet... - Page 9 3 Access Point Overview Port Description Connector Type Speed/Protocol Console Establish ‘config shell’ RJ-45 • RS 232 Serial terminal session via (115200 bits per serial connection second) • Data bits:8; Stop bits: 1 • Parity: None • Flow Control: None Reset Reset to factory default Pinhole push button...
-
Page 10: Install The Access Point
3851 for bidirectional User Datagram Protocol (UDP) and Transport Control Protocol (TCP) traffic on that firewall. This port number is assigned to Arista Networks. Zero-configuration cannot work if multiple APs are set up to connect to multiple servers. In this case, the APs must be configured manually. -
Page 11: Wall Mount The Access Point
4 Install the Access Point parallel to an arm of the T-grid. Ensure that the bracket is properly snapped to the T-grid, as shown below. 2. Mounting the AP on the bracket: Place the first mounting post on the rear-side of the AP on to the lower notch of the bracket. - Page 12 1. Drill four mounting holes in the wall, as shown below. Table 6: Labels: Dimensions to drill holes Label Description 46 mm 83.4 mm Diameter: 6.5 mm, Depth: 30 mm...
- Page 13 4 Install the Access Point 2. Insert four anchors. Table 7: Labels: Anchor Dimensions Label Description 6.5 mm 28.1 mm 2.5 mm 9 mm...
- Page 14 3. Affix the mounting bracket on the wall. Table 8: Labels: Tapping Screw Dimensions Label Description 6.5 (+0, -0.5) mm 5.5 (+0, -0.5) mm 2 (+-0.2) mm 20 (+-0.8) mm 3 (+0.1, -0) mm...
- Page 15 4 Install the Access Point Label Description 0.8 (+-0.1) mm 4. Attach the AP to the mounting bracket. Pull the release key outward. Attach the AP stubs to the bracket holder, ensuring a firm fit.
- Page 16 5. Once attached, push in the release key to lock the hooks and make sure all the hooks are locked in place.
- Page 17 4 Install the Access Point 6. Fasten the release key screw with a tamper-resistant T10 torx screwdriver to lock the AP to the bracket. Table 9: Labels: Release Key Screw Dimensions Label Description 6 (+-0.2) mm 5.3 (+-0.2) mm 1.2 (+-0.2) mm...
-
Page 18: Power The Access Point On
40ºC, and whose output meets LPS requirements or PS2, with a rating of 48V DC 260mA minimum. If you are not using PoE, ensure that you use only an AC power adapter supported by the C-200 access point (AP). This product is intended to be supplied by a Listed Direct Plug-In Power Unit marked “Class 2”, Listed Power Adapter or DC power source marked “L.P.S.”... -
Page 19: Connect The Access Point Using Poe
4 Install the Access Point the DHCP server running on the subnet, you must manually configure the AP. For details on configuring an AP manually, see the Access Point Configuration guide on our support portal. 4.4.1 Connect the Access Point using PoE If you are using a PoE injector, make sure the data connection is plugged into a suitable switch port with proper network connectivity. -
Page 20: Access Point Troubleshooting
URL Content Filter between the AP and the Internet, ensure that the settings allow communication between the AP and Arista Cloud Services. • If your configuration requires you to specify an exact IP address or IP range for Arista Cloud Services, please contact support- wifi@arista.com. -
Page 21: Appendix A: Ap-Server Mutual Authentication
6 Appendix A: AP-Server Mutual Authentication 6 Appendix A: AP-Server Mutual Authentication The AP-server communication begins with a mutual authentication step in which the AP and server authenticate each other using a shared secret. The AP-server communication takes place only if this authentication succeeds. -
Page 22: Appendix B: Product Compliance
7 Appendix B: Product Compliance Singapore IMDA Registration Mark...
