Refco TAP Installation And Operating Manual page 11

rature And Pressure Gauge
mperature And Pressure Gauge
Battery case cover
4 x 1.5 V AAA
Connection fitting ¼" SAE
UNIT
FF by pressing ≥ 1 sec.
Display shows "OFF"
Backlight off
Display off
tem On-mode by pressing
= 20 min (configurable)
NIT by pressing ≥ 1 sec.
No function
To escape from
ast set menu
All manuals and user guides at all-guides.com
Instruction Manual TAP / Temperature And Pressure Gauge
ON / OFF
By pressing [ON/OFF] + [UNIT] button same time
+
< 1 sec. the following mode is activated:
UNIT
- Set number of TAP-CLAMP. Scroll from T1 to T6 by
pressing [UNIT] button < 1 sec. (once set, setting
remains)
By pressing [ON/OFF] + [UNIT] button same time
> 1 sec. the following mode is activated:
- Set Auto Off as required. 10 min / 20 min / OFF.
(Factory default value is 20 min.)
Scroll from 10 / 20 / OFF by pressing [UNIT] button
< 1 sec. (once set, the setting remains)
Green LED light flashing No LED light
Indicator
LED light
- Power on
- Wireless transmission to
pressure gauge on.

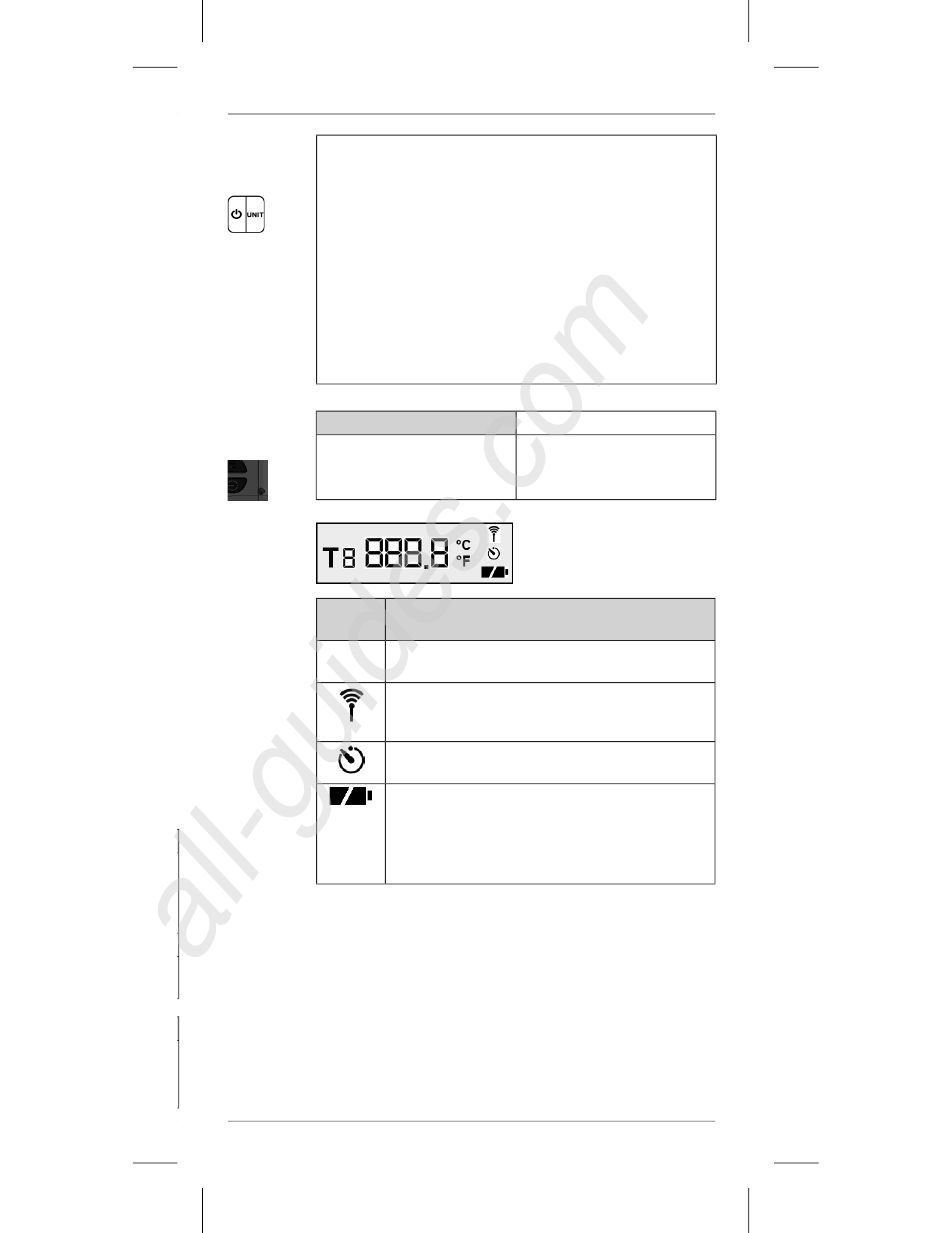

Display
T1....T6 Number of TAP CLAMP
°C
°F
8
- Power off
- Wirless transmission to
pressure gauge off.
T1 to T6
Temperature units
Transmiting symbol
Flashing during connection setup.
Constant after connection.
Auto Off
10 min. / 20 min. / OFF
Low battery indication
If the battery charge level < 30%, the
battery empty symbol will appear on display.
The batteries must then be replaced within
two hours in order to guarantee full function.
English
11
