17/07/2019
FRONT COMBINATION LIGHT REMOVAL/INSTALLATION
Warning
• Incorrect servicing of the discharge headlights could result in electrical shock. Before servicing the discharge headlights, always refer to the service
warnings. (See DISCHARGE HEADLIGHT SERVICE WARNINGS.)
Note
• Fogging or condensation on the inside of the front combination lights may occur due to a natural phenomenon occurring as a result of a temperature
difference between the interior and exterior of the combination lights. However, it has no effect on the light performance because the temperature
inside the front combination lights rises after illuminating the headlights or a period of time has elapsed.
1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5
(WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY
CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)
2. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

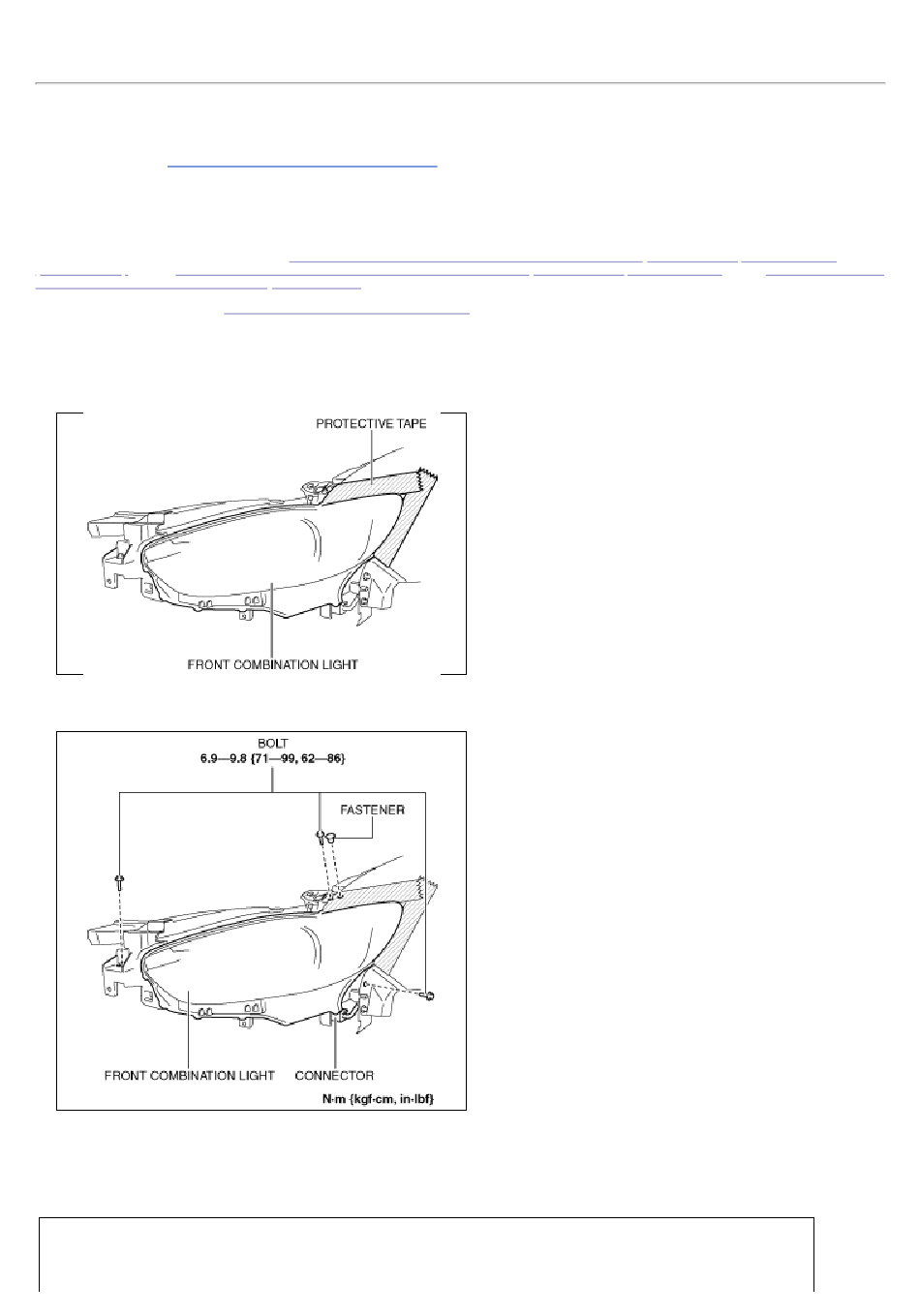

3. To prevent scratches or damage, affix protective tape to the position shown in the figure.
Caution
• When the front combination light is removed from the body, perform the procedure after affixing protective tape to the body. Otherwise, the body
could interfere with the front combination light and cause scratching or damage to the body.
4. Disconnect the connector.
5. Remove the fastener.
6. Remove the bolts.
7. Pull the front combination light in the direction of the arrow shown in the figure and pull out the front combination light pins from the body.
https://euroesi.mazda.co.jp/esicont/eu_eng/mazda6/20120903161818/html/id091800800700.html
FRONT COMBINATION LIGHT REMOVAL/INSTALLATION
am6zzw00009221
am6zzw00009222
id091800800700
1/2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mazda 6 GJ 2.2 D 2012
Summary of Contents for Mazda 6 GJ 2.2 D 2012
- Page 1 17/07/2019 FRONT COMBINATION LIGHT REMOVAL/INSTALLATION FRONT COMBINATION LIGHT REMOVAL/INSTALLATION id091800800700 Warning • Incorrect servicing of the discharge headlights could result in electrical shock. Before servicing the discharge headlights, always refer to the service warnings. (See DISCHARGE HEADLIGHT SERVICE WARNINGS.) Note • Fogging or condensation on the inside of the front combination lights may occur due to a natural phenomenon occurring as a result of a temperature difference between the interior and exterior of the combination lights. However, it has no effect on the light performance because the temperature inside the front combination lights rises after illuminating the headlights or a period of time has elapsed. 1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) 2. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.) 3. To prevent scratches or damage, affix protective tape to the position shown in the figure. Caution • When the front combination light is removed from the body, perform the procedure after affixing protective tape to the body. Otherwise, the body could interfere with the front combination light and cause scratching or damage to the body. am6zzw00009221 4. Disconnect the connector. am6zzw00009222 5. Remove the fastener. 6. Remove the bolts. 7. Pull the front combination light in the direction of the arrow shown in the figure and pull out the front combination light pins from the body. https://euroesi.mazda.co.jp/esicont/eu_eng/mazda6/20120903161818/html/id091800800700.html...
- Page 2 17/07/2019 FRONT COMBINATION LIGHT REMOVAL/INSTALLATION am6zzw00011258 8. Remove the front combination light. 9. Install in the reverse order of removal. Caution • When replacing the front combination light, refer to the FRONT COMBINATION LIGHT DISASSEMBLY/ASSEMBLY and verify that all of the parts have been assembled. If a part has not been assembled correctly, it could cause water leakage or a malfunction such as fogging in the housing. (See FRONT COMBINATION LIGHT DISASSEMBLY/ASSEMBLY.) 10. Adjust the headlight aiming. (See HEADLIGHT AIMING.) https://euroesi.mazda.co.jp/esicont/eu_eng/mazda6/20120903161818/html/id091800800700.html...
