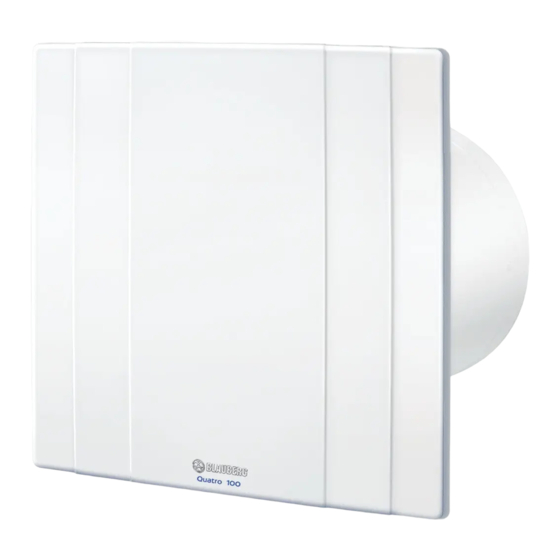

- Page 1 AXIAL FAN Quatro USER’S MANUAL...
-
Page 2: Table Of Contents
Manufacturer’s warranty ..........................................11 This user’s manual is a main operating document intended for technical, maintenance, and operating staff. The manual contains information about purpose, technical details, operating principle, design, and installation of the Quatro unit and all its modifications. - Page 3 READ THE USER’S MANUAL CAREFULLY BEFORE PROCEEDING WITH INSTALLATION WORKS. COMPLIANCE WITH THE MANUAL REQUIREMENTS ENSURES RELIABLE OPERATION AND LONG SERVICE LIFE OF THE UNIT. KEEP THE USER’S MANUAL AVAILABLE AS LONG AS YOU USE THE UNIT. YOU MAY NEED TO REREAD THE INFORMATION ON THE PRODUCT SERVICING.
- Page 4 Transported air must not contain any dust or other solid impurities, sticky substances, or fibrous materials. Do not use the unit in a hazardous or explosive environment containing spirits, gasoline, insecticides, etc. Do not close or block the intake or extract vents in order to ensure the efficient air flow.
- Page 5 This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
-
Page 6: Delivery Set
DELIVERY SET — 1 pc. Screws with dowels — 4 pcs. Plastic screwdriver (for all models with a timer) — 1 pc. User’s manual — 1 pc. Packing box — 1 pc. BRIEF DESCRIPTION The unit described herein is an axial fan for exhaust ventilation of small to medium-sized premises heated during winter. It is designed for wall or ceiling mounting (Fig. -
Page 7: Designation Key
DESIGNATION KEY Designation example: Quatro Max Hi-Tech 100 ST е1 12 Fan series Motor modification Max – high-powered motor Grille colour _ – white Hi-Tech Chrome Hi-Tech Spigot diameter [mm] 100, 120, 125, 150 Basic options _ – no options S –... -
Page 8: Installation And Set-Up
INSTALLATION AND SET-UP The fan is designed for wall or ceiling mounting with direct air exhaust to the ventilation shaft or into the round air duct of matching diameter (Fig. 2). Fan installation sequence: step 1. Cut off power supply and make sure electricity has been turned off (Fig. 6). step 2. -
Page 9: Fan Setup
FAN SETUP — to adjust the humidity set point, turn the control knob H clockwise to increase and counter-clockwise to decrease the humidity sensor set point, adjustable from 60 % up to 90 %. — to adjust the fan turn-off delay time, turn the control knob T clockwise to increase and counter-clockwise to decrease the turn-off delay time respectively, adjustable from 2 up to 30 minutes. -
Page 10: Technical Maintenance
TECHNICAL MAINTENANCE The fan maintenance periodicity is at least once per 6 months. Maintenance steps: • Disconnect the fan from power supply and make sure electricity has been turned off (Fig. 14). • Remove the front and the decorative panels, wipe the fan with a dry cloth or a brush (Fig. 15). •... -
Page 11: Manufacturer's Warranty
MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/ EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC. - Page 12 • Redesign or engineering changes to the unit. • Replacement and use of any assemblies, parts and components not approved by the manufacturer. • Unit misuse. • Violation of the unit installation regulations by the user. • Violation of the unit control regulations by the user. •...
- Page 13 Dimensions [mm] Weight Model [kg] Quatro 100 0,56 Quatro 120 Quatro 125 0,73 Quatro 150 R 600 1°...2° The unit with a protection rating against access to hazardous parts and water ingress IP34 is allowed to be installed in zone 2, according to IEC 60364-7-701:2019.
- Page 16 100/120/125/150 Fan does not run Contact of the S switch or the pull cord switch is CLOSED Fan runs 100/120/125/150 S Contact of the S switch or the pull cord switch is OPENED 100/120/125/150 T Fan does not run Contact of the S switch or the pull cord switch is CLOSED Fan runs...
- Page 17 100/120/125/150 H 100/120/125/150 SH Fan does not run Contact of the S switch or the pull cord switch is CLOSED Humidity exceeds set point Fan runs Contact of the S switch or the pull cord switch is OPENED Fan runs Humidity is below set point Humidity exceeds set point Activation of turn-off...
- Page 19 Quality Inspector’s Stamp Sold by (name and stamp of the seller) Manufacture Date Purchase Date...
- Page 20 Model Quatro_________________________________________________________________________ www.blaubergventilatoren.de B174EN-03 Quatro...
