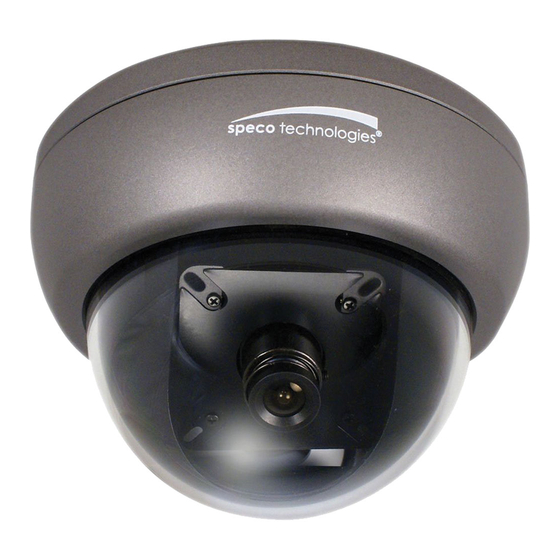

650line intensifier tamperproof dome w/chameleon cover 3.6mm lens wall/ceiling mount
Hide thumbs Also See for HINT13D7G:
Table of Contents

Advertisement

Quick Links

Download this manual
All manuals and user guides at all-guides.com
HINT13D7G
650Line Intensifier3
Tamperproof Dome
w/Chameleon Cover
3.6mm lens
Wall/Ceiling Mount
Wall/Ceiling Mount
Please read this manual thoroughly before operation and keep
it handy for further reference.
TM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HINT13D7G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Speco HINT13D7G

Summary of Contents for Speco HINT13D7G

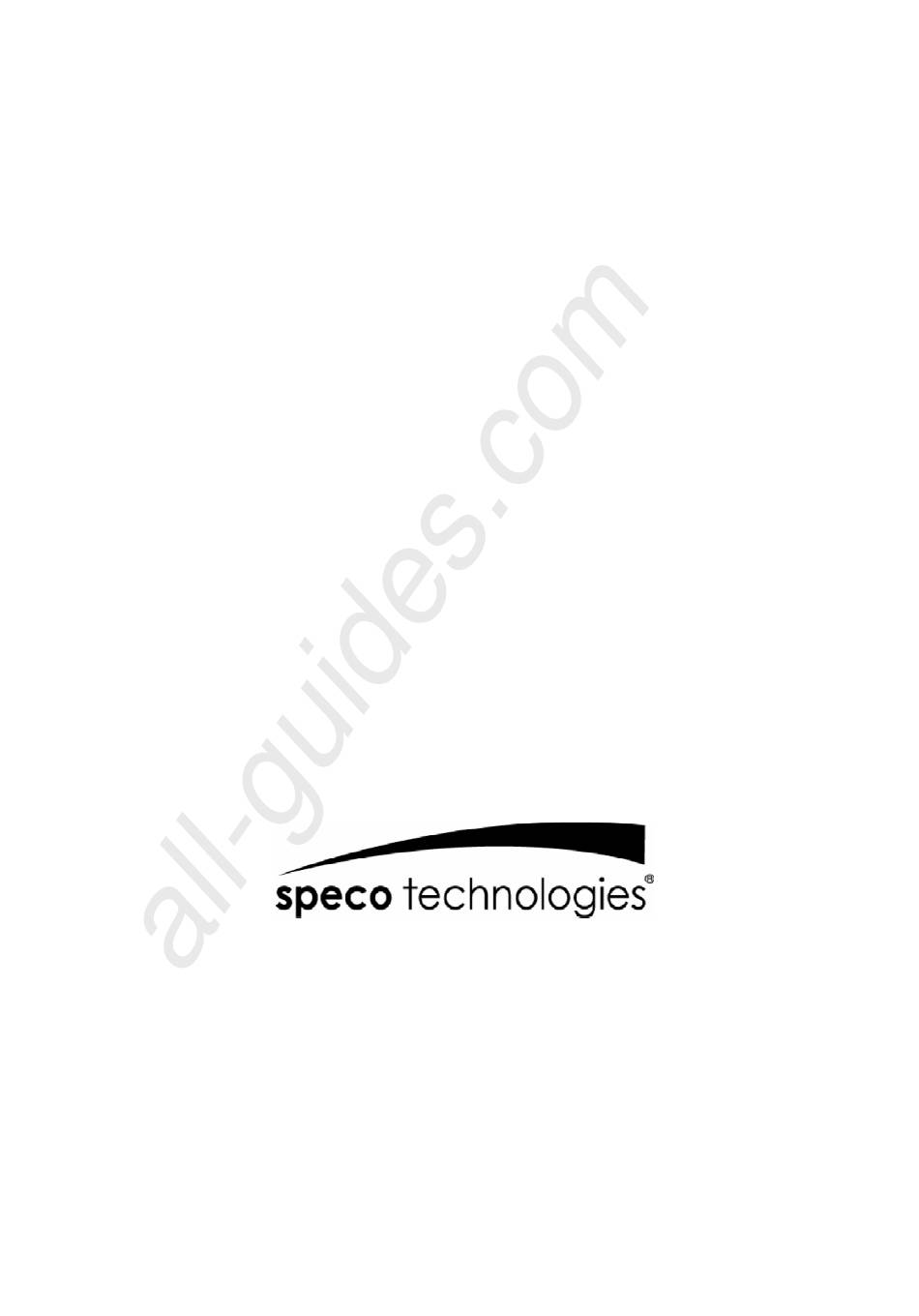

  • Page 1 All manuals and user guides at all-guides.com HINT13D7G 650Line Intensifier3 Tamperproof Dome w/Chameleon Cover 3.6mm lens Wall/Ceiling Mount Wall/Ceiling Mount Please read this manual thoroughly before operation and keep it handy for further reference.

  • Page 2: Warning And Caution

    All manuals and user guides at all-guides.com WARNING & CAUTION CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION TO REDUCE THE RISK OF ELECTRIC SHOCK D O N O T R E M O V E C O V E R ( O R B A C K ) . N O U S E R S E R V I C E A B L E P A R T S I N S I D E R E F E R S E R V I C I N G T O Q U A L I F I E D S E R V I C E P E R S O N N E L .

  • Page 3: Package Contents

    All manuals and user guides at all-guides.com PACKAGE CONTENTS Please make sure that the following items are included in the Package: 3 Mounting Screws and Anchors 1 Set Screw 1 Video Test Connector 1 Power Cable 1 Chameleon Cover...

  • Page 4: Camera Installation

    All manuals and user guides at all-guides.com CAMERA INSTALLATION CHAMELEON COVER Place the Chameleon Dome over the camera and push until it snaps into position. Notes : Optional painting before installation ● * Painting method for the Chameleon Dome * Spray the color of your choice onto the Chameleon cover * If necessary, apply a second coat...
  • Page 5 High quality Pictures to be captured in very low light condition. More Powerful WDR in strong back lighting. Your camera allows you to get a clear image. SPECO DNR The Intensifier camera has a DSP chip that can remove image noise efficiently showing clean images in low light conditions.

  • Page 6: Privacy Mask

    All manuals and user guides at all-guides.com FEATURES PRIVACY MASK It also has the ability to mask up to 8 areas of the picture where Viewing is not desired. Each zone can be independently programmed via the OSD STABILIZER This function removes image jitter that is caused by vibrations in the building and reduces the amount of hard drive space.

  • Page 7: Osd Menu Tree

    WDR / BLC / HLC COLOR TEMP AWC-SET / MANUAL / ATW1 / ATW2 SPECO DNR DNR LEVEL / SSC (Speco Sensitivity Control) EFFECTS DZOOM / IMAGE FREEZE / D-EFFECT / CONTRAST / SHARPNESS / COLOR ADJUST / INITIAL SET / PREVIOUS...

  • Page 8: Osd Menu Details

    All manuals and user guides at all-guides.com OSD MENU DETAILS 1. PRESET [INDOOR / OUTDOOR / LOW LIGHT / LOBBY / HALLWAY / ELEVATOR] Quick & Easy Way to install without complicated OSD menu setting! ** Attention : Select any preset mode and push the set button once, Blinking status means it is correctly set up at that mode.

  • Page 9: Color Temp

    All manuals and user guides at all-guides.com OSD MENU DETAILS 3. DAY/NIGHT [AUTO / DAY / NIGHT] - DAY : Full time color mode - NIGHT : Full time black & white mode - AUTO (D/N LEVEL / DWELL TIME / NIGHT BURST) ** Attention : AUTO is disabled when the AGC in INTENSIFIER is ‘Off’.
  • Page 10 Increasing the DNR level reduces noise but may introduce video artifacts. DNR is deactivated if AGC is turned off. ** SSC (Speco Sensitivity Control) - adjusts the brightness level in low light condition only. Tune right value to get a Right image data in low light .

  • Page 11: Monitor Type

    All manuals and user guides at all-guides.com OSD MENU DETAILS 8. SPECIAL [MOTION DET / PRIVACY MASK / LANGUAGE / STABILIZER / LL SYNC / MONITOR TYPE / FACTORY RESET / PREVIOUS] - MOTION DET. : Built in motion detector with adjustable areas of coverage will send a signal to an external alarm device when motion is detected.

  • Page 12: Specifications

    ATW 1 / ATW 2 / AWC SET / MANUAL Balance) Min. Illumination 0.00002Lux (intensifier) 0.03Lux (shutter) S/N ( Y signal) 52dB (Weight On) SPECO DNR ON - DYNAMIC / OFF Motion Detection ON / OFF (8 Programmable Zone) Built - in Privacy Function...
  • Page 13 All manuals and user guides at all-guides.com DIMENSIONS * TOP VIEW * SIDE VIEW HIGH IMPACT DOME...

  • Page 14: Warranty

    All manuals and user guides at all-guides.com WARRANTY...
  • Page 15 All manuals and user guides at all-guides.com MEMO...
  • Page 16 All manuals and user guides at all-guides.com 200 New Highway Amityville, NY 11701 631-957-8700 www.specotech.com Rev. 120122 Speco Technologies is constantly developing product improvements. We reserve the right to modify product design and specifications without notice and without incurring any obligation.
