Speco Intensifier H Outdoor Mini Turret Camera Quick Start Manual

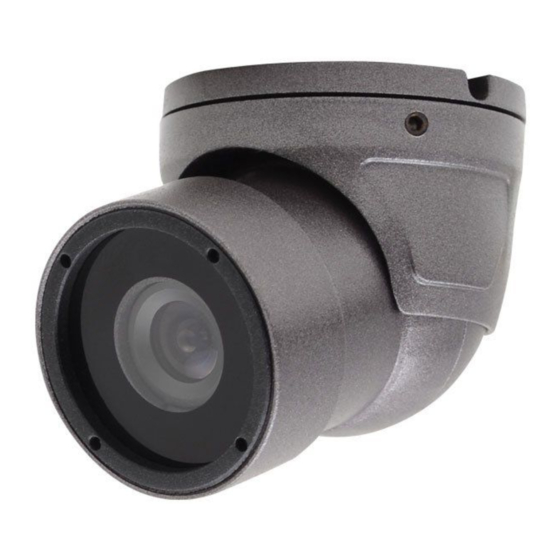

Intensifier H® Outdoor Mini Turret Camera, Wall/Ceiling Mount
HINT71HG – Grey, 2.9mm / HINT71HW – White, 2.9mm
HINT72HG – Grey, 3.6mm / HINT72HW – White, 3.6mm
DIMENSIONS
Unit : inch
SPECIFICATIONS
ITEMS
Lens
Image Sensor
Resolution
Total Pixels
Effective Pixels
Scanning System
Synchronization Synchronization
Min. Illumination
S/N (Y signal)
Shutter
Power Consumption
Power Supply
Operational Temp.
Dimensions
Weight
OSD joystick built-in cable
UP
LEFT RIGHT
DOWN
OSD MENU Details
PRESET : Used for quick and easy setup
for the installation environment.
MAIN SETUP : to adjust more detailed
Function, press this button then you get
More OSD tree as window as right side.
EXIT
- SAVE : Press to save the current
settings and exit main menu.
- RESTORE : Press to exit main menu
without saving settings.
- INITIAL : Resets all settings to it's
factory defaults.
Front View
Intensifier H® Outdoor Mini Turret
2.9mm (HINT71HG / HINT71HW)
3.6mm (HINT72HG / HINT72HW)
1/3" SONY COLOR 960H CCD
700TV lines
1020(H) x 508(V) (NTSC)
976(H) x 494(V) (NTSC)
2 : 1 Interlace
Internal Internal
0.01Lux at F1.2, 0.00001Lux (Sens-up x512)
50dB
1/60~1/120,000sec (NTSC)
150mA (DC)
12VDC
-4 F - 140 F
° °
1.58"(Dia.) x 1.49"(H) x 2.09"(L)
4oz.
Main cable for Video / Power has built-in
OSD joystick in order for users to adjust OSD
Menu for their particular application
Side View
OSD MENU TREE
PRESET MODE
• INDOOR • OUTDOOR • LOW LIGHT • LOBBY • HALLWAY • ELEVATOR
MAIN SETUP***
EXIT
• SAVE • RESTORE • INITIAL
MAIN SETUP***
EXPOSURE
• ELC
• AGC • INTENSIFY
DAY / NIGHT
• DAY • NIGHT • EXT.
WHITE BAL
• ATW • PUSH • MANUAL
MONITOR
• GAMMA • CHROMA • SHARPNESS • SHADING
• BACKLIGHT •CONTRAST • POSI/NEGA
• BLC • HLC • WDR • DEFOG
SPECO DNR
• LOW / MIDDLE / HIGH / OFF
MOTION
SYSTEM
• CAM ID • ID DISP • SYNC
• CAM TITLE
EXPOSURE : Adjusts exposure settings.
ELC (Electronic Light Control) / ALC (not used for this camera)
LENS : Select the lens type (ALC/ELC)
BRIGHTNESS : Adjusts image brightness. (0~ 20)
SHUTTER : Auto / Manual Shutter can be selectable (1/60 ~ 1/120000)
FLK(Flicker Less) : Select this when the picture flickers (ON/OFF)
AGC: Adjusts the Automatic Gain Control level. (0~20)
INTENSIFY : x2-x512 (increasing magnification may cause noise/distortion).
DAY / NIGHT : Adjust Day / Night options.
DAY : Full time color mode (This camera has this function as a factory default)
NIGHT : Full time B/W mode.
AUTO : Day / Night is switching automatically by AGC level.
EXTERN & CDS : not use for this camera
200 New Highway, Amityville, NY 11701
800-645-5516 / www.specotech.com
*Accessory *
3 mounting screw
1 wrench
1 Power lead
• AUTO
• PED.LV
•H-MIRROR •PRIVACY
•SPECIAL • LANGUAGE
