Sensorless homing function

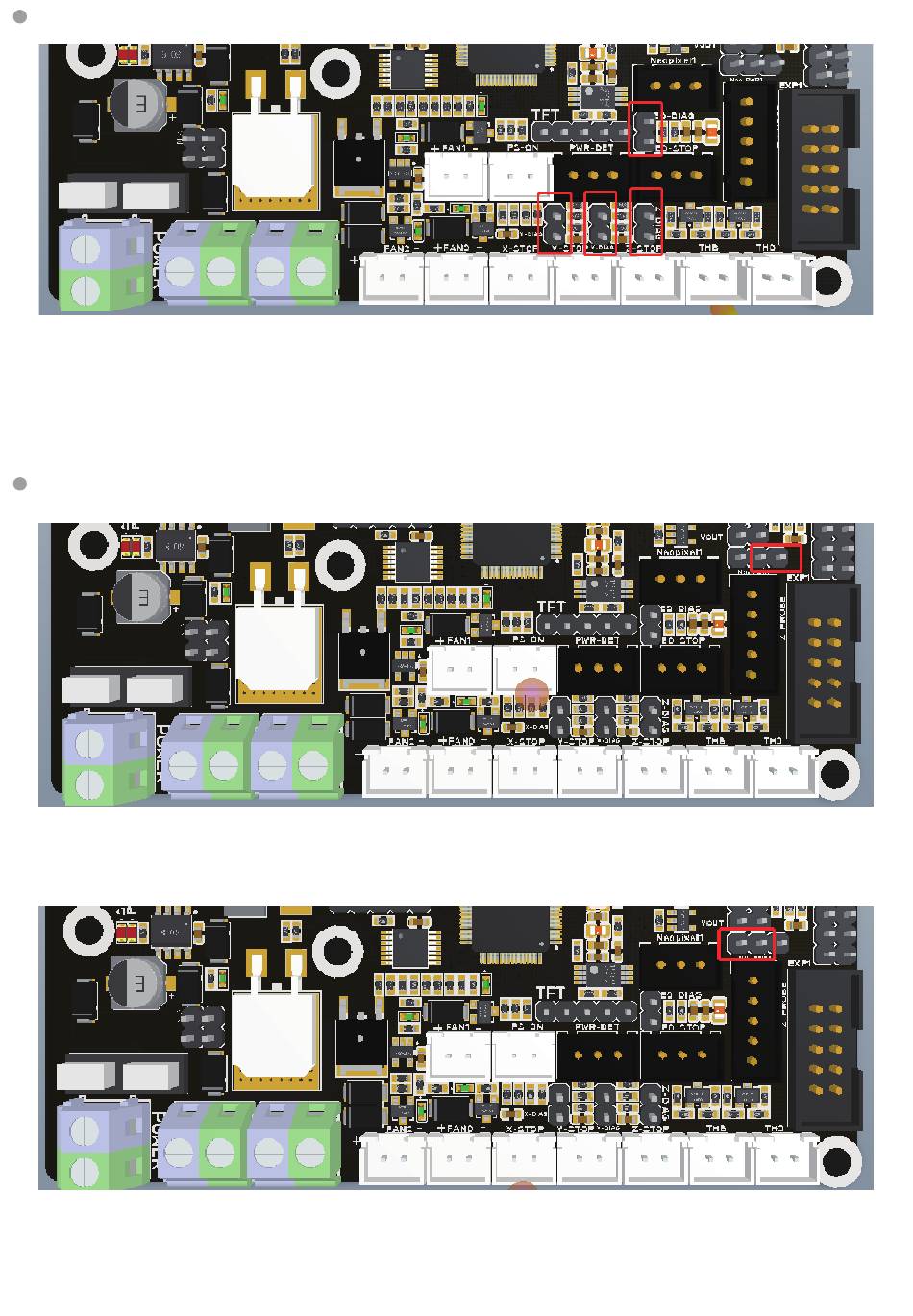

As shown, connect the corresponding axes with the jump caps to choose
Sensorless homing function
NOTE:
If you choose this function, you cannot use external ENDSTOP!
5V power supply for BLtouch, TFT, RGB interfaces
1、 To use the onboard 5V PSU, short the pins shown in the above image using a jumper.
2、 To use an external BIGTREETECH DCDC5V V1.0 module, short the pins shown in the above
image using a jumper.
