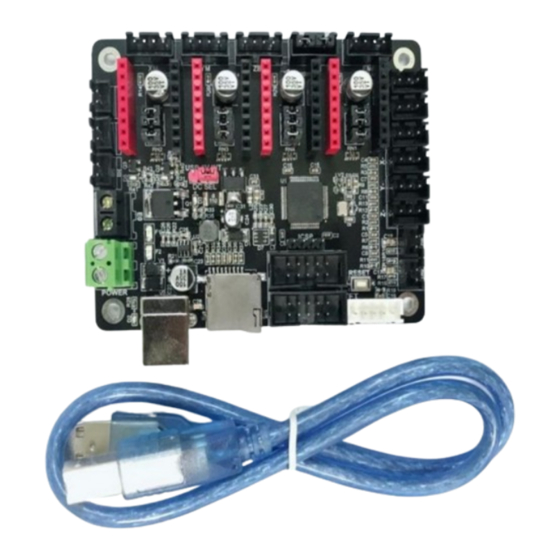

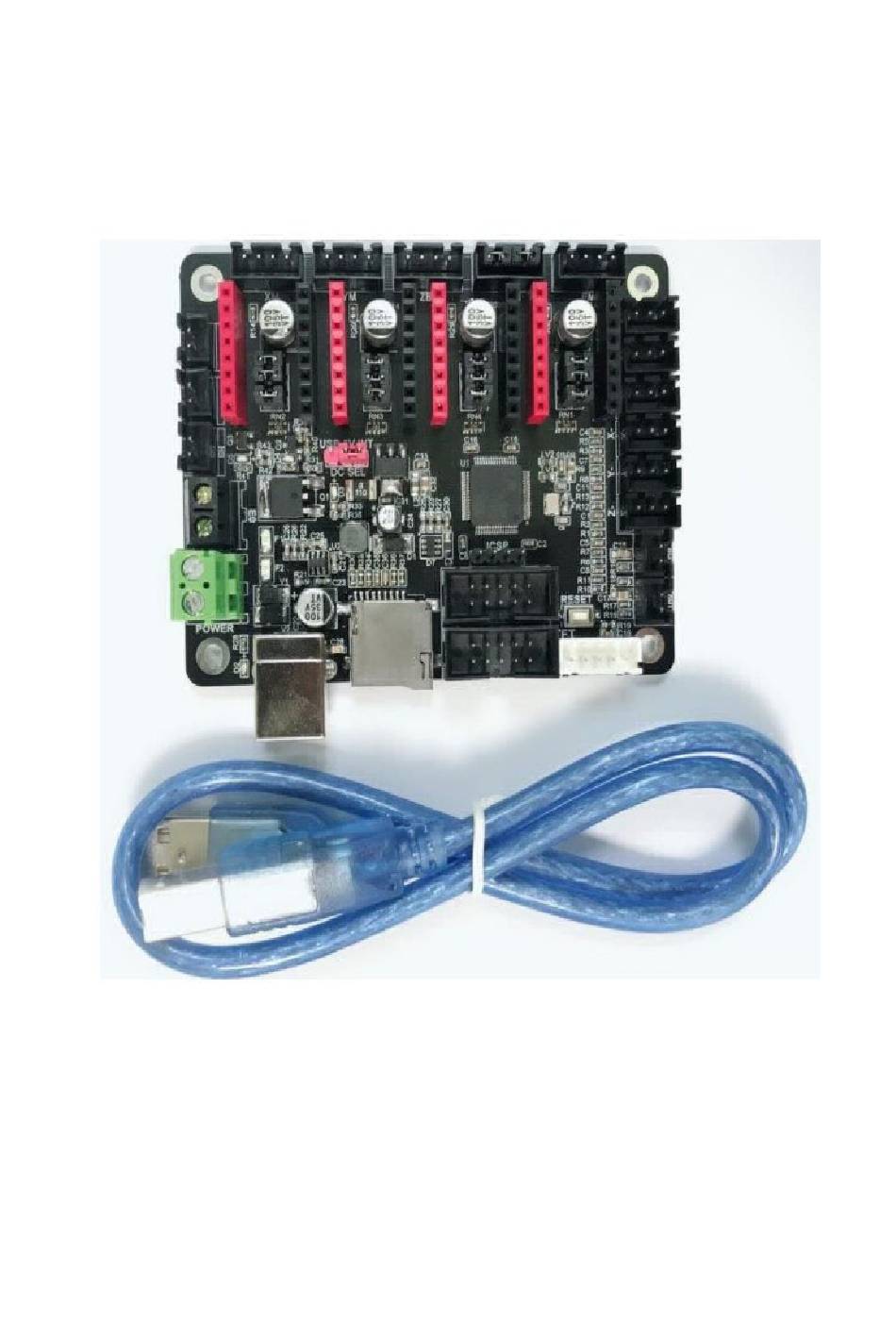

- Page 1 BIGTREETECH SKR mini V1.1 Motherboard Manual...
- Page 2 一、SKR Motherboard Introduction BIGTREETECH SKR-mini-V1.1 motherboard is a very cost-effective 3D printer motherboard, designed by Shenzhen BIQU Technology Co. Ltd. 3D printing team, especially suitable for small printers. 1. SKR motherboard features: 1) ARM Cortex-M3 series STM32F103RCT6 chip with 32-bit CPU 72MHz;...
- Page 3 三、SKR Motherboard and PC Communication The SKR motherboard connects with the PC via the [USB] interface and requires a driver to be used. It can be installed by downloading driver file named mapleDrv https://github.com/bigtreetech. 四、SKR Motherboard Interface Description 1. SKR motherboard size chart...
- Page 4 2. SKR motherboard wiring diagram...
- Page 5 1. SKR motherboard firmware acquisition method Ask customer service or technical staff to obtain; Log into our open source website for downloading: https://github.com/bigtreetech 2. SKR motherboard firmware update method Copy the firmware.bin file to the SD card root directory in the compiled firmware package.
