- Page 1 SKR MINI E3 V1.0 User Manual SHENZHEN BIGTREE TECHNOLOGY CO., LTD. BIGTREE-TECH.COM VERSION 1.0 AUTHOR: MERT CAPKIN...
-
Page 2: Product Introduction

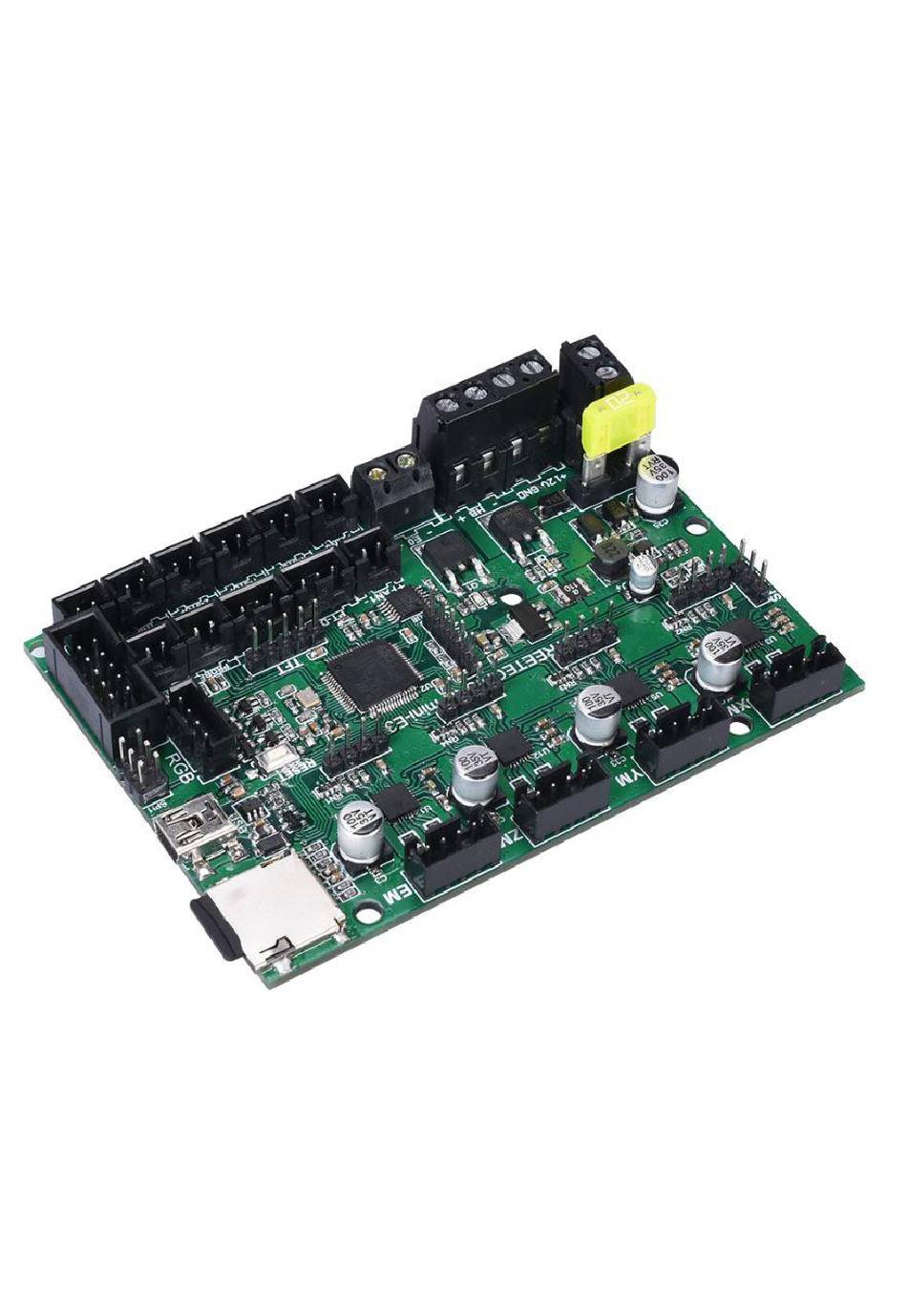

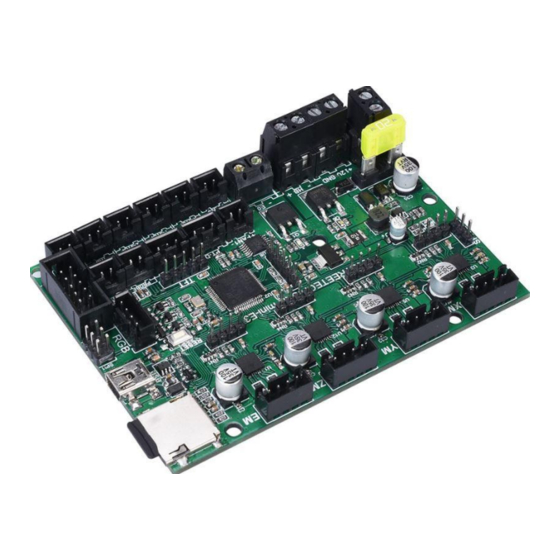

Product Introduction BigTree Technology Co., Ltd. developed this high performance and customizable 3D printer controller board to provide a direct replacement for the Ender 3 which has more options. Main Features 1) The board is controlled by a STMicroelectronics ARM Cortex M3 32-bit STM32F103RCT6 MCU. - Page 3 Dimensions...
- Page 4 Wiring...
- Page 5 Pins...
- Page 6 After the driver installation is completed, the board can be identified for data transmission. If the installation fails, you can download the needed driver from here: https://github.com/bigtreetech/BIGTREETECH-SKR-MINI- V1.1/tree/master/firmware/mapleDrv-USBdriver Download the file named mapleDrv for installation. After the driver installation is completed, open the ”Device Manager”...
- Page 7 For BLTouch use the ‘PROBE’ and ‘SERVOS’ pin to connect. 4) Power failure module To make use of the power failure detection feature you need a BIGTREETECH MINI UPS V1.0 module. See the user manual for the power failure module for more information. You can find it here: http://github.com/bigtreetech...
- Page 8 5) Automatic shutdown after print To make use of the automatic shutdown feature you need a BIGTREETECH Relay V1.0 module. See the user manual for the module for more information. You can find it here: http://github.com/bigtreetech Firmware By default there will be a firmware installed on the board, which is optimized for Ender 3.
- Page 9 4) At the moment printing from a USB flash drive is not supported. 5) SKR MINI E3 V1.0 is a motherboard designed specifically for the Ender 3D printer. If you want to use another machine, please refer to the corresponding electrical parameters of Ender3 (such as heated bed power, extruder cartridge power, etc.).
