Summary of Contents for BIGTREETECH SKR E3 DIP V1.0

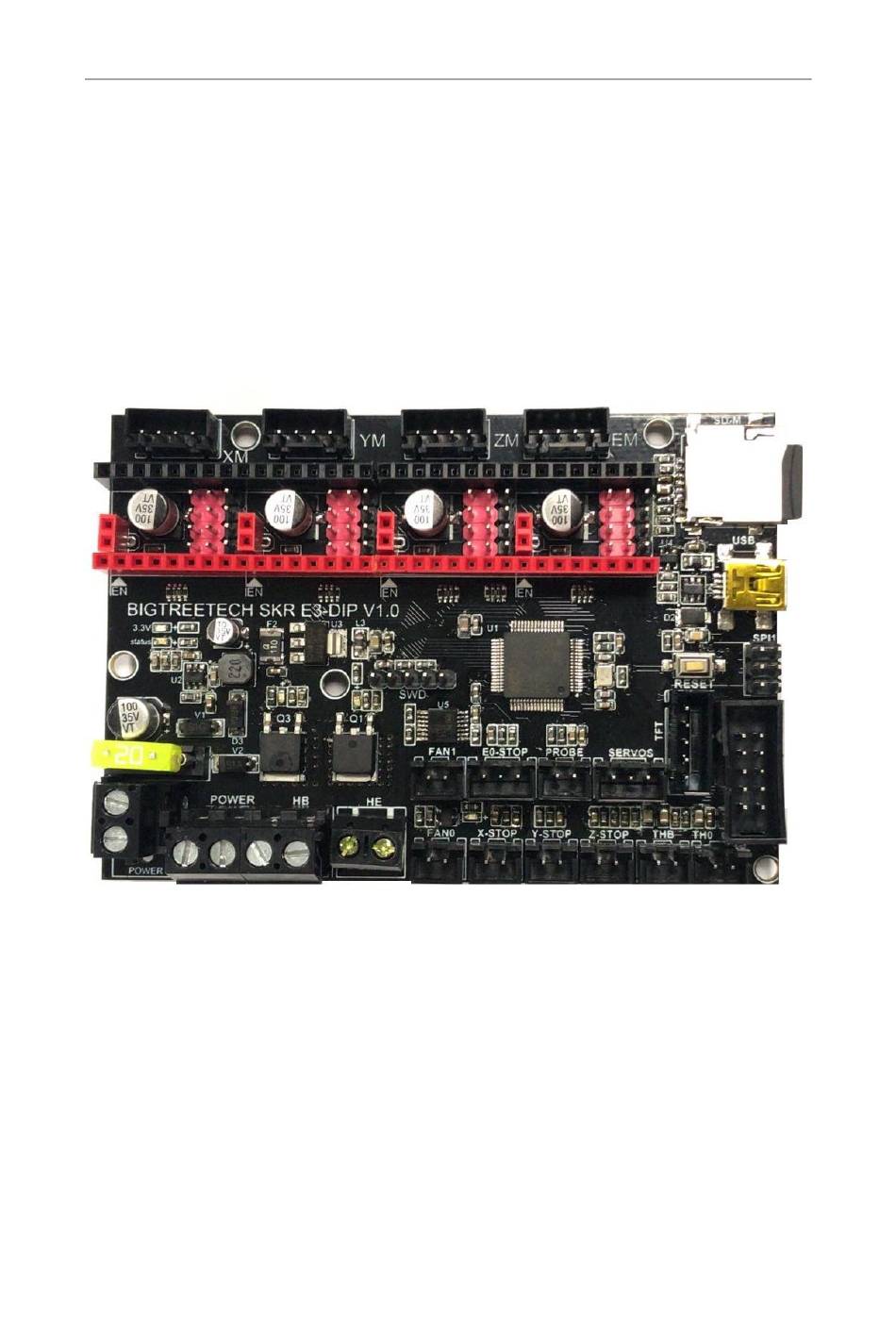

- Page 1 Shenzhen BIGTREE technology co., LTD. BIG TREE TECH SKR E3 DIP V1.0 User Manual SHENZHEN BIGTREE TECHNOLOGY CO., LTD. BIGTREE-TECH.COM VERSION 1.0 AUTHOR: MERT CAPKIN...
-
Page 2: Product Introduction
Shenzhen BIGTREE technology co., LTD. BIG TREE TECH Product Introduction BigTree Technology Co., Ltd. developed this high performance and customizable 3D printer controller board to provide a direct replacement for the Ender 3 which has more options. Main Features 1) The board is controlled by a STMicroelectronics ARM Cortex M3 32-bit STM32F103RCT6 MCU. - Page 3 Shenzhen BIGTREE technology co., LTD. BIG TREE TECH Dimensions...
- Page 4 Shenzhen BIGTREE technology co., LTD. BIG TREE TECH Wiring runout sensor...
- Page 5 Shenzhen BIGTREE technology co., LTD. BIG TREE TECH Pins...
- Page 6 After the driver installation is completed, the board can be identified for data transmission. If the installation fails, you can download the needed driver from here: https://github.com/bigtreetech/BIGTREETECH-SKR-MINI-V1.1/tree/master/firmware/ma pleDrv-USBdriver Download the file named mapleDrv for installation. After the driver installation is completed, open the ”Device Manager”...
- Page 7 Shenzhen BIGTREE technology co., LTD. BIG TREE TECH Stepper driver and peripherals configuration 1) STEP/DIR mode Set the jumpers according to your microstepping settings. 2) SPI Mode Set the jumpers like in the picture above. 3) UART mode Set the jumpers like in the picture above.
- Page 8 Shenzhen BIGTREE technology co., LTD. BIG TREE TECH 4) BL Touch For BL Touch use the ‘PROBE’ and ‘SERVOS’ pin to connect. 5) Power failure module See the user manual for the power failure module for more information. You can find it here: http://github.com/bigtreetech...
- Page 9 Shenzhen BIGTREE technology co., LTD. BIG TREE TECH 6) Automatic shutdown after print To make use of the automatic shutdown feature you need a BIGTREETECH Relay V1.0 module. See the user manual for the module for more information. You can find it here: http://github.com/bigtreetech Firmware By default there will be a firmware installed on the board, which is optimized for Ender 3.
- Page 10 4) At the moment printing from a USB flash drive is not supported. 5) SKR E3 DIP V1.0 is a motherboard designed specifically for the Ender 3 printer. If you want to use another machine, please refer to the corresponding electrical parameters of Ender3 (such as heated bed power, extruder cartridge power, etc.).
