SKR MINI MZ V1.0 User Guide
Shenzhen BIGTREE Technology co., LTD.
Shenzhen BIGTREE Technology
co., LTD.
BIGTREETECH
SKR MINI MZ V1.0
User Guide
【Please read the instruction manual before
use】
Shenzhen Big Tree Technology CO.,LTD . 1/9 Website：www.BIGTREE-TECH.com
Advertisement
Related Manuals for BIGTREETECH SKR MINI MZ V1.0
Summary of Contents for BIGTREETECH SKR MINI MZ V1.0
- Page 1 SKR MINI MZ V1.0 User Guide Shenzhen BIGTREE Technology co., LTD. Shenzhen BIGTREE Technology co., LTD. BIGTREETECH SKR MINI MZ V1.0 User Guide 【Please read the instruction manual before use】 Shenzhen Big Tree Technology CO.,LTD . 1/9 Website：www.BIGTREE-TECH.com...

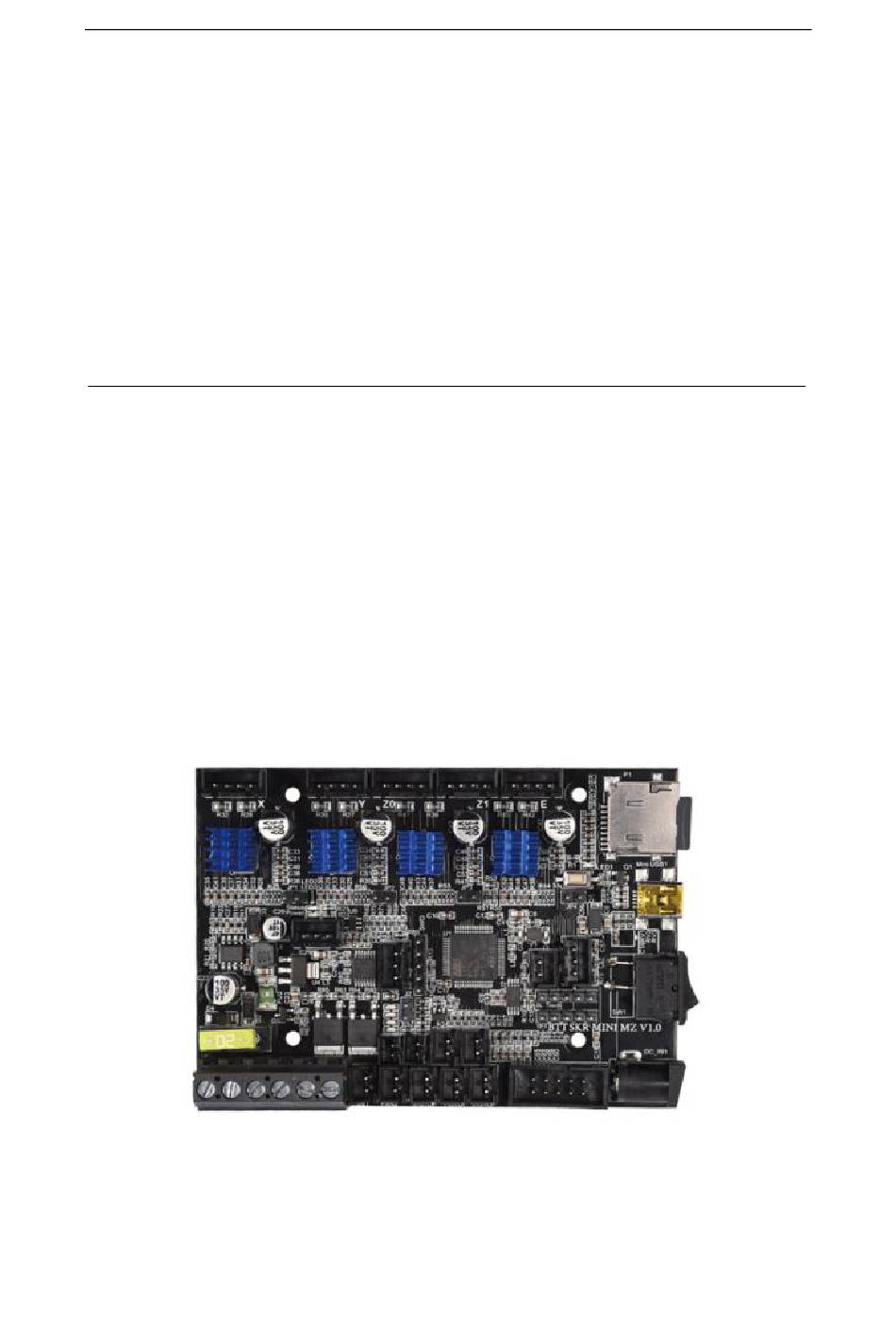

- Page 2 SKR MINI MZ V1.0 User Guide Shenzhen BIGTREE Technology co., LTD. Ⅰ.Product Introduction: BIGTREETECH SKR MINI MZ V1.0 is a 32-bit 3D printer motherboard launched by the 3D printing team of Shenzhen Big Tree Technology CO., LTD. to upgrade your MEGA Zero 3D printer.
- Page 3 SKR MINI MZ V1.0 User Guide Shenzhen BIGTREE Technology co., LTD. 13）Adopt DC5.0 socket power input 12）Reserve BLTouch, PH2.0 normally open fan, hot bed output, switch power input, resume printing while power off ,filament break detection , and automatic shutdown after printing port；...
- Page 4 SKR MINI MZ V1.0 User Guide Shenzhen BIGTREE Technology co., LTD. Ⅱ.Motherboard Power Wiring 1.DC Power supply 2.Switch power supply can only selected one of the two methods and cannot be connected at the same time. Before wiring, be sure to disconnect the 220V power supply and...
- Page 5 SKR MINI MZ V1.0 User Guide Shenzhen BIGTREE Technology co., LTD. Ⅲ.Motherboard and Computer Connection After the motherboard is connected to the computer through USB cable, the computer will automatically install the driver. After the driver is installed, the motherboard can be recognized for data transmission.
- Page 6 SKR MINI MZ V1.0 User Guide Shenzhen BIGTREE Technology co., LTD. Ⅳ.Motherboard and Interface Instruction 1.Motherboard Size Diagram 2.Motherboard Wiring Diagram 6 / 9...
- Page 7 SKR MINI MZ V1.0 User Guide Shenzhen BIGTREE Technology co., LTD. 3.Motherboard Pin Diagram For details, please refer to Pin file. Ⅴ.Motherboard jumper description 1）If you need to use the Filament Break Detection function, you need to connect the following 4 positions with a jumper cap：...
- Page 8 2）If you need to enable BOOT mode, please use jumper caps to connect the following positions： Ⅵ.The firmware description of Motherboard 1）At present, the SKR MINI MZ V1.0 motherboard only supports the use of our company open source Marlin 2.0 firmware, which can be found on our open source website： https://github.com/bigtreetech?tab=repositories Find the corresponding motherboard to download 2）...
- Page 9 7.The MEGA Zero printer does not have a heat bed function for the time being, but our SKR MINI MZ V1.0 has a reserved heat bed function. If you need to use heat bed, please use a switching power supply (ordinary DC power supply cannot provide the required power for the hot bed).
