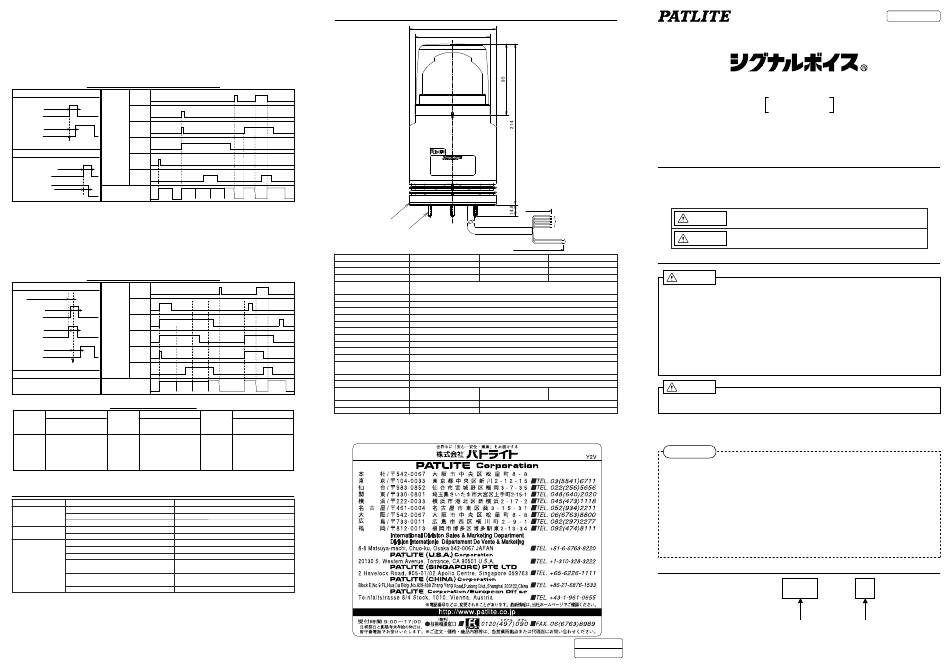

Patlite RFV Instruction Manual

6‑6‑1 Bit Entry Mode
●A maximum of 4 messages can be played.
● In case there are two or more of CH1 ‑ CH4 and the common line are short circuited, the message of a CH with a
larger number is played.
Signal entry priority order: STOP > CH4 > CH3 > CH2 > CH1
●In the case of operating this product in the power turning on method, it takes about 1 second before it starts playing a
message.
●For the timing chart in the case of operating this product in the signal line control method, see the table below.
Signal entry timing chart table (Bit entry)
STOP
Entry timing (CH)
(Blue)
Entry holding time
:100ms or longer
CH4
CH entry 2
(Light green)
Time lag before playback
CH3
: About 200ms
CH entry 1
(Pink)
Entry signal
Entry established
CH2
After the establishment of entry, CH entry is not
accepted until the playback is completed.
(Yellow)
Entry timing (STOP)
CH1
Entry holding time
(Sky blue)
:100ms or longer
STOP Entry
Sound reducti o n
(purpl e )
Sound playback
Playback CH No.
Time lag before playback
No.1 No.4
: About 200ms
6‑6‑2 Binary Entry Mode
●A maximum of 15 messages can be played.
●A message corresponding to the state of short circuit between a signal line among CH1 ‑ CH4
and the common line is played. (See the binary code table)
●In the case of operating this product in the power turning on method, it takes about 1 second before
it starts playing a message.
●For the timing chart in the case of operating this product in the signal line control method, see the
table below.
Signal entry timing chart table (Binary entry)
STOP
Entry timing (CH)
(Blue)
Entry establishing time
: About 50ms
CH4
Entry holding time
:100ms or longer
(Light green)
CH entry 2
CH3
Entry holding time (Pink)
:100ms or longer
Entry signal
CH entry 1
CH2
(Yellow)
Time lag before playback
: About 200ms CH1
Sound playback
(Sky blue)
Entry established
After the establishment of entry, CH entry is not
Sound reducti o n
accepted until the playback is completed.
Entry timing (STOP) (purpl e )
It is the same with the bit entry.
Playback CH No.
No.15 No.6
See Section "6‑6‑1 Bit Entry."
Binary code table
Entry contact Entry contact
Playback Playback
1 2 3 4 1 2 3 4
CH No. CH No.
(Sky blue) (Yellow) (Pink) (Li g ht green) (Sky blue) (Yellow) (Pink) (Li g ht green)
1 1 0 0 0 6 0 1 1 0
2 0 1 0 0 7 1 1 1 0
3 1 1 0 0 8 0 0 0 1
4 0 0 1 0 9 1 0 0 1
5 1 0 1 0 10 0 1 0 1
※The "1" in the table refers to the short‑circuit between the signal line and the common line.
7. Before You Request a Repair
Symptom Points to be checked
Is power applied to the product? Confirm the wiring. (5. How to Perform Wiring)
It does not produce sound
Are the common line and the signal lineorrectly wired? Confirm the wiring. (5. How to Perform Wiring)
The rotating light does not operate
Is the volume control set to minimum? Adjust the volume. (6‑3. Adjusting the Volume)
Are the common line and the signal line correctly wired? Confirm the wiring. (5. How to Perform Wiring)
It plays a different CH
Is the operation mode correctly selected? Confirm the switch. (6‑2. Operation Mode)
Is power applied to the product? Confirm the wiring. (5. How to Perform Wiring)
Is the SD card correctly inserted? Confirm the insertion direction. (6‑6. Rewriting the Message)
Is the data correctly stored in the SD card? Confirm the data. (Instruction Manual for FV‑Win)
Rewriting the sound Is the total length of rewriting the voice message longer Choose a lower bit rate for the voice message,
is not possible
than 64 seconds? (In the case of 64kbit/s, Fs=44.1kHz) or edit or delete the data.
When the volume control is set to minimum, the operating sound
Is the volume control set to minimum?
cannot be heard. Adjust the volume. (6‑3. Adjusting the Volume)
Is the operation mode correctly selected? Confirm the switch (6‑2. Operation Mode)
●If the product does not operate correctly even after it is properly installed and handled,
contact a branch office or the technical support printed on the last page.
8. Specifications
【External view】(mm)
Sound reducti o n Sound reduction
No.2 No.2 No.3
No.2 No.3
Rubber mounting
Model
Rated Voltage
Voltage Range
Power Consumption
Sound Pressure Level
Sound Reduction Level
Audio file
Maximum length of time for playback
CH entry method
Starting Time
Light source for the rotating light
Brightness
Number of flashes
Operating temperature range
Relative Humidity
Mounting Direction
Protection Level
Sound reducti o n Sound r educti o n Sound reducti o n Insulation resistance
No.3
No.6 No.4 No.2
Withstand voltage
Resistance to Vibration
Mass
Entry contact
●Please note that we will not be held responsible for the failure or damage caused by handling the product in ways not observing the
Playback
1 2 3 4
warnings or cautions contained in this document.
CH No.
(Sky blue) (Yellow) (Pink) (Li g ht green)
●Please note also that the contents in this document may be changed for improvement without notification in advance.
11 1 1 0 1
12 0 0 1 1
13 1 0 1 1
14 0 1 1 1
15 1 1 1 1
How to recover (Reference item)
□115
※See Section "4. How to Install" for
φ100
the dimensional drawing for installation.
About 400
from the outlet
Signal line
Mounting foot (3‑M5)
About 450 from the outlet
RFV‑24F‑□ RFV‑100F‑□
24V DC 100V AC
24V±10% 100V±10%
Maximum 18W Maximum 16W
Maximum 95dB (at a distance of 1m in front ‑0dB when a 1kHz sine‑wave is produced) Adjustment of volume is possible.
※The sound pressure level may be lower depending on the voice messages and the usage environments.
20dB±2dB ( when a 1kHz sine wave is produced )
MPEG1‑Audio Layer Ⅲ (MP3)
Total of 64 seconds ( In the case of 64kbit/s 、Fs=44.1kHz )
Bit entry/Binary entry (They can be switched over)
Power turning on method: 1s or less Signal line start entry method: 300ms or less
LED
Red（R） 3000cd / Yellow（Y） 2500cd
120 ± 25 times/minute
‑10 〜 50 ℃
RH 85% or lower (Non‑condensing)
Indoor : Normal and reverse direction are possible (When it might be splashed with water, use the normal direction only)
Outdoor : Normal direction only
IP54 (Normal direction installation only)
500V DC 1MΩ or higher (Between the live metal part and the dead metal part)
500V AC for 1 minute 1000V AC for 1 minute 1500V AC for 1 minute
(Between the l i v e metal part and the dead metal part) (Between the l i v e metal part and the dead metal part) (Between the l i v e metal part and the dead metal part)
2 2
45m/s 19.6m/s
0.9kg±10% 1.15kg±10%

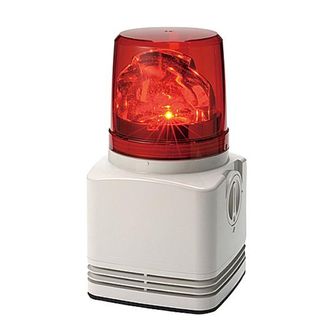

Speech Synthesis LED Rotating Light
We thank you for purchasing PATLITE Signal Voice . Before you start using the product, please read this
instruction manual carefully to use the product correctly. Please store this document in a safe place.
Be sure to read this document again when you are about to perform tasks such as maintenance and repair.
And if you have any questions, contact a branch office or the technical support printed on the last page.
Safety Precautions
The precautions which must be observed to prevent damage to the person using the product,
to people around it, or to property are described in a manner shown below
■The seriousness of injury or damage caused by ignoring the indication and using the product in a
wrong way is categorized with the indications below and descriptions are added to each of them.
The sections with this indication contain "items which could cause
Warning
death or serious injury" if ignored.
The sections with this indication contain "items which could cause
Caution
injury or property damage only" if ignored.
Power source line
1. Cautions Which Must Be Observed for Safety Use
RFV‑220F‑□
220V AC
220V±10%
Warning
Maximum 16W
●Be sure to turn the power off before wiring or installing the product. Failure to do so may cause
electric shock.
●Do not disassemble or convert the product. It may cause fire or electric shock. For repair or
inspection of the internal parts of the product, contact a branch office or the technical support
printed on the last page.
●Take care to perform the wiring correctly. If the wiring is incorrect, the internal circuit may be
damaged by fire, and it may cause fire.
●Be sure to use this product within the allowable range of voltage specified for the power source.
Failure to do so may cause fire or damage to the product.
●Be sure to have specialists perform installation tasks that require construction work.
Failure to do so may cause electric shock, fire, or falling.
Caution
●To protect power source circuit and internal circuit of the product, be sure to install external
fuse.
Failures caused by using the product in ways not observing the Warnings and Cautions,
by disassembling or converting the product, or by natural disaster are not covered under warranty.
And do not use the product in ways other than the ways described in this document.
Other precautions
●Be sure to use the product with the cover on the side of the case closed. Water or dust entering the
product may cause failure.
●Use the product in an environment where there are no high‑intensity radiowaves or inductive noise.
Failure to do so may cause outputting of noise from the speaker.
●Use the product in an environment where there is no corrosive gas. Failure to do so may cause
malfunction.
●Before starting work on the product, discharge static electricity from your body to prevent
electrostatic breakdown. Static electricity can be discharged by touching another grounded metal
part with the bare hands.
●In case the product is used for security purposes in which safety is emphasized, be sure to
perform daily maintenance, and design a system that is capable of tackling the occurrence of unlikely
events such as malfunction or failure.
2. Model Indicating Format
RFV ‑ 100 F ‑ R
4206‑A
'08.01.NHI
4206‑A
V95100112
Instruction Manual
TYPE : RFV
■Rated voltage ■Color of rotating light
24 : 24V DC R : Red
100: 100V AC Y : Yellow
220: 220V AC
