Parts List
1
Driver / left side bar
1
Passenger / right side bar
1
Driver / left front bracket
1
Passenger / right front bracket
1
Driver / left rear bracket
1
Passenger / right rear bracket
24
Hex bolt, 10mm x 35mm
8
Hex nut, 10mm
24
Lock washer, 10mm
32
Flat washer,
10mm ID x 30mm OD x 1.5mm
8
Clip nut, 10mm
Tools Required
Ratchet
17mm socket
Level
Tape measure
Wrench, 17mm
PAGE 1 • S223015-INS-RA • 800.798.0813 • NEED ASSISTANCE?
S223015
INSTALLATION MANUAL
Level of Difficulty
Easy

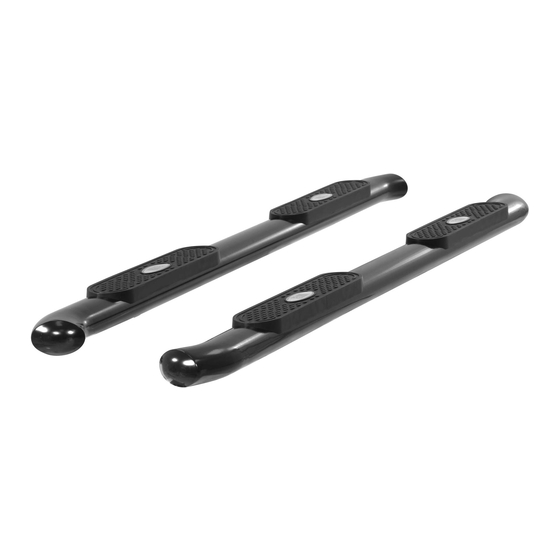

Product Image
Brackets and Hardware
Notes and Maintenance
Before you begin installation, read all instructions thoroughly
Proper tools will improve the quality of installation and reduce the time required
To protect the product, wax after installing. Regular waxing is recommended to
add a protective layer over the finish. Do not use any type of polish or wax that may
contain abrasives that could damage the finish.
For gloss black finishes, mild soap may be used to clean the product.
Scan
for helpful
install tips
Front
• ARIESAUTOMOTIVE.COM
Rear
Advertisement
Table of Contents
Related Manuals for Aries S223015
Summary of Contents for Aries S223015
- Page 1 Do not use any type of polish or wax that may contain abrasives that could damage the finish. For gloss black finishes, mild soap may be used to clean the product. • ARIESAUTOMOTIVE.COM PAGE 1 • S223015-INS-RA • 800.798.0813 • NEED ASSISTANCE?
- Page 2 Lift the bracket into place and attach with a 10mm hex bolt, locking washer and flat washer into the rocker panel and mounting tabs. Snug the hardware, but do not fully tighten. ARIESAUTOMOTIVE.COM • NEED ASSISTANCE? • 800.798.0813 • S223015-INS-RA • PAGE 2...
- Page 3 Lift the new side bar into place and attach with a 10mm bolt, locking washer and flat washer. Step 8 Check for level and adjust if necessary. Once aligned, tighten all hardware. • ARIESAUTOMOTIVE.COM PAGE 3 • S223015-INS-RA • 800.798.0813 • NEED ASSISTANCE?
- Page 4 To protect your investment, we recommend you apply a layer of nonabrasive wax. Congratulation on the installation of your brand new ARIES 4" oval side bars. ARIESAUTOMOTIVE.COM • NEED ASSISTANCE? • 800.798.0813 • S223015-INS-RA • PAGE 4...
