Aries S223015-2 Installation Manual

INSTALLATION MANUAL

Parts List

1 Driver / left side bar
1 Passenger / right side bar
1 Driver / left front bracket
1 Passenger / right front bracket
1 Driver / left rear bracket
1 Passenger / right rear bracket
24 Hex bolt, M10 x 35mm
8 Hex nut, M10
24 Flat washer,
M10 x 30mm OD x 1.5mm
8 Flat washer,
M10 x 22mm OD x 2mm
24 Lock washer, M10
8 Clip nut, M10

Tools Required

Ratchet Torque wrench
Tape measure Wrench, 17mm
Socket, 17mm Level

Torque Specifications

M6 bolt 3 ft.-lbs.
M8 bolt 7 ft.-lbs.
M10 bolt 16 ft.-lbs.
M12 bolt 28 ft.-lbs.
1/4" bolt 3 ft.-lbs.
5/16" bolt 7 ft.-lbs.
3/8" bolt 16 ft.-lbs.
7/16" bolt 20 ft.-lbs.
1/2" bolt 28 ft.-lbs.
Use above torque setting
unless otherwise noted
Level of Difficulty
Easy

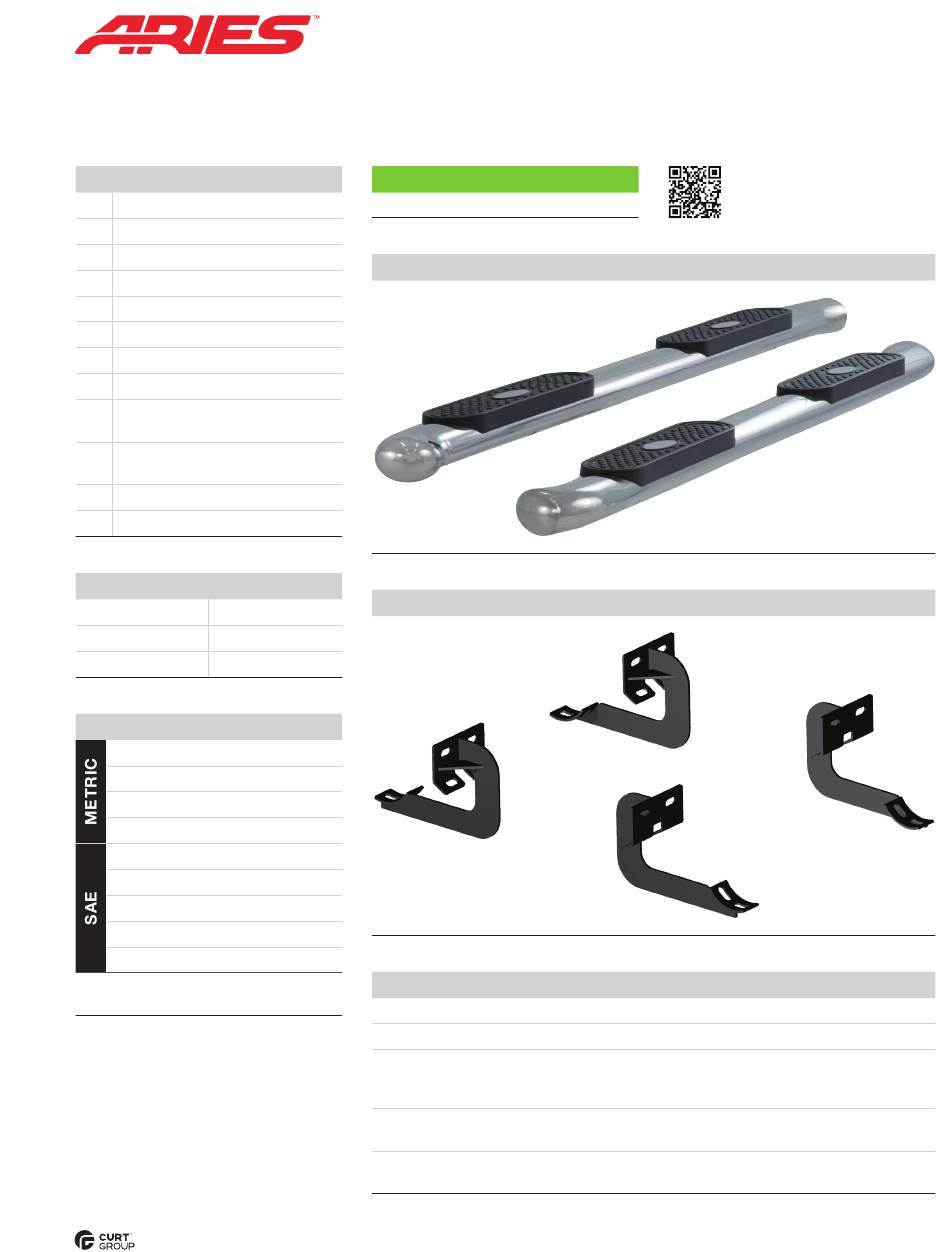

Product Image
Brackets
Notes and Maintenance
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
To protect the product, wax after installing. Regular waxing is recommended to
add a protective layer over the finish. Do not use any type of polish or wax that may
contain abrasives that could damage the finish.
For stainless steel and aluminum, polish may be used to clear small scratches
and scuffs on the finish. Mild soap may be used also to clean the product.
Refer to the table to the left when securing hardware during the
installation process to help prevent damage to the product or vehicle.
PAGE 1 • S223015-2-INS-RA • 800.798.0813 • NEED ASSISTANCE?
S223015-2
Scan
for helpful
install tips
Front
• ARIESAUTOMOTIVE.COM
Rear
