INSTALLATION MANUAL
Parts List
1
Driver / left side bar
1
Passenger / right side bar
2
Mounting bracket,
driver / left
2
Mounting bracket,
passenger / right
16
Hex bolt, M8 x 35mm
8
Clip nut, M8
24
Flat washer, M8
16
Lock washer, M8
8
Hex nut, M8
8
Hex bolt, M10 x 25mm
8
Flat washer, M10
8
Lock washer, M10
Torque Specifications
M6 bolt
3 ft.-lbs.
M8 bolt
7 ft.-lbs.
M10 bolt
16 ft.-lbs.
M12 bolt
28 ft.-lbs.
1/4" bolt
3 ft.-lbs.
5/16" bolt
7 ft.-lbs.
3/8" bolt
16 ft.-lbs.
7/16" bolt
20 ft.-lbs.
1/2" bolt
28 ft.-lbs.
Level of Difficulty
Easy

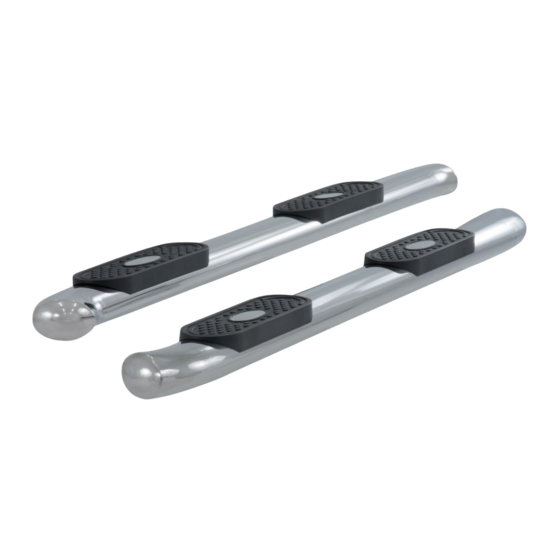

Product Image
Notes and Maintenance
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
For stainless steel and aluminum, polish may be used to clear small scratches
and scuffs on the finish. Mild soap may be used also to clean the product.
Refer to the table to the left when securing hardware during the
installation process to help prevent damage to the product or vehicle.
