Parts List
1
Driver / left side bar
1
Passenger / right side bar
4
Mounting bracket, universal
12
Flat washer, M8
12
Flat washer, M8 nylon
12
Nylock nut, M8 x 1.25, CL8.8
8
Flat washer, 10mm
8
Lock washer, 10mm
8
Hex bolt, 10mm
Tools Required
Ratchet
Level
Socket, 13mm
Socket, 16mm
PAGE 1 • S223044-INS-RA • 800.798.0813 • NEED ASSISTANCE?
S223044
INSTALLATION MANUAL
Level of Difficulty
Easy

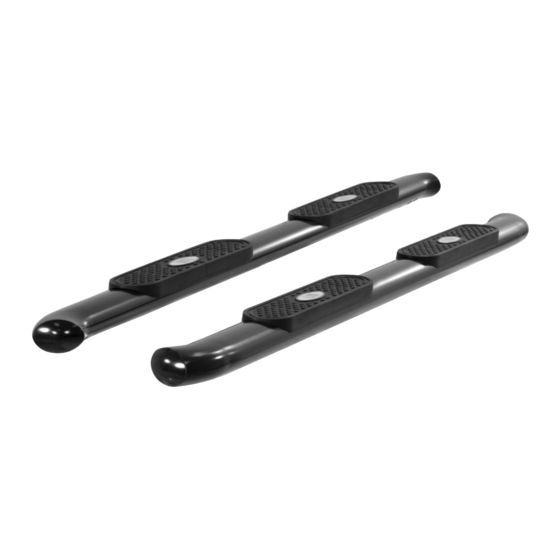

Product Image
Brackets
Notes and Maintenance
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
To protect the product, wax after installing. Regular waxing is recommended to
add a protective layer over the finish. Do not use any type of polish or wax that may
contain abrasives that could damage the finish.
For gloss black finishes, mild soap may be used to clean the product.
Scan
for helpful
install tips
Front
• ARIESAUTOMOTIVE.COM
Rear
Advertisement
Table of Contents
Related Manuals for Aries S223044
Summary of Contents for Aries S223044
- Page 1 Do not use any type of polish or wax that may contain abrasives that could damage the finish. For gloss black finishes, mild soap may be used to clean the product. • ARIESAUTOMOTIVE.COM PAGE 1 • S223044-INS-RA • 800.798.0813 • NEED ASSISTANCE?
- Page 2 Step 4 Add an 8mm flat washer, and secure with a nylock nut. Snug the hardware with a 13mm socket, but do not fully tighten. ARIESAUTOMOTIVE.COM • NEED ASSISTANCE? • 800.798.0813 • S223044-INS-RA • PAGE 2...
- Page 3 To protect your investment, we recommend you apply a layer of nonabrasive wax. Congratulations on the installation of your brand new Aries 4" oval side bars. • ARIESAUTOMOTIVE.COM PAGE 3 • S223044-INS-RA • 800.798.0813 • NEED ASSISTANCE?
