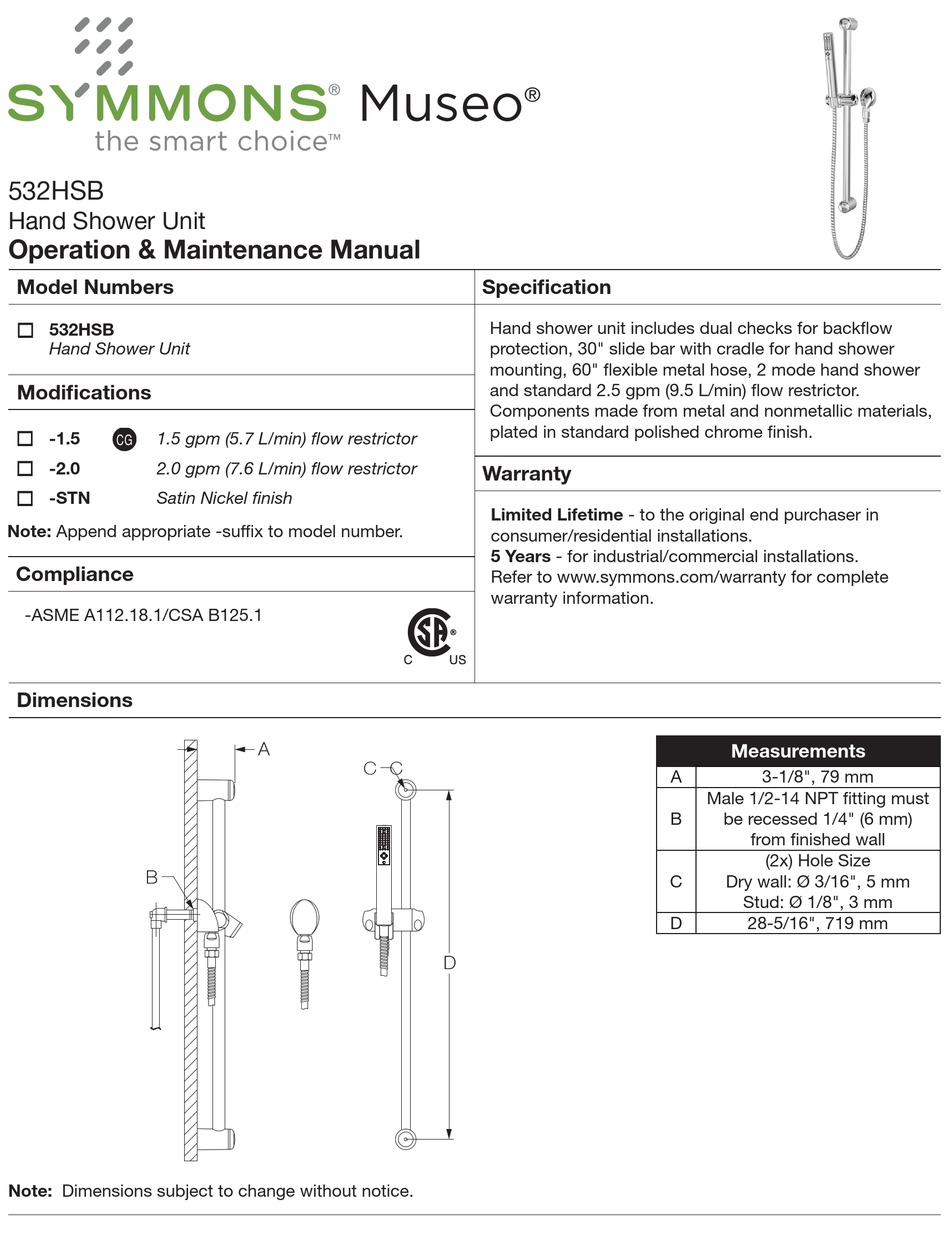

532HSB
Hand Shower Unit
Operation & Maintenance Manual
Model Numbers
 532HSB
Hand Shower Unit
Modifications
 -1.5 CG 1.5 gpm (5.7 L/min) flow restrictor
-2.0
 2.0 gpm (7.6 L/min) flow restrictor
 -STN Satin Nickel finish
Note: Append appropriate -suffix to model number.
Compliance
-ASME A112.18.1/CSA B125.1
Dimensions
B B
Note: Dimensions subject to change without notice.
Museo
A A
C C
®

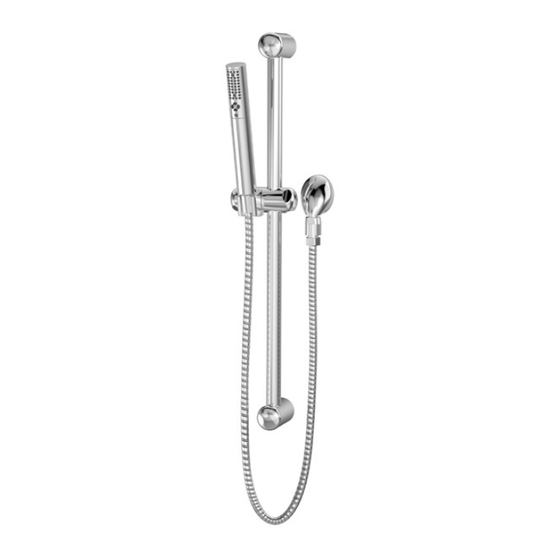

Specification
Hand shower unit includes dual checks for backflow
protection, 30" slide bar with cradle for hand shower
mounting, 60" flexible metal hose, 2 mode hand shower
and standard 2.5 gpm (9.5 L/min) flow restrictor.
Components made from metal and nonmetallic materials,
plated in standard polished chrome finish.
Warranty
Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
D D
Measurements
A 3-1/8", 79 mm
Male 1/2-14 NPT fitting must
B be recessed 1/4" (6 mm)
from finished wall
(2x) Hole Size
C Dry wall: Ø 3/16", 5 mm
Stud: Ø 1/8", 3 mm
D 28-5/16", 719 mm
