SSV50108MS, SSV50108MSDW, SSPV50108MS, &

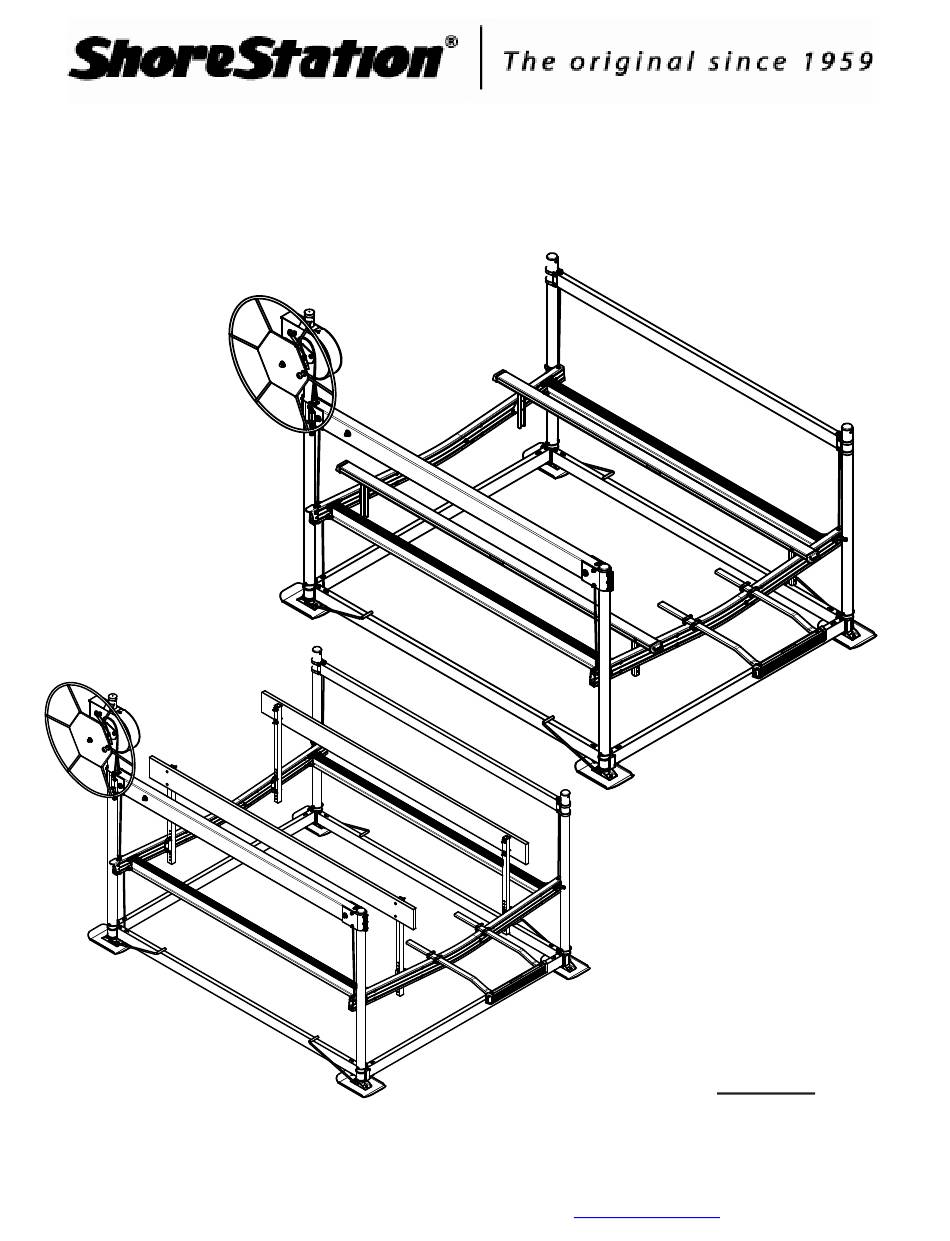

Your SHORESTATION Aluminum Boat Lift is designed to give years of dependable service. Following the
enclosed instructions will insure you that your lift is properly assembled.
SSPV50108MS
Midwest Industries, Inc.
Page 1 of 43
SSPV50108MSDW
SSV50108MS
Ida Grove, IA 51445
ATTENTION:
This Boat Lift uses
stainless steel fasteners. ALWAYS apply
anti-seize to fastener threads before
assembly to prevent galling or seizing.
800-859-3028
www.shorestation.com
ACCESSORY
10/20/2009
0004134
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ShoreStation SSV50108MS
Summary of Contents for ShoreStation SSV50108MS
- Page 1 ACCESSORY SSV50108MS, SSV50108MSDW, SSPV50108MS, & SSPV50108MSDW Your SHORESTATION Aluminum Boat Lift is designed to give years of dependable service. Following the enclosed instructions will insure you that your lift is properly assembled. SSV50108MS SSPV50108MS ATTENTION: This Boat Lift uses stainless steel fasteners. ALWAYS apply anti-seize to fastener threads before assembly to prevent galling or seizing.
- Page 2 Pontoon Kit V Alum Cradle Lifts For more detailed information regarding the Installation, Transporting, Operation, Safety, Maintenance, and additional accessories available for your lift see your SHORESTATION Operators Manual. Table of Contents You and Your ShoreStation………………….3 Assembly Instructions……………………22 Thru 38 Using Your Lift…………………………………3 &...
- Page 3 The diagram below and the line art drawings on the following pages are there to give you information on where parts are used and if needed the part numbers you will need if replacement parts are needed. Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004134 Page 5 of 43 10/20/2009...
- Page 4 Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004134 Page 6 of 43 10/20/2009...
- Page 5 Standard and Deep Water Winch Tube Leg Assemblies Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004134 Page 7 of 43 10/20/2009...
- Page 6 Standard and Deep Water Leg Assemblies Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004134 Page 8 of 43 10/20/2009...
- Page 7 Lower Frame Assembly Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004134 Page 9 of 43 10/20/2009...
- Page 8 Aluminum Platform Assembly Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004134 Page 10 of 43 10/20/2009...
- Page 9 Brace Tube Mounting/Level Cable Mounting Hardware and Leg Tube Cap Bottom Level Cable Mounting Hardware Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004134 Page 11 of 43 10/20/2009...
- Page 10 Winch Tube Assembly Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004134 Page 12 of 43 10/20/2009...
- Page 11 Winch Tube Mounting Components Mechanical Wheel Stop Mount Lift Cable Mounting Hardware Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004134 Page 13 of 43 10/20/2009...
- Page 12 Winch, Wheel, and Platform Stop Mounting Hardware and Cable Wedge Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004134 Page 14 of 43 10/20/2009...
- Page 13 Bunk Mounting Hardware Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004134 Page 15 of 43 10/20/2009...
- Page 14 Bunk Assembly Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004134 Page 16 of 43 10/20/2009...
- Page 15 Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004134 Page 17 of 43 10/20/2009...
- Page 16 Motor Stop and Mounting Hardware Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004134 Page 18 of 43 10/20/2009...
- Page 17 Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004134 Page 19 of 43 10/20/2009...
- Page 18 Winch Assembly Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004134 Page 20 of 43 10/20/2009...
- Page 19 Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004134 Page 21 of 43 10/20/2009...
- Page 20 FASTENER CHANGEOVER STAINLESS STEEL TO BRASS The following fastening hardware will be changing from stainless steel to brass in the pre-packaged bags and in the accessory kits and will no longer require the use of an anti-seize compound on the threaded hardware. Stainless Steel Components Brass Replacement Components 1450079...
