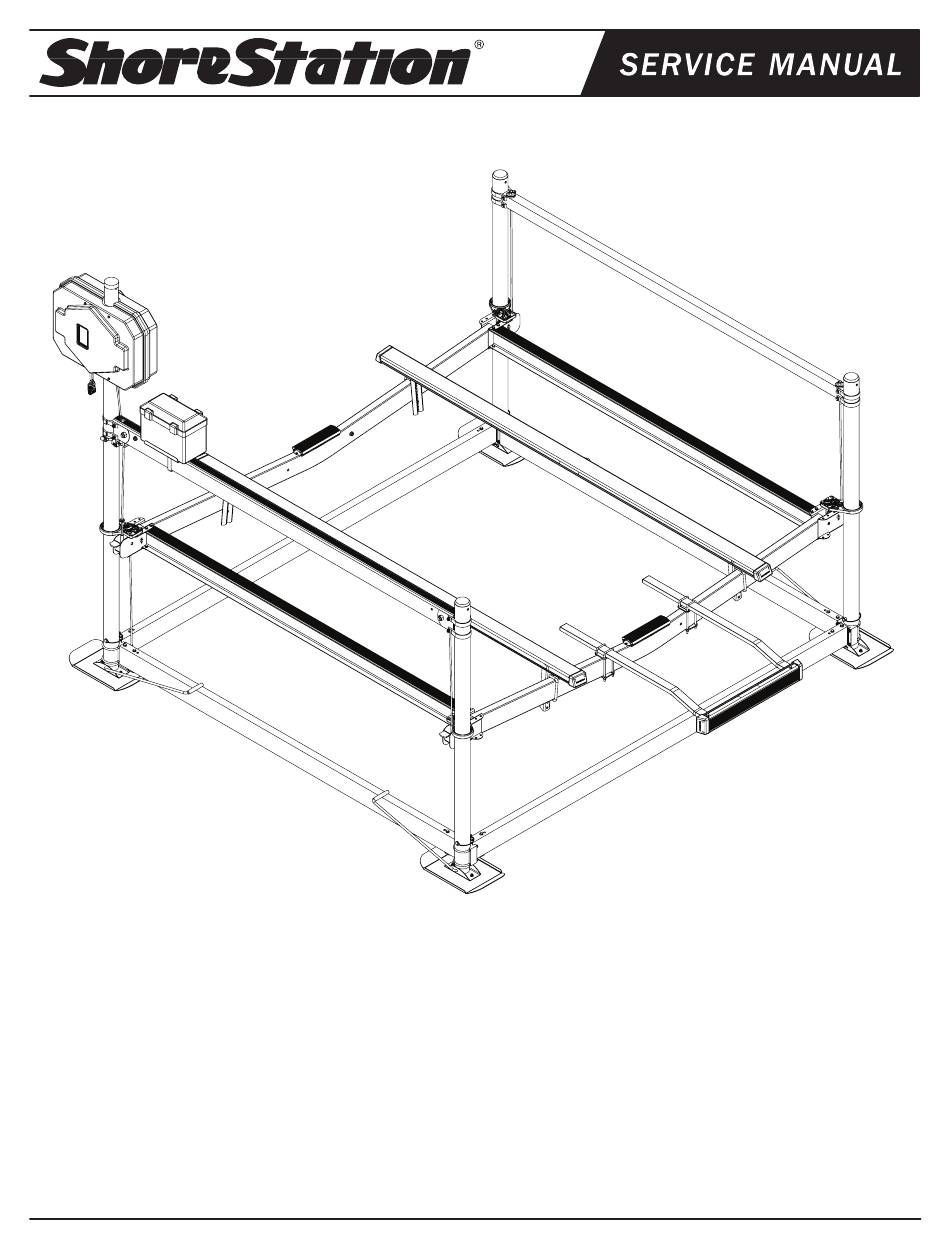

ShoreStation SSV30120EDC Service Manual

SSV30120EDC Hoist Alum SS V-Frame - EDC
69426 Hardware Box - SSV30/40120 Hoist
63401 Lower Frame Bundle - SSV30/40120
63402 Platform Bundle - SSV30/40120
6941401 Winch Assembly - AC - V15/V30
65021 Winch Tube Bundle - SSV30/40120
62927 Leg Bundle - SSV30/40120
HA0024 Motor Stop Bundle Alum 5" V-Frame
HA0053 Bunk Poly V30/40108 & 30/40120
HA0061 Battery Box / Brkt Mech. Winch Tube
69591 Lit Packet, V30120EDC/DW
NOTE: When referencing the front of hoist, this represents the winch end. When referencing the hoist end, this represents opposite of the
winch end. Winch side is also referred to the right side of the hoist.
Midwest Industries, Inc.
PAGE 1
SSV30120EDC & SSV30120EDCDW
Ida Grove, IA 51445
SSV30120EDCDW
69426 Hardware Box - SSV30/40120 Hoist
63401 Lower Frame Bundle - SSV30/40120
63402 Platform Bundle - SSV30/40120
6941401 Winch Assembly - AC - V15/V30
65021 Winch Tube Bundle - SSV30/40120
67227 Leg Bundle - V30/40120 DW
HA0024 Motor Stop Bundle Alum 5" V-Frame
HA0053 Bunk Poly V30/40108 & 30/40120
HA0061 Battery Box / Brkt Mech. Winch Tube
69591 Lit Packet, V30120EDC/DW
800.859.3028 www.shorestation.com
Hoist Alum SS V-Frame - EDCDW
REV A 5/22/07
0003781
