Assembly Instructions

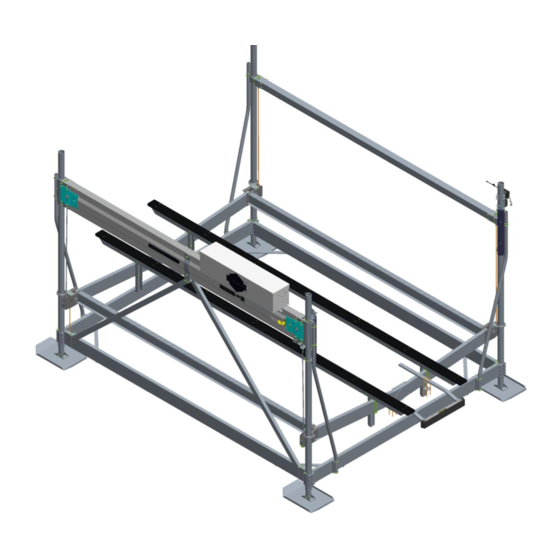

Hydraulic Boat Lift
SSV40108HS & HSDW, SSV40120HS & HSDW, SSV50120HS,
SSPV50132LHS, SSPV60120LHS, & SSV60120HS & HSDW,
SSV60132HS, SSV80132HSDW, SSV100132HSDW &
SSPV100144HSDW, SSV100144HSDW, & SSV150144HSDW
Midwest Industries, Inc.
Ida Grove, IA 51445
800-859-3028
www.shorestation.com
0004205
Page 1 of 22
Rev 2.7 3/13/2018
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ShoreStation SSV40108HS
Summary of Contents for ShoreStation SSV40108HS

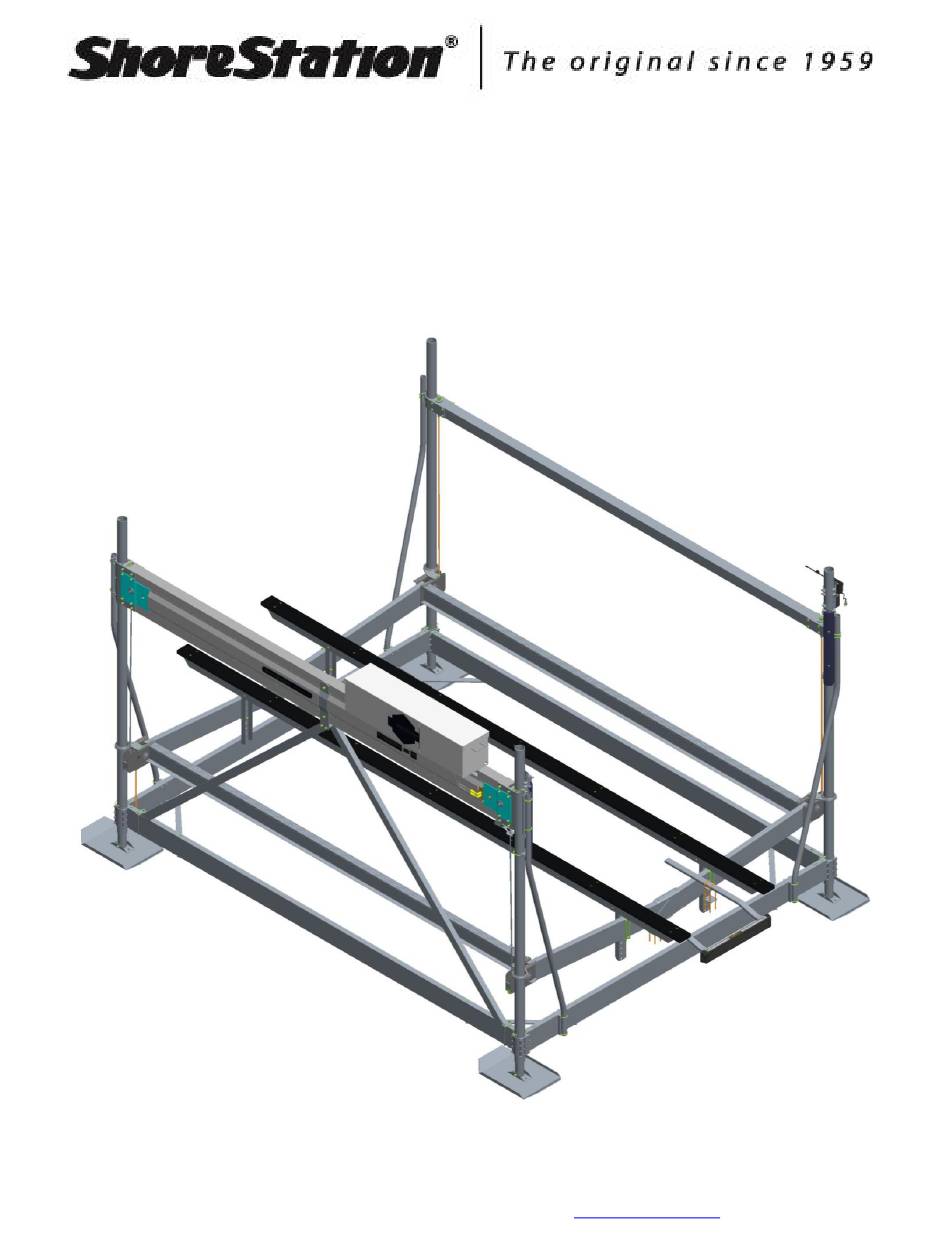

- Page 1 Assembly Instructions Hydraulic Boat Lift SSV40108HS & HSDW, SSV40120HS & HSDW, SSV50120HS, SSPV50132LHS, SSPV60120LHS, & SSV60120HS & HSDW, SSV60132HS, SSV80132HSDW, SSV100132HSDW & SSPV100144HSDW, SSV100144HSDW, & SSV150144HSDW Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004205 Page 1 of 22...
- Page 2 Tighten and repeat for all four base pads. Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004205 Page 2 of 22 Rev 2.7 3/13/2018...
- Page 3 Note that the bolts (1/2-13 X 4 1/2” HC Stainless and Brass lock nut with nylon insert) should be inserted in the same direction as that of the u-bolt. Repeat this process on the remaining legs. Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004205 Page 3 of 22 Rev 2.7 3/13/2018...
- Page 4 (see chart) with a 3/8” flat washer into the hole closest to the post assembly. Secure with flat washer and brass locknut. DO NOT TIGHTEN. Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004205 Page 4 of 22 Rev 2.7 3/13/2018...
- Page 5 Lower Frame Components Bolts to Assemble Front & Rear Side frames Short Bolts Long Bolts Crossmembers SSV40108HS & 5" X 2" X 107" 5" X 2" X 131" 3/8-16 X 6" 3/8-16 X 6 1/2" HSDW SSV40120HS & 5" X 2" X 119"...
- Page 6 Secure with a flat washer and brass lock nut. Do not tighten. Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004205 Page 6 of 22 Rev 2.7 3/13/2018...
- Page 7 Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004205 Page 7 of 22 Rev 2.7 3/13/2018...
- Page 8 Secure corner guide with a flat washer and lock nut. Do the same on the other three corners. Slide two carriage bolts into the top slot Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004205 Page 8 of 22 Rev 2.7 3/13/2018...
- Page 9 Place the platform side rails between the welded brackets on the cradle tube and attach as illustrated above (use the same fasteners as used for the aluminum cradle tube on the 4000# - 6000# lifts illustrated above). Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004205 Page 9 of 22 Rev 2.7 3/13/2018...
- Page 10 The first nut will be run to the bottom of the threads and the second run down and secured tightly against the first. Repeat on other level cable. Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004205 Page 10 of 22 Rev 2.7 3/13/2018...
- Page 11 Adjust brackets on both sides to the height indicated by the chart on page 14 and tighten all fasteners securely. 4000# - 5000# - 6000# 8000# - 15,000# Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004205 Page 11 of 22 Rev 2.7 3/13/2018...
- Page 12 6 inches to create enough slack for the cable to pass thru the brace tube. 4000# - 5000# - 6000# 8,000# - 15,000# Level Cable Lift Cables Hoist Models Hex Nut Washers Hex Nuts Washers SSV40108HS & HSDW 5/8-11 5/8-11 SSV40120HS & HSWD, 5/8-11 5/8-11 SSV50120HS SSPV50132LHS 5/8-11 5/8-11 SSPV60120LHS &...
- Page 13 14 or on the stops. Once in place complete assembly using shown hardware and tighten securely. Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004205 Page 13 of 22 Rev 2.7 3/13/2018...
- Page 14 SSV20100MS 69-1/4” 69-1/4” attachment. SSV30108EDS 68” 68” SSV30108MS 68” 68” SSV30120EDS 68” 68” SSV30120MS 68” 68” SSV40108EDS 68” 68” SSV40108HS 71-1/2” 75-1/2” SSV40108MS 68” 68” SSV40120EDS 68” 68” SSV40120HS 71-1/2” 75-1/2” SSV40120MS 68” 68” SSV50108EDS 76” 76” SSV50108MS 76”...
- Page 15 Do not allow the cables to make contact with each other or any part of the lift. Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004205 Page 15 of 22 Rev 2.7 3/13/2018...
- Page 16 The red battery cable will be hooked to the positive on the battery. Connect the battery cable from the battery bank to the motor battery cable. Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004205 Page 16 of 22 Rev 2.7 3/13/2018...
- Page 17 At this time program or check the remotes (refer to the Quick Start Hydraulic Controller instructions included in the pump box for key fob programming and operation) to be sure they will operate the system. Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004205 Page 17 of 22 Rev 2.7 3/13/2018...
- Page 18 Secure the cables to the Cradle Tubes with 2 brass nuts and a flat washer as shown below. Refer to the chart on page 11 for the proper sizes. 8,000# - 15,000# Steel 4000# - 6000# Aluminum Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004205 Page 18 of 22 Rev 2.7 3/13/2018...
- Page 19 Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004205 Page 19 of 22 Rev 2.7 3/13/2018...
- Page 20 Step #18B – Boat Lift Solar Charger Models: HA0110 (12V), HA0135 (24V) The ShoreStation Boat lift solar chargers are Specifically designed to provide reliable, trouble-free charging and maintenance of your ShoreStation lift battery.
- Page 21 Assemble the braces using the hardware shown 8000 lbs. & 100132 lbs. to the right, 10,144 lbs. below left, and 15,000 lb below right Brace Tube SSV100144HSDW Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004205 Page 21 of 22 Rev 2.7 3/13/2018...
- Page 22 Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004205 Page 22 of 22 Rev 2.7 3/13/2018...
