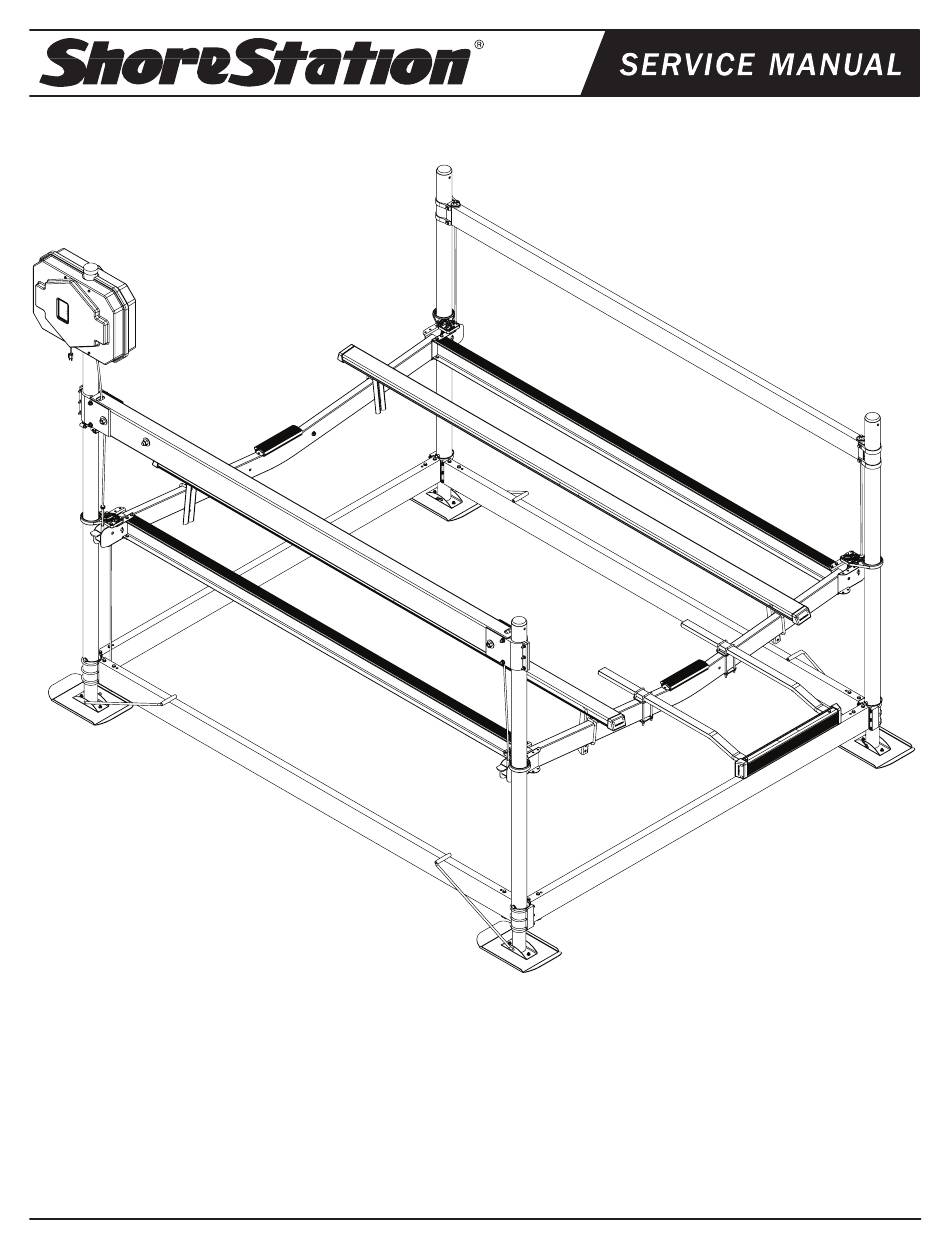

SSV60108EAC Hoist Alum SS V-Frame - EAC
68204
Hardware Box - SSV60108/120 Hoist
68261
Lower Frame Bundle - SSV60108
68262
Platform Bundle - SSV60108
6941701
Winch Assembly - AC 6000 lb Hoist
69626
Winch Tube Bundle - SSV60108/120
68203
Leg Bundle - SSV60108/120
HA0024
Motor Stop Bundle Alum 5" V-Frame
HA0021
Bunk Poly V40H-60108/120 - 60132H
69628
Lit Packet, V60108EAC
NOTE: When referencing the front of hoist, this represents the winch end. When referencing the hoist end, this represents opposite of the
winch end. Which side is also referred to the right side of the hoist.
Midwest Industries, Inc.
PAGE 1
SSV60108EAC
Ida Grove, IA 51445
800.859.3028
www.shorestation.com
0003856
Rev B 03/16/2009
Advertisement
Related Manuals for ShoreStation SSV60108EAC
Summary of Contents for ShoreStation SSV60108EAC
- Page 1 SSV60108EAC SSV60108EAC Hoist Alum SS V-Frame - EAC 68204 Hardware Box - SSV60108/120 Hoist 68261 Lower Frame Bundle - SSV60108 68262 Platform Bundle - SSV60108 6941701 Winch Assembly - AC 6000 lb Hoist 69626 Winch Tube Bundle - SSV60108/120 68203...
- Page 2 Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003856 PAGE 2 Rev B 03/16/2009...
- Page 3 Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003856 PAGE 3 Rev B 03/16/2009...
- Page 4 Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003856 PAGE 4 Rev B 03/16/2009...
- Page 5 Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003856 PAGE 5 Rev B 03/16/2009...
- Page 6 Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003856 PAGE 6 Rev B 03/16/2009...
- Page 7 Lower Frame Assembly Winch Post Guide Post Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003856 PAGE 7 Rev B 03/16/2009...
- Page 8 Platform Assembly Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003856 PAGE 8 Rev B 03/16/2009...
-
Page 9: Replacement Parts And Service
REPLACEMENT PARTS AND SERVICE Use this parts manual to identify replacement parts for this hoist if needed. Contact your local ShoreStation dealer for replacement parts and service. If you do not have a local dealer, contact ShoreStation toll free at 1-800-859-2038 for assistance or visit us online at www.shorestation.com. - Page 10 AC Drive Winch Assembly Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003856 PAGE 10 Rev B 03/16/2009...
- Page 11 Bunk Assembly Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003856 PAGE 11 Rev B 03/16/2009...
- Page 12 U-bolts. This allows you to change the motor stop location to best position your boat on the hoist. Once the assembly is in the proper position, tighten the nuts on the U-bolts. Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003856 PAGE 12 Rev B 03/16/2009...
- Page 13 SSV60108EAC Decal Placement 4811319 4811502 Adj. Guage Decal Safety Operating Decal 4811312 4850408 Clamp Arrow Decal Not A Step Decal 4850363 4850394 Safety Decal Max Load Decal 4811505 Max Load Decal 4811312 Clamp Arrow Decal 4850408 4811319 Not A Step Decal Adj.
