ShoreStation SSV50108MS Manual

Hide thumbs Also See for SSV50108MS:

Advertisement

Quick Links

Download this manual
SSV50108MS, SSV50108MSDW, SSPV50108MS, &

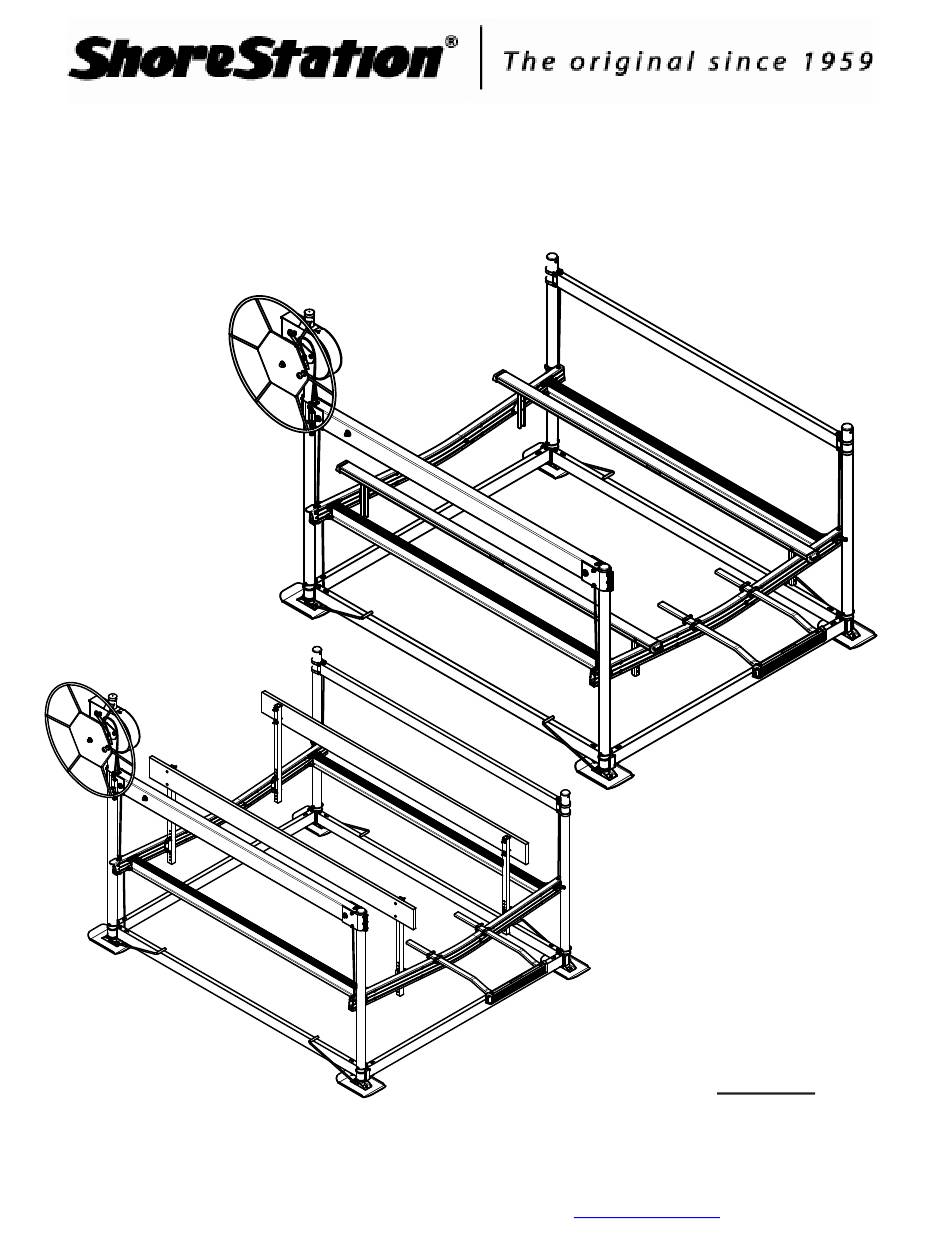

Your SHORESTATION Aluminum Boat Lift is designed to give years of dependable service. Following the
enclosed instructions will insure you that your lift is properly assembled.
SSPV50108MS
Midwest Industries, Inc.
Page 1 of 43
SSPV50108MSDW
SSV50108MS
Ida Grove, IA 51445
ATTENTION:
This Boat Lift uses
stainless steel fasteners. ALWAYS apply
anti-seize to fastener threads before
assembly to prevent galling or seizing.
800-859-3028
www.shorestation.com
ACCESSORY
10/20/2009
0004134

Advertisement

loading
Need help?

Need help?

Do you have a question about the SSV50108MS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ShoreStation SSV50108MS

Summary of Contents for ShoreStation SSV50108MS

  • Page 1 ACCESSORY SSV50108MS, SSV50108MSDW, SSPV50108MS, & SSPV50108MSDW Your SHORESTATION Aluminum Boat Lift is designed to give years of dependable service. Following the enclosed instructions will insure you that your lift is properly assembled. SSV50108MS SSPV50108MS ATTENTION: This Boat Lift uses stainless steel fasteners. ALWAYS apply anti-seize to fastener threads before assembly to prevent galling or seizing.
  • Page 2 Pontoon Kit V Alum Cradle Lifts For more detailed information regarding the Installation, Transporting, Operation, Safety, Maintenance, and additional accessories available for your lift see your SHORESTATION Operators Manual. Table of Contents You and Your ShoreStation………………….3 Assembly Instructions……………………22 Thru 38 Using Your Lift…………………………………3 &...
  • Page 3 YOU AND YOUR SHORESTATION We at ShoreStation would like to thank you for purchasing one of our boat lifts. Our goal is your complete satisfaction. That is why we recommend reading this manual in its entirety. A better understanding of your lift’s features and adjustments will make your boating experience more pleasurable.
  • Page 4 A padlock can be placed around the spoke on the big wheel and then through the wheel lock for added security. This protects both you and your boating equipment. Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004134 Page 4 of 43 10/20/2009...
  • Page 5 The diagram below and the line art drawings on the following pages are there to give you information on where parts are used and if needed the part numbers you will need if replacement parts are needed. Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004134 Page 5 of 43 10/20/2009...
  • Page 6 Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004134 Page 6 of 43 10/20/2009...
  • Page 7 Standard and Deep Water Winch Tube Leg Assemblies Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004134 Page 7 of 43 10/20/2009...
  • Page 8 Standard and Deep Water Leg Assemblies Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004134 Page 8 of 43 10/20/2009...
  • Page 9 Lower Frame Assembly Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004134 Page 9 of 43 10/20/2009...
  • Page 10 Aluminum Platform Assembly Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004134 Page 10 of 43 10/20/2009...
  • Page 11 Brace Tube Mounting/Level Cable Mounting Hardware and Leg Tube Cap Bottom Level Cable Mounting Hardware Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004134 Page 11 of 43 10/20/2009...
  • Page 12 Winch Tube Assembly Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004134 Page 12 of 43 10/20/2009...
  • Page 13 Winch Tube Mounting Components Mechanical Wheel Stop Mount Lift Cable Mounting Hardware Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004134 Page 13 of 43 10/20/2009...
  • Page 14 Winch, Wheel, and Platform Stop Mounting Hardware and Cable Wedge Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004134 Page 14 of 43 10/20/2009...
  • Page 15 Bunk Mounting Hardware Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004134 Page 15 of 43 10/20/2009...
  • Page 16 Bunk Assembly Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004134 Page 16 of 43 10/20/2009...
  • Page 17 Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004134 Page 17 of 43 10/20/2009...
  • Page 18 Motor Stop and Mounting Hardware Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004134 Page 18 of 43 10/20/2009...
  • Page 19 Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004134 Page 19 of 43 10/20/2009...
  • Page 20 Winch Assembly Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004134 Page 20 of 43 10/20/2009...
  • Page 21 Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004134 Page 21 of 43 10/20/2009...
  • Page 22 Attach the base pad clamps to the base pads with 3/8” carriage bolts. Secure with 3/8” nylon lock nuts. Tighten. Repeat on all four base pads. Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004134 Page 22 of 43 10/20/2009...
  • Page 23 A141 - LEG LIFT ROD(BOAT LIFT) Orientate the lift lower frame components and the upright posts as shown to identify the correct parts when assembling the lift. Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004134 Page 23 of 43 10/20/2009...
  • Page 24 - HH 3/8-16 X 6 CS STAINLESS • Slide a 107” cross frame onto the other leg of the corner blocks and secure the same as the side frame. Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004134 Page 24 of 43 10/20/2009...
  • Page 25 A107 - LOWER FRAME TUBE 5 X 2 X 107IN 1350095 - WASHER USS FLAT 3/8 STAINLESS 1450099 - HEX LOCKNUT 3/8 SS W/NYLON INSER Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004134 Page 25 of 43 10/20/2009...
  • Page 26 66658 - LOWER FRAME TUBE 5X2X131 0150068 - HH 3/8-16 X 6 CS STAINLESS 1350095 - WASHER USS FLAT 3/8 STAINLESS 1450099 - HEX LOCKNUT 3/8 SS W/NYLON INSER Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004134 Page 26 of 43 10/20/2009...
  • Page 27 1350095 - WASHER USS FLAT 3/8 STAINLESS 70215 - CRADLE TUBE ALUM 108 (2.120 X 5.75) 0250103 - CARR 3/8-16 X 1 1/4 SS 3510392 - CORNER GUIDE MOLDED HOIST 2010 Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004134 Page 27 of 43 10/20/2009...
  • Page 28 1350095 - WASHER USS FLAT 3/8 STAINLESS 70215 - CRADLE TUBE ALUM 108 (2.120 X 5.75) 0250103 - CARR 3/8-16 X 1 1/4 SS 3510392 - CORNER GUIDE MOLDED HOIST 2010 Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004134 Page 28 of 43 10/20/2009...
  • Page 29 Secure with 3/8” stainless steel flat washer and 3/8” stainless steel nylon lock nuts. Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004134 Page 29 of 43 10/20/2009...
  • Page 30 62709 - TOP SIDE RAIL - 50120 Route the level cable from the bottom of the platform pulley up and parallel with the upright post. Insert the cable Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004134 Page 30 of 43 10/20/2009...
  • Page 31 It is now time to lift the winch assembly up and lower it into the winch post and secure using a 1/2” x 4 1/4” stainless steel hex bolt with a stainless steel washer on the threaded end and a 1/2” stainless steel lock nut with nylon insert. Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004134 Page 31 of 43 10/20/2009...
  • Page 32 3510001 - SPINNER KNOB 0250128 - CARR 3/8-16 X 3 GR5 STAINLESS 1350105 - WASHER USS FLAT 5/8 STAINLESS 1410299 - HEX NUT ACORN 5/8-18 BRASS Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004134 Page 32 of 43 10/20/2009...
  • Page 33 Locate the cable wedge pocket. Rotate the winch drum either clockwise or counterclockwise by turning the drive shaft until the cable wedge pocket is in the shown location. Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004134 Page 33 of 43 10/20/2009...
  • Page 34 Post LEVEL CABLE SSV40108/30108 No. 3 mounting this cable in the outside hole. • Raise the platform approximately 30 inches from the bottom. Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004134 Page 34 of 43 10/20/2009...
  • Page 35 For the assembly of the HA0096 Pontoon Kit V Alum Cradle Lifts refer to the instructions included in the kit. • The motor stop must be installed on the entry end of lift. Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004134 Page 35 of 43 10/20/2009...
  • Page 36 Mount the motor stop bunk assembly to the arms. Position the brackets so the arms are equal distance from the center of the lift and secure all fasteners. Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004134 Page 36 of 43 10/20/2009...
  • Page 37 Insert the plastic caps in Posts No. 1, 2, & 3 if a canopy is not going to be installed. YOUR LIFT IS NOW FULLY ASSEMBLED AND READY FOR INSTALLATION. Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004134 Page 37 of 43 10/20/2009...
  • Page 38 It is therefore recommended that you contact your local dealer should you ever have issues with the winch tube assembly. In the event that you are experiencing a problem and do not have a ShoreStation dealer available to assist you, contact ShoreStation at www.shorestation.com...
  • Page 39 REFER TO THE PARTS MANUAL FOR YOUR PARTICULAR LIFT WHEN ORDERING REPAIR PARTS FROM YOUR DEALER. It is recommended that your ShoreStation lift be thoroughly inspected at the start of each season. Check all fasteners for tightness. Check the frame thoroughly for bent members and signs of fatigue.
  • Page 40 WINCH STYLE LIFT MECHANISMS ShoreStation incorporates the vertical lift design in all aluminum winch style boat lifts it manufactures with a lifting capacity range of 1,500- 6,000 lb. The vertical lift design will raise the boat straight up without moving it through an arc as the platform is raised.
  • Page 41 Once the winch tube has been lowered to its desired position, tighten the clamps on one end of the winch tube assembly. When they are tightened, adjust the remaining end to a matching height using the decals on the post. SHORESTATION OPERATOR’S MANUAL ADJUSTING THE WINCH TUBE •...
  • Page 42 If for any reason your winch mechanism does not function as described, DO NOT tamper with the winch mechanism. Call your authorized ShoreStation dealer for assistance. DO NOT OPERATE THIS LIFT WITHOUT FIRST STUDYING AND UNDERSTANDING THE INFORMATION IN THIS OWNER’S...
  • Page 43 Thread the hand wheel back onto the acme threads of the drive shaft by turning clockwise. Replace the parts by reversing the process in Step W1. Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004134 Page 43 of 43 10/20/2009...
  • Page 44 FASTENER CHANGEOVER STAINLESS STEEL TO BRASS The following fastening hardware will be changing from stainless steel to brass in the pre-packaged bags and in the accessory kits and will no longer require the use of an anti-seize compound on the threaded hardware. Stainless Steel Components Brass Replacement Components 1450079...
