Midwest Industries, Inc.
Page 1 of 14

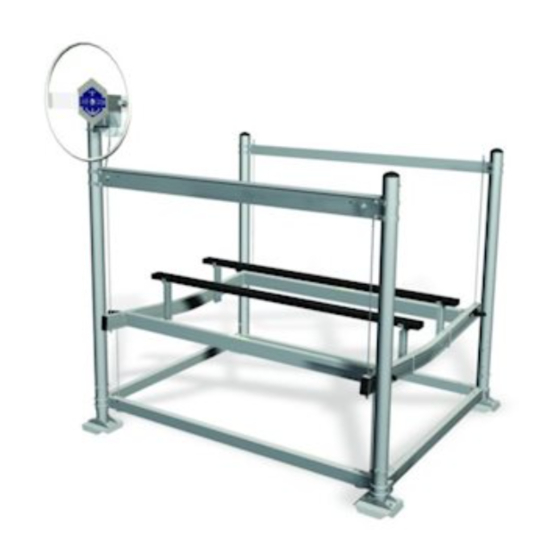

SSV1564M & SSV1564ED

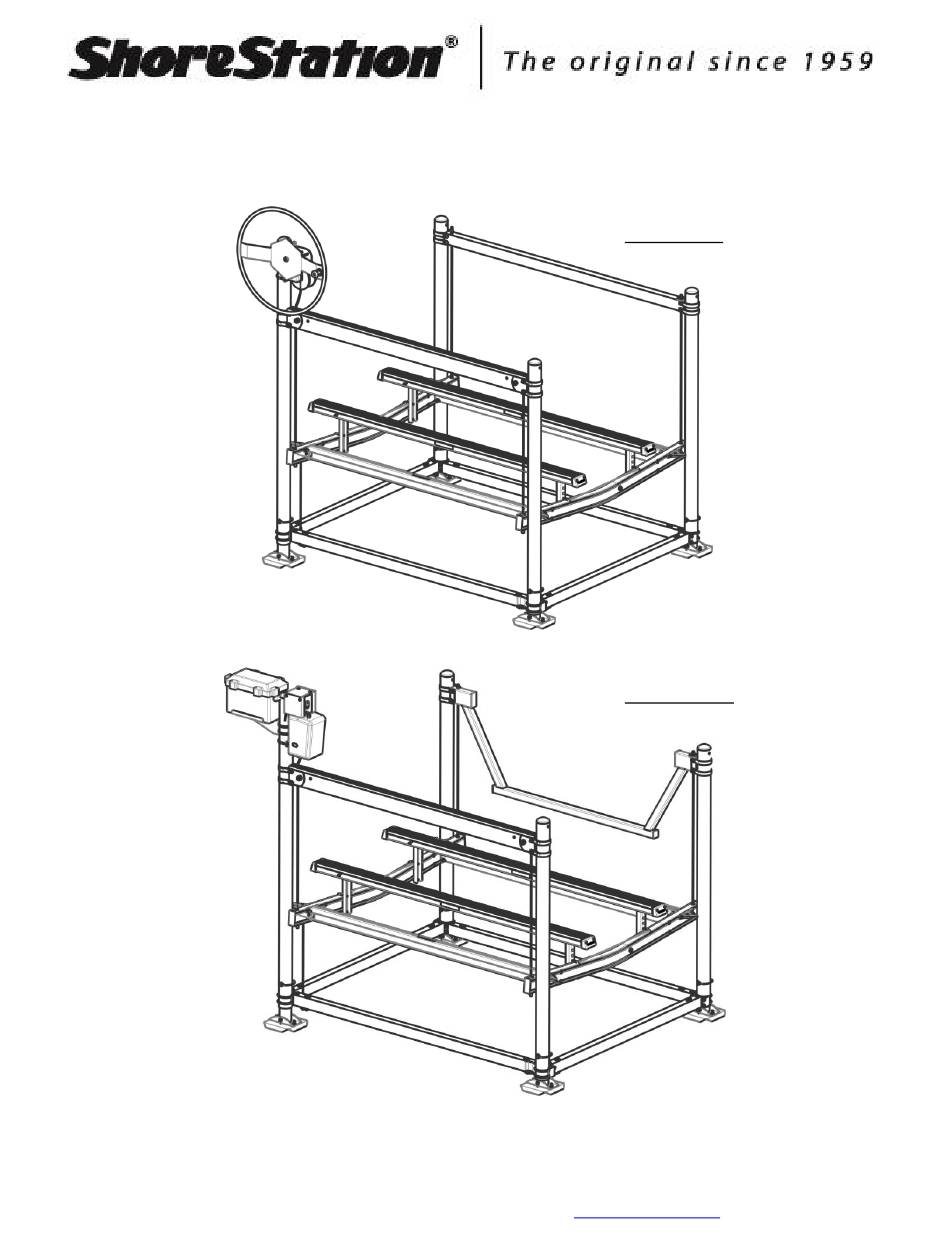

PWC LIFT ASSEMBLY GUIDE
MANUAL & FLEXPOWER® ELECTRIC
Ida Grove, IA 51445
800-859-3028
www.shorestation.com
SSV1564M
SSV1564ED
Rev E 11/17/2016
0004597

Advertisement

loading
Need help?

Need help?

Do you have a question about the SSV1564M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ShoreStation SSV1564M

  • Page 1 SSV1564M & SSV1564ED PWC LIFT ASSEMBLY GUIDE MANUAL & FLEXPOWER® ELECTRIC SSV1564M SSV1564ED Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004597 Page 1 of 14 Rev E 11/17/2016...
  • Page 2 1/2 flange locknut. The pin will be in the leg when the corner block is installed. Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004597 Rev E 11/17/2016 Page 2 of 14...
  • Page 3 Repeat with other two legs and other crossmember. DO NOT TIGHTEN. Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004597 Rev E 11/17/2016 Page 3 of 14...
  • Page 4 Insert the short bolt with a washer into the hole closest to the post and secure on the bottom with a 3/8 flange locknut. DO NOT TIGHTEN. Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004597 Rev E 11/17/2016 Page 4 of 14...
  • Page 5 Insert the short bolts with washers into the holes and secure on the bottom with 3/8 flange locknuts as shown below. DO NOT TIGHTEN. Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004597 Rev E 11/17/2016 Page 5 of 14...
  • Page 6 Secure with a 3/8 flange locknut. Square the frame by measuring diagonally corner to corner and tighten all hardware installed. Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004597 Rev E 11/17/2016 Page 6 of 14...
  • Page 7 2 carriage bolts into the top slot and 1 into the bottom slot on the inside of the cradle tube as shown below on the right. Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004597 Rev E 11/17/2016 Page 7 of 14...
  • Page 8 3 inches from the end of the cradle tube. It is important to keep this distance equal on all four corners to keep it square. Do the same on the other three corners. DO NOT TIGHTEN. Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004597 Rev E 11/17/2016 Page 8 of 14...
  • Page 9 2 brass hex nuts. The first nut will be run to the bottom of the threads and the second run down and secured tightly against the first. Repeat on other level cable. Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004597 Rev E 11/17/2016 Page 9 of 14...
  • Page 10 17-1/2” difference on the longer leg, and adjust it accordingly to get tension in the level cables. Tighten all fasteners securely. Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004597 Rev E 11/17/2016 Page 10 of 14...
  • Page 11 1/2 flat washer, and 1/2-13 brass nut. Hint: Block the platform off the lower frame about 6 inches to create enough slack for the cable to pass thru the brace tube. Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004597 Rev E 11/17/2016 Page 11 of 14...
  • Page 12 3/8 flange locknuts. Then use one U-bolt and one 1/2-13 x 4-1/2 bolt to attach the unit to the corner post as shown below. Next, slide on the wheel and spring and tighten the locknut. Locknut Spring Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004597 Rev E 11/17/2016 Page 12 of 14...
  • Page 13 1/2” flange locknuts. Then use one U-bolt and one 1/2-16 x 4-1/2 bolt to attach the unit to the corner post as shown below. Next, clamp the battery to the corner post as shown. Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004597 Rev E 11/17/2016 Page 13 of 14...
  • Page 14 Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004597 Rev E 11/17/2016 Page 14 of 14...
