SSV30120EAS, SSV30120EASDW, SSPV30120EAS, &

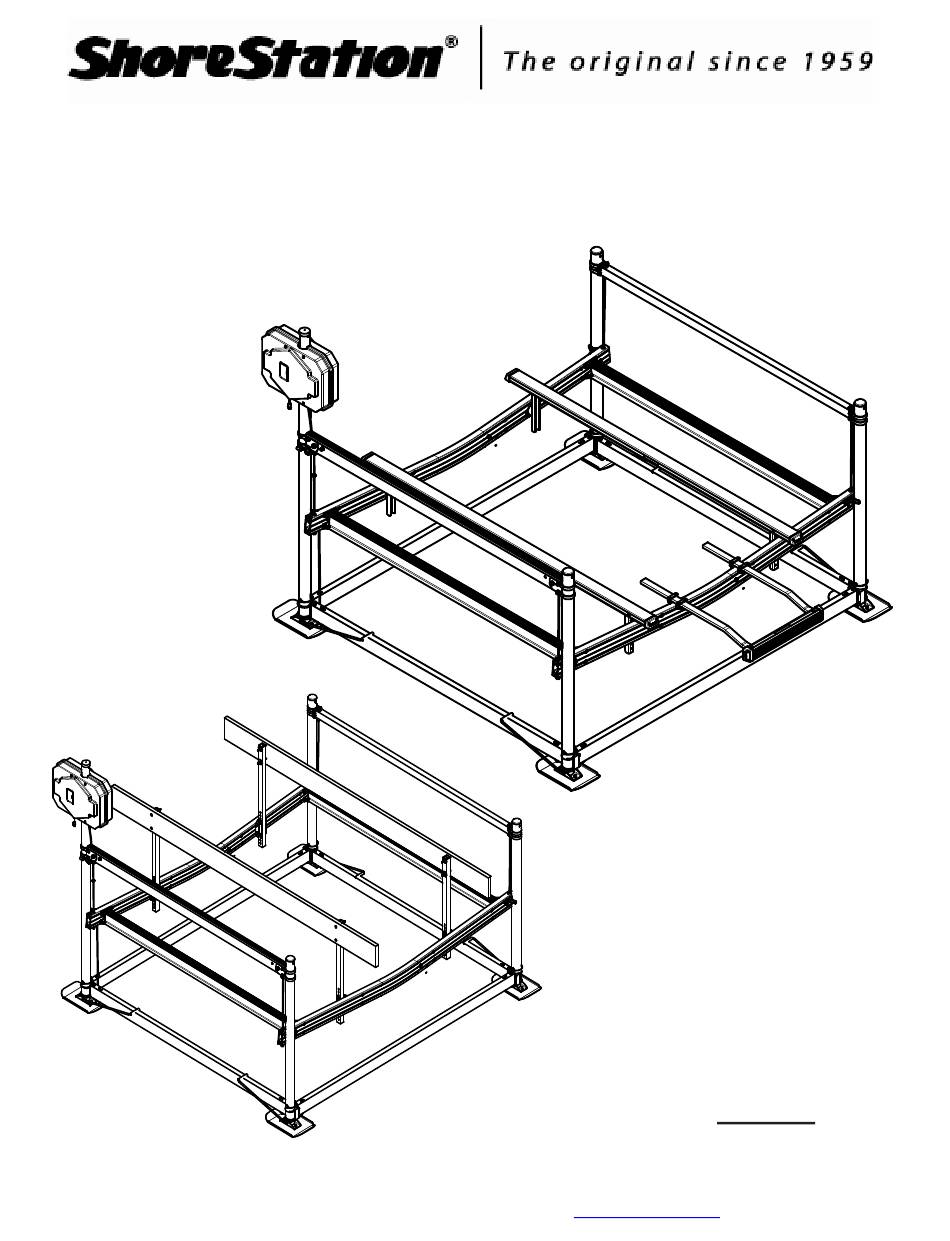

Your SHORESTATION Aluminum Boat Lift is designed to give years of dependable service. Following the
enclosed instructions will insure you that your lift is properly assembled.
SSPV30120EAS
Midwest Industries, Inc.
Page 1 of 42
SSPV30120EASDW
SSV30120EAS
Ida Grove, IA 51445
ATTENTION:
This Boat Lift uses
stainless steel fasteners. ALWAYS apply
anti-seize to fastener threads before
assembly to prevent galling or seizing.
800-859-3028
www.shorestation.com
ACCESSORY
9/16/2009
0004120
Advertisement
Related Manuals for ShoreStation SSV30120EAS
Summary of Contents for ShoreStation SSV30120EAS
- Page 1 ACCESSORY SSV30120EAS, SSV30120EASDW, SSPV30120EAS, & SSPV30120EASDW Your SHORESTATION Aluminum Boat Lift is designed to give years of dependable service. Following the enclosed instructions will insure you that your lift is properly assembled. SSV30120EAS SSPV30120EAS ATTENTION: This Boat Lift uses stainless steel fasteners. ALWAYS apply anti-seize to fastener threads before assembly to prevent galling or seizing.
- Page 2 Pontoon Kit V Alum Cradle Lifts For more detailed information regarding the Installation, Transporting, Operation, Safety, Maintenance, and additional accessories available for your lift see your SHORESTATION Operators Manual. Table of Contents You and Your ShoreStation………………….3 Assembly Instructions……………………20 Thru 35 Using Your Lift…………………………………3 &...
- Page 3 The diagram below and the line art drawings on the following pages are there to give you information on where parts are used and if needed the part numbers you will need if replacement parts are needed. Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004120 Page 5 of 42 9/16/2009...
- Page 4 Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004120 Page 6 of 42 9/16/2009...
- Page 5 Standard and Deep Water Winch Tube Leg Assemblies Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004120 Page 7 of 42 9/16/2009...
- Page 6 Standard and Deep Water Leg Assemblies Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004120 Page 8 of 42 9/16/2009...
- Page 7 Lower Frame Assembly Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004120 Page 9 of 42 9/16/2009...
- Page 8 Aluminum Platform Assembly Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004120 Page 10 of 42 9/16/2009...
- Page 9 Bottom Level Cable Mounting Hardware Brace Tube Mounting/Level Cable Mounting Hardware and Leg Tube Cap Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004120 Page 11 of 42 9/16/2009...
- Page 10 Winch Tube Assembly Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004120 Page 12 of 42 9/16/2009...
- Page 11 Winch Tube Mounting Components Winch, Wheel, and Platform Stop Mounting Hardware and Cable Wedge Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004120 Page 13 of 42 9/16/2009...
- Page 12 Lift Cable Mounting Hardware UPPER LIMIT SWITCH ASSEMBLY Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004120 Page 14 of 42 9/16/2009...
- Page 13 Bunk Mounting Hardware Bunk Assembly Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004120 Page 15 of 42 9/16/2009...
- Page 14 Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004120 Page 16 of 42 9/16/2009...
- Page 15 Motor Stop and Mounting Hardware Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004120 Page 17 of 42 9/16/2009...
- Page 16 Winch Assembly Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004120 Page 18 of 42 9/16/2009...
