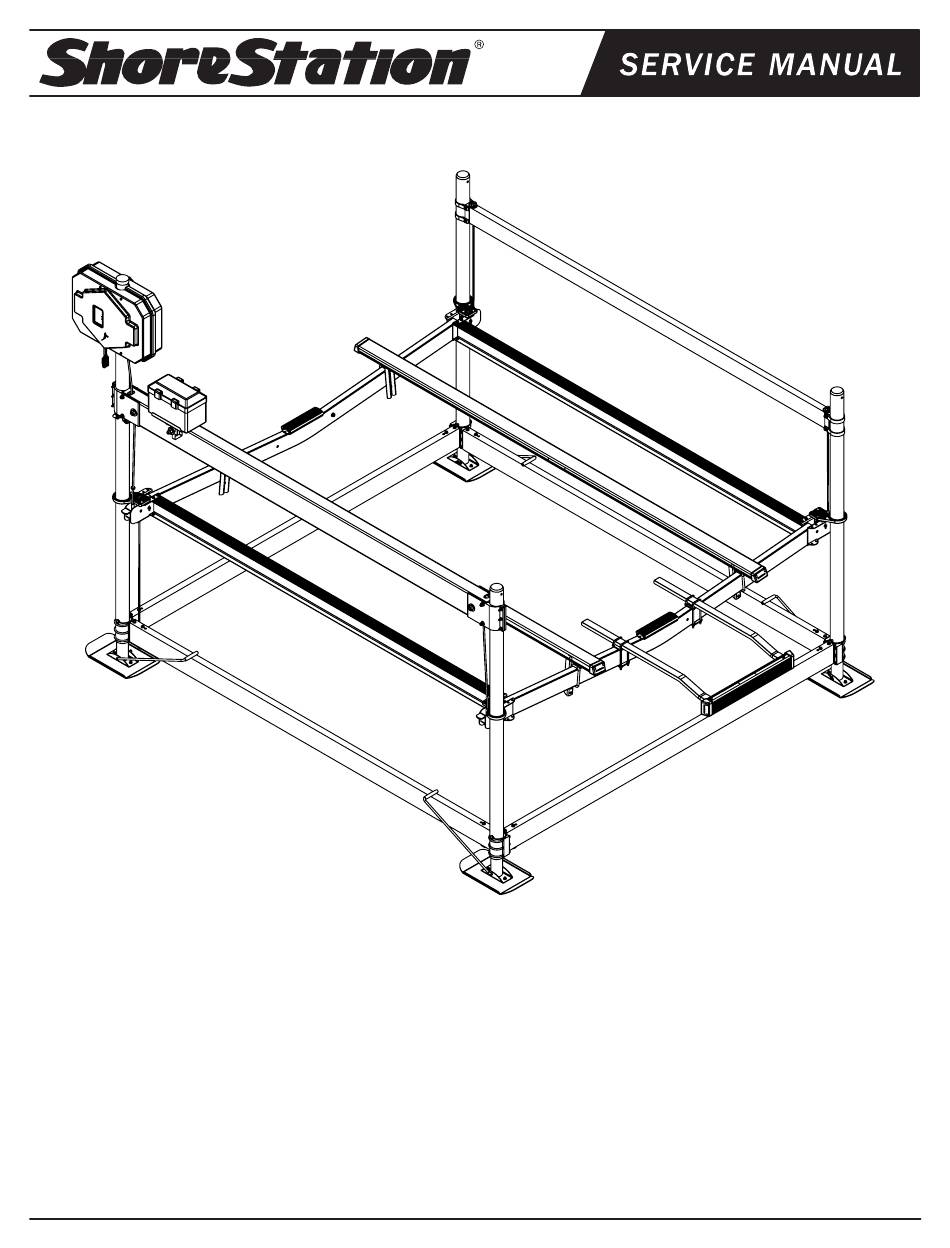

SSV60120EDC Hoist Alum SS V-Frame - EDC
68204
Hardware Box - SSV60120 Hoist
62683
Lower Frame Bundle - V60120
62866
Platform Bundle - V60120
6941801
Winch Assembly - DC 6000 lb Hoist
69626
Winch Tube Bundle - V60120
68203
Leg Bundle - V60120
HA0024
Motor Stop Bundle Alum 5" V-Frame
HA0021
Bunk Poly V40H-60108/120 - 60132H
HA0061
Battery Box / Brkt Mech. Winch Tube
69632
Lit Packet, V60120EDC/DW
NOTE: When referencing the front of hoist, this represents the winch end. When referencing the hoist end, this represents opposite of the
winch end. Winch side is also referred to the right side of the hoist.
Midwest Industries, Inc.
PAGE 1
SSV60120EDC & SSV60120EDCDW
Ida Grove, IA 51445
SSV60120EDCDW
68204
Hardware Box - SSV60120 Hoist
62683
Lower Frame Bundle - V60120
62866
Platform Bundle - V60120
6941801
Winch Assembly - DC 6000 lb Hoist
69626
Winch Tube Bundle - V60120
68206
Leg Bundle - V60120 DW
HA0024
Motor Stop Bundle Alum 5" V-Frame
HA0021
Bunk Poly V40H-60108/120 - 60132H
HA0061
Battery Box / Brkt Mech. Winch Tube
69632
Lit Packet, V60120EDC/DW
800.859.3028
www.shorestation.com
Hoist Alum SS V-Frame - EDCDW
0003854
09/06/07
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ShoreStation SSV60120EDC
Summary of Contents for ShoreStation SSV60120EDC
- Page 1 SSV60120EDC & SSV60120EDCDW SSV60120EDCDW Hoist Alum SS V-Frame - EDCDW SSV60120EDC Hoist Alum SS V-Frame - EDC 68204 Hardware Box - SSV60120 Hoist 68204 Hardware Box - SSV60120 Hoist 62683 Lower Frame Bundle - V60120 62683 Lower Frame Bundle - V60120 62866 Platform Bundle - V60120 62866 Platform Bundle - V60120 6941801 Winch Assembly - DC 6000 lb Hoist 6941801 Winch Assembly - DC 6000 lb Hoist 69626 Winch Tube Bundle - V60120 69626 Winch Tube Bundle - V60120 68206 Leg Bundle - V60120 DW 68203...
- Page 2 Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003854 PAGE 2 09/06/07...
- Page 3 Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003854 PAGE 3 09/06/07...
- Page 4 Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003854 PAGE 4 09/06/07...
- Page 5 Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003854 PAGE 5 09/06/07...
- Page 6 Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003854 PAGE 6 09/06/07...
- Page 7 Lower Frame Assembly Winch Post Guide Posts Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003854 PAGE 7 09/06/07...
- Page 8 Platform Assembly Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003854 PAGE 8 09/06/07...
- Page 9 Winch Tube Assembly WINCH TUBE SERVICE INSTRUCTIONS The winch tube assembly was pre-assembled at the factory. It is important that the internal parts and cable routings are assembled properly in order for the winch tube assembly to function properly. It also requires special tools during the as- sembly process. It is therefore recommended that you con- tact your local dealer should you ever have issues with the winch tube assembly. Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003854 PAGE 9 09/06/07...
- Page 10 DC Drive Winch Assembly Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003854 PAGE 10 09/06/07...
- Page 11 Battery Box Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003854 PAGE 11 09/06/07...
- Page 12 U-bolts. This allows you to change the motor stop location to best position your boat on the hoist. Once the assembly is in the proper position, tighten the nuts on the U-bolts. Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003854 PAGE 12 09/06/07...
- Page 13 • A standard leg shipped with the hoist has 20” of adjustment. The water depth where your hoist is going to be installed will determine whether you should use the deep water • The deep water legs have 55” of adjustment. version of this hoist. Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003854 PAGE 13 09/06/07...
- Page 14 5/16” X 3/4” Hex Bolt - Qty: 16 (0140022) 5/8” Flat Washer Qty: 6 (1340105) 5/8” Brass Hex Nut Qty: 10 (1410362) 3/8” X 3/4” Carriage Bolt - Qty: 8 (0210100) Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003854 PAGE 14 09/06/07...
- Page 15 SSV60120EDC Decal Placement 4811502 Safety Operating Decal 4811312 4850408 Clamp Arrow Decal Not A Step Decal 4811319 Adj. Guage Decal 4850363 Safety Decal 4811505 Max Load Decal 4850394 Max Load Decal 4811312 4850408 Clamp Arrow 4811319 Not A Step Adj. Gauge Decal...
