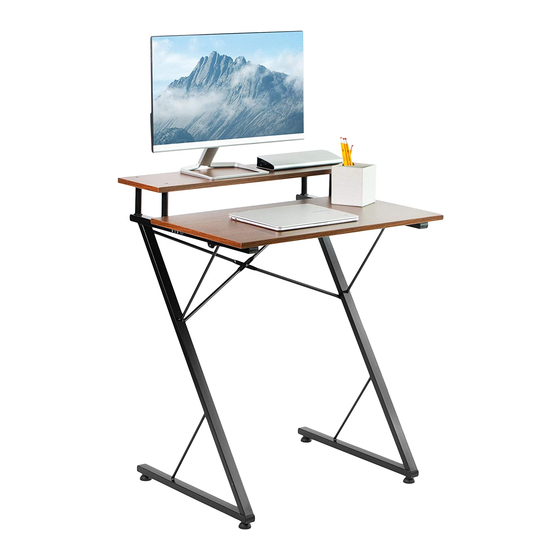

Z-Shaped Compact Workstation
Instruction Manual
SKU: DESK-C01ZN
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/desk-c01zn
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Related Manuals for Vivo DESK-C01ZN
Summary of Contents for Vivo DESK-C01ZN
- Page 1 Z-Shaped Compact Workstation Instruction Manual SKU: DESK-C01ZN Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/desk-c01zn GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual and do not exceed weight capacity.
- Page 3 ASSEMBLY STEPS STEP 1 Assemble the X support (I) to the back of the legs (H) using M5x16 bolts (A), and tighten with the Phillips end of the Allen wrench (G). Screw the foot pads (D) into the underside of the legs.
- Page 4 STEP 2 Place the crossbar (J) onto the top of the legs (H), making sure the mounting holes are positioned slightly behind the front support rods of the legs. Insert the M6x40 bolts (B) into each side and tighten with the Phillips end of the Allen wrench (G).
- Page 5 STEP 4 Assemble the posts (E) to the top of the frame using x4 M5x35 bolts (C) with the Allen wrench (G), leaving the bolts slightly loose.
- Page 6 STEP 5 Mount the shelf (K) to the posts (E) using x4 M5x35 bolts (C). The shelf may be positioned with the deeper end facing forward or back, depending on user preference. Tighten all bolts using the Phillips end of the Allen wrench (G) and press the screw covers (F) into the top of the shelf.
- Page 7 CAUTION! > Do not exceed desk weight limit. Keep weight on desk balanced for correct operation and longer life of components. Failure to follow these instructions may result in property damage and/or personal injury.
- Page 8 - 92% within < 3hr www.vivo-us.com AVG. RESOLUTION TIME : < 15 M (within office hrs) Chat live with an agent! 309-278-5303 AVG. RESOLUTION TIME : 5M 4S (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
