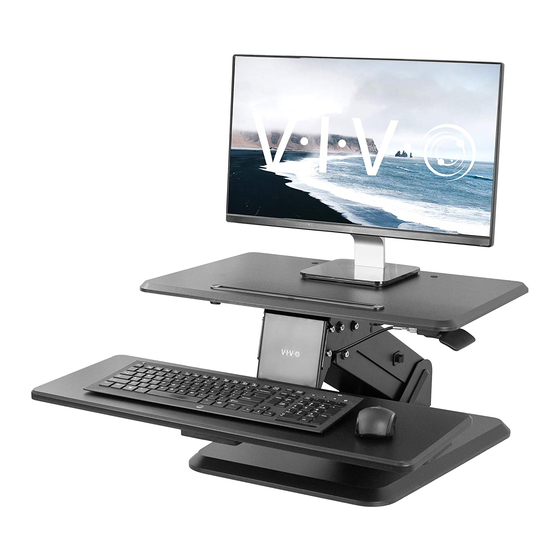

- Page 1 Black 24” Desk Riser Instruction Manual SKU: DESK-V011G Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/desk-v011g help@vivo-us.com www.vivo-us.com 309-278-5303...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual and do not exceed weight capacity.
- Page 3 ASSEMBLY STEPS STEP 1 Lift the handle to raise the desktop (A). STEP 2 Assemble keyboard tray (E) to support bracket (B) using M6x12 bolts (F) and tighten with 4mm Allen wrench (G).
- Page 4 STEP 3 Hang assembled keyboard tray in slots on the front of the desktop. STEP 4 Insert M6x12 bolts (F) into each side of support bracket and tighten with 4mm Allen wrench.
- Page 5 STEP 5 Press left and right side covers (C, D) into place as shown. STEP 6 Adjust gas spring lift strength using 6mm Allen key (H). Counter-clockwise will increase strength, and clockwise will decrease.
- Page 6 STEP 7 Place monitor, keyboard and other items on desk. If attaching a grommet compatible monitor mount, remove the plug on the left or right side of the desktop and attach the mount to the open hole. Organize cables using cable clips. STEP 8 The Allen keys can be stored in one of the cable clips for later use.
- Page 7 CAUTION! Keep monitor and Follow the cable laptop base fully on routing instructions to the desktop. avoid the potential to pinch cables. Leave enough slack Raise desktop in cable to allow for slowly to keep full range of vertical items stable. motion (15”...
- Page 8 - 83% within < 2hr - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
