Vivo STAND-SIT1W Instruction Manual

Vivo STAND-SIT1W Instruction Manual

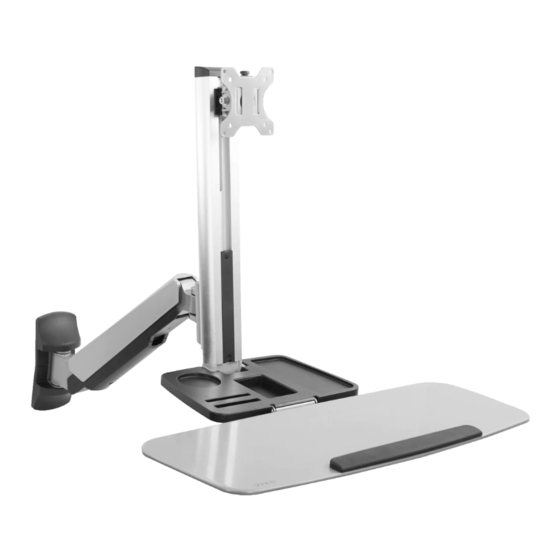

Sit to stand single monitor wall mount workstation - silver

Advertisement

Quick Links

Sit to Stand Single Monitor Wall Mount Workstation -
Silver
Instruction Manual
SKU: STAND-SIT1W
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-sit1w
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303

Advertisement

loading
Need help?

Need help?

Do you have a question about the STAND-SIT1W and is the answer not in the manual?

Questions and answers

Summary of Contents for Vivo STAND-SIT1W

  • Page 1 Sit to Stand Single Monitor Wall Mount Workstation - Silver Instruction Manual SKU: STAND-SIT1W Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-sit1w GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
  • Page 2: Package Contents

    CAUTION! DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO MOUNT. We include mounting for brick and concrete walls. If unsure, please contact us at vivo-us. com, email at help@vivo-us.com, or call us at 309-278-5303.
  • Page 3: Tools Needed

    TOOLS NEEDED Phillips Drill Pencil Screwdriver ASSEMBLY STEPS STEP 1 OPTION A: Wood Stud Mounting OPTION B: Concrete/Brick Mounting Hold arm (A) to wall where stud is located and mark top Hold arm (A) to wall where desired and hole location with a pencil. Drill 2.2” (55mm) deep hole mark top hole location with a pencil.
  • Page 4 STEP 5 Loosen top two screws on back of pole (B) until 5mm of thread is exposed on each. Slide pole onto mount of arm (A). Attach with previously removed screws, and tighten all screws with 4mm Allen wrench (F). 5m m STEP 6 OPTION A: Flat Back Monitor...
  • Page 5 STEP 9 Adjust height of monitor using knob on pole (B) as shown in diagram. Adjust tilt of monitor using 6mm allen wrench (G) as shown in diagram. Adjust rotation of tray (C) using 4mm allen wrench (F) as shown in diagram if tray (C) is not level. +15°...
  • Page 6 STEP 12 Attach straps (I) to small half of mount (H) as shown in diagram. Place mount against wall where desired and mark holes with a pencil. Drill 2.4” (60mm) deep holes using a 3/8” (10mm) drill bit, and insert anchors (W-B). Use screws (W-A) to attach mount to wall. NOTE: The CPU mount is only designed for mounting to a brick or concrete wall.
  • Page 7 STEP 15 Use screwdriver to remove screws securing the cable covers. STEP 16 Insert cables making sure there is enough slack for full movement, then re-install covers. Adjust as Desired +15° -15° 180 ° 180 °...
  • Page 8 - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) Chat live with an agent! : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
