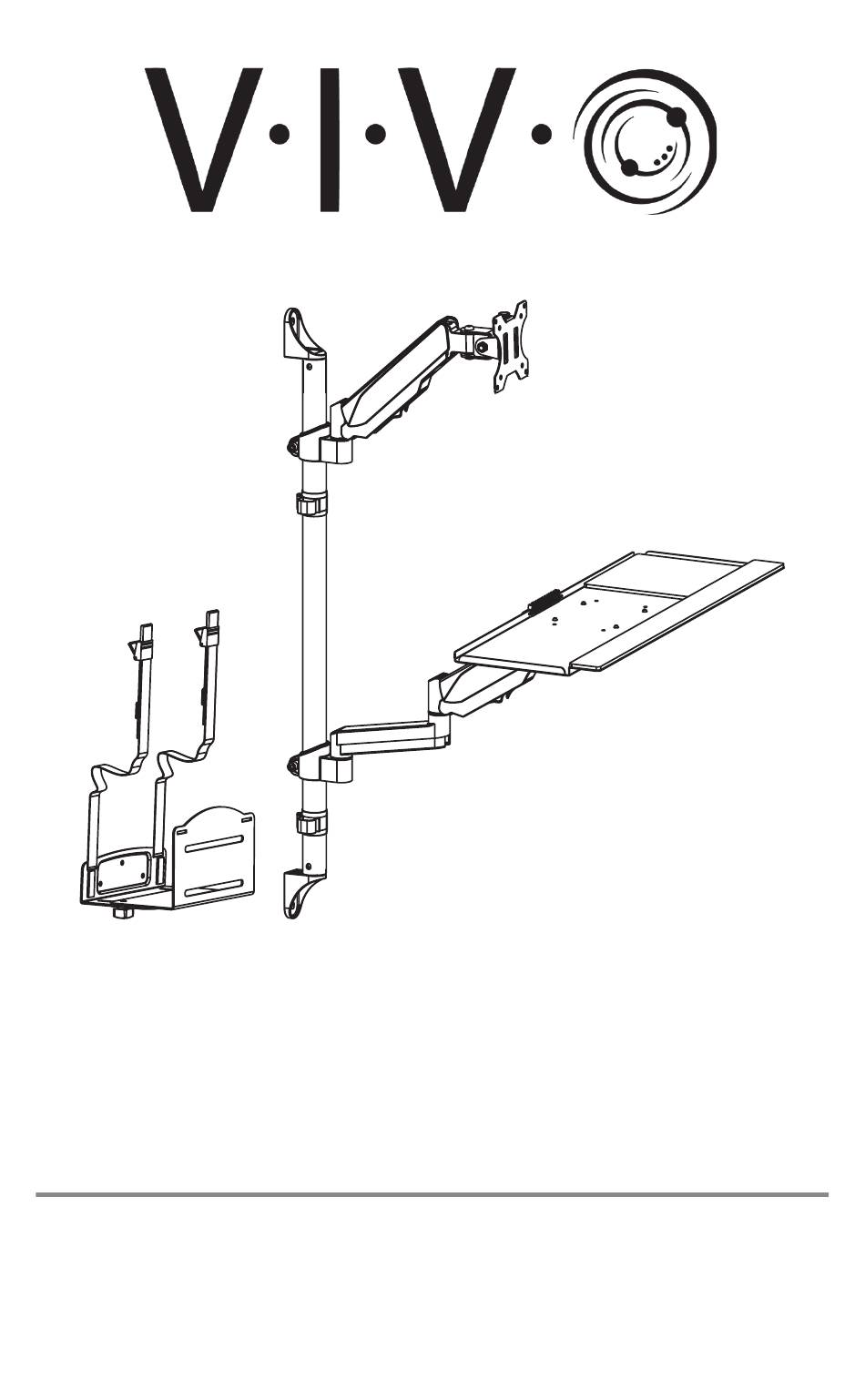

Sit to Stand Single Monitor
Wall Mount Workstation
STAND-SIT1BW
Assembly Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STAND-SIT1BW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Vivo STAND-SIT1BW

  • Page 1 Sit to Stand Single Monitor Wall Mount Workstation STAND-SIT1BW Assembly Manual...
  • Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Failure to report missing parts within 30 days may result in denial of free replacement.
  • Page 3: Package Contents

    Package Contents A (x1) B (x1) C (x2) D (x1) Keyboard Arm Monitor Arm Wall Bracket VESA Plate E (x2) F (x1) G (x1) H (x1) Cable Clip Pole Keyboard Tray I (x1) J (x2) K (x2) PC Holder Strap Knob Included Hardware &...
  • Page 4 Assembly Steps STEP 1 Option 1: Wood Stud Installation Pre-Drilling Instructions Drill mounting holes using infographic shown Drill Bit: 3/16” (4.5mm) Position Wall Bracket (C) in line with a stud and mark the hole locations using a pencil. Use of a stud finder and level is Hole Depth: recommended.
  • Page 5 Option 2: Concrete Installation Pre-Drilling Instructions Drill mounting holes using infographic shown Drill Bit: 3/8” (10mm) Position Wall Bracket (C) where desired and mark the hole locations using a pencil. Use of a level is recommended. Hole Depth: 2.4” (60mm) Note: This Wall Bracket will be positioned on the bottom of the Pole.
  • Page 6 STEP 2 Place Pole (G) onto the Wall Bracket (C) and secure using M6x10mm Screws (S-B) and a Phillips screwdriver. STEP 3 Slide a Cable Clip (E) followed by the Keyboard Arm (A), then slide another Cable Clip followed by the Monitor Arm (B) onto the Pole (G). Position the Keyboard Arm and Monitor Arm where desired and secure by tightening the side screws using 6mm Allen Wrench (T-A).
  • Page 7 STEP 4 Place the remaining Wall Bracket (C) onto the Pole (G) against the wall. Mark the hole locations using a pencil. Remove the Wall Bracket. Follow the appropriate pre-drilling instructions depending on your mounting location. Wood Stud Concrete Pre-drill in the marked locations Pre-drill in the marked locations using the diagram below.
  • Page 8 STEP 5 Attach the Wall Bracket (C) to the top of Pole (G) using M6x10mm Screws (S-B) and a Phillips screwdriver. Secure Wall Bracket (C) to the wall using ST6.3x55mm Screws (W-A) with M6x20mm Washers (W-C). Tighten using a Phillips screwdriver or drill.
  • Page 9 STEP 6 Attach Keyboard Tray (H) to Keyboard Arm (A) using M4x10mm Screws (S-C) and M4 Nuts (S-D). Tighten using a Phillips screwdriver and Wrench (T-B). Place Pad (F) on the desired side of Keyboard Tray.
  • Page 10 STEP 7 Attach the VESA Plate (D) to the back of monitor using appropriate Screws (M-A thru M-D) with M5 Washers (M-E). If the VESA pattern is recessed, Spacers (M-F) can be used. Flat VESA Patterns Recessed VESA Patterns Ensure the Lip on VESA Plate is on the top.
  • Page 11 STEP 8 Remove the pre-installed nuts from the PC Holder (I). Separate into Wall Bracket (I1), Slider Bracket (I2) and Washers (I3). Set aside Slider Bracket and Washers for later.
  • Page 12 STEP 9 Option A: Wood Stud Mounting Position the Wall Bracket (I1) where desired ensuring the center two holes are lined up with a stud. Mark the center holes using a pencil. Use of a stud finder and level is recommended. Drill into the marked locations using the diagram below.
  • Page 13 Option B: Partial Drywall Mounting Position the Wall Bracket (I1) where desired ensuring at least one hole is lined up with a stud. Mark all four holes using a pencil. Use of a stud finder and level is recommended. For each marked location, follow the instructions depending on whether the location is backed by a stud or drywall only.
  • Page 14 Option B - Cont’d 1. Insert the T Ends of Straps (F) into slots in Wall Bracket (I1). 2. For the hole with wood stud backing, attach the Wall Bracket using ST4.2x45mm Screws (W-D) with M6x10mm Washers (W-G) and a Phillips screwdriver. 3.
  • Page 15 STEP 9 - Cont’d Feed the Straps (J) through the slots on Slider Bracket (I2), then back through the Clip. Clip Place the PC onto the PC Holder (I), then slide in the Slider Bracket (I2) and tighten the Knobs (K). Pull the Straps (J) through the Clips and close the buckles to secure. Clip...
  • Page 16 STEP 11 Remove the pre-installed cable cover on Keyboard Arm (A) by sliding forward. Run cables through the cable channels and replace the cover. DO NOT PULL COVERS DOWN Doing so will damage the covers...
  • Page 17 Adjustments Adjusting Tray Height Position Mount Arm Turn 10-20x to Set Tray Height Position the arm horizontally, as shown above, and firmly hold in Turn 6mm Allen Wrench (T-A) 10-20 times place. to obtain proper support for your tray. Use the guide below to adjust the tension according to the amount of counterbalance Insert 6mm Allen Wrench (T-A)
  • Page 18: Tilt Adjustment

    Tilt Adjustment To adjust the tilt joint on either the Keyboard Arm (A) or Monitor Arm (B), loosen the screw on the tilt joint using 6mm Allen Wrench (T-A). Adjust as desired and re-tighten the screw. Allen Wrench can be stored inside the Cable Clip (E).
  • Page 19: Adjustment Ranges

    Adjustment Ranges Adjust as desired.
  • Page 20 Need Help? We’re Here For You Monday-Friday from 7am-7pm CST Saturday 8am-4pm CST Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us @VIVOus VIVO...
