  • Page 1 Product Guide 18-11-2014 Mimaki Europe B.V. Industrial Products Ver1.3EU...

  • Page 2: Terms Of Use

    Mimaki Europe B.V. • Contents and technical explanations in this presentation are based on the test results achieved at Mimaki at the time of testing and are not a guarantee for performance. Substrates should be tested beforehand. •...

  • Page 3: Product Information

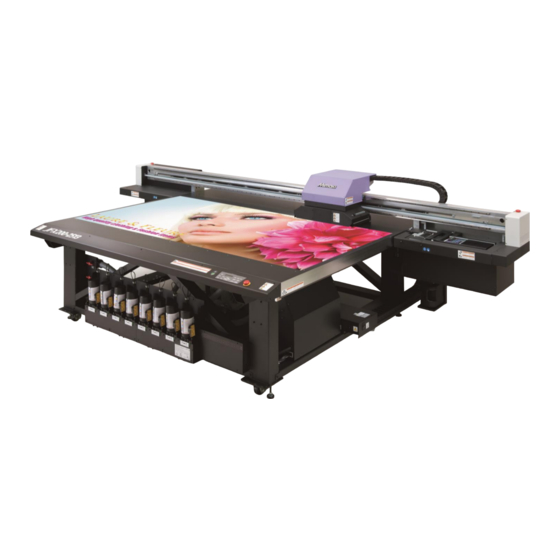

    Product Information • A new member, JFX200-2513, joined the JFX family • JFX200-2513 • The low entry model of the JFX line, having the high quality print technology of the Mimaki JFX product line Machine Width Depth Height Weight 2,250mm during installation...
  • Page 4 Product Information • New layout Print area 2100mm Head configuration JFX500-2131 3100mm JFX200-2513 1300mm 2500mm Mimaki Europe B.V. Industrial Products...
  • Page 5 The balance between quality and speed with the technology from the JFX series • High quality by Mimaki’s image quality control technology including MAPS2 and variable dot printing • High productivity is accomplished by the new print head technology and high speed curable ink •...
  • Page 6 JFX200-2513 Features • Reliability accomplished by stable printing • Ink circulation system prevents white ink from settling • Nozzle recovery function allows for continuous printing even if nozzles are clogged by using other normal nozzles • Environmentally-friendly LED-UV curing light •...
  • Page 7 JFX200-2513 Features • Print speed • With the CMYK configuration: maximum 25m²/h • With the CMYK plus White configuration: maximum 12.5 m²/h • With the CMYK plus White and Clear configuration: maximum 12.5 m²/h • New table with internal honeycomb structure for extra stability •...
  • Page 8 The LED UV lamps turn on and off instantly • LED UV lamps are ready to be used immediately, directly after the printer is turned on • An metal halide lamp requires warm up and cool down time Mimaki Europe B.V. Industrial Products...

  • Page 9: Basic Configuration

    Output / Installation USB 2 0 5m (15ft) cable is recommended Recommended hardware specifications CPU: Core i5 3.1GHz Memory: HDD: 500GB I/F : USB2.0 4 ports or more ODD: DVD-ROM Windows7 / 32bit / Pro Monitor: 1366x768 Mimaki Europe B.V. Industrial Products...
  • Page 10 Introduction of MCC • MCC, Mimaki Clear Control • MCC is the new function added to the JFX200-2513 • MCC enables to do full color printing and Clear printing at the same time • Advantage1, Reducing the attachment of dust •...
  • Page 11 Application of clear ink • 3 types of finishes • Glossy finish • Matte finish • Emboss finish • Various appearances • Overall print • Partial Print • Texture print Mimaki Europe B.V. Industrial Products...
  • Page 12 Printing with clear ink will reduce the flexibility of the print with LUS150 • Please test the print quality on fore hand No clear Ink Partial texture Print Clear Glossy printing Partial Gross Print and matte Print Mimaki Europe B.V. Industrial Products...
  • Page 13 *6boards/hr (4‘ x 8 ‘ ) CCYY 600x900 12Pass 12sqm/hr Bi/Hi (129.0 sq.ft./hr) *4boards/hr (4‘ x 8 ‘ ) Standard 1200x1200 16Pass 3.4sqm/hr Uni/Hi (36.5sq.ft./hr) *1boards/hr (4‘ x 8 ‘ ) High Quality Scan direction m²/h Mimaki Europe B.V. Industrial Products...
  • Page 14 *3boards/hr (4‘ x 8 ‘ ) ClClWW 600x900 24Pass 6.2sqm/hr Bi/Hi Standard (66.6 sq.ft./hr) *2boards/hr (4‘ x 8 ‘ ) 1200x1200 32Pass 1.7sqm/hr High Quality Uni/Hi (18.2sq.ft./hr) *0.5 boards/hr (4‘ x 8 ‘ ) Scan direction m²/h Mimaki Europe B.V. Industrial Products...
  • Page 15 MAPS 2 (Mimaki Advanced Pass System) • With MAPS2, both feeding stripes and color changes are reduced MAPS: ON • MAPS 2 eliminates banding by dispersing ink drops between the passes • This technology is improving the print quality, when printing in high productivity modes and the uneven print density at solid color area’s...
  • Page 16 The variable dot, printing in 3 different dot sizes of small, medium and large • Realizes a high image quality printing with the smooth gradation • Variable dot Small characters sharp without granular appearance Normal dot Mimaki Europe B.V. Industrial Products...
  • Page 17 Furthermore, if the gap is to wide, the reflected light from the UV curing lamp increases. This leads to a cause of an error of the ink droplet onto the substrate or the nozzle clogging, because the reflected light may increase the viscosity of the ink mist Mimaki Europe B.V. Industrial Products...
  • Page 18 The vacuum is controlled, On or Off, via the operation panel • Vacuum area is divided in X direction • Depending on the media size, open or close the valve, to control the suction area Front Origin Valves 2,500mm Mimaki Europe B.V. Industrial Products...
  • Page 19 The scale allows for the accurate setting of the media. • When using layout pins, use a substrate with thickness of minimum 3mm or more. The height of the pin is 3mm Ten pieces are supplied with the machine Layout pins Mimaki Europe B.V. Industrial Products...
  • Page 20 • Preventing print heads from hitting the media • When the media height is set incorrectly or the media is deformed, the sensor hits the media and the carriage stops to protect the print heads Mimaki Europe B.V. Industrial Products...
  • Page 21 For the lowest number of printing passes, of the printing mode, the Nozzle recovery function is disabled The nozzle recovery workflow Nozzle Resume operation Operation Stop clog occured Service intervention Setting nozzle Operation continues Maintenance starts recovery Mimaki Europe B.V. Industrial Products...
  • Page 22 User friendly design • Easy replacement of ink bottles • The lights indicates, when the ink has run out for smooth replacement • UISS (Uninterrupted Ink Supply System) works when the 4C ink set is used Mimaki Europe B.V. Industrial Products...
  • Page 23 (1L) directly to the unit Special cap Cap mounting jig Ink bottle Set a special cap Screw the cap till the arrows on the jig match Mimaki Europe B.V. Industrial Products...
  • Page 24 Creating an stable ink supply system • This reduces the amount of waste ink which leads to the reduction of the ink cost. • MCT works when white ink set is installed Conventional white ink line ▼ Mimaki Europe B.V. Industrial Products...
  • Page 25 ・The media is hard to deform after printing ・High solvent resistance ・Good media compatibility ・Less tackiness ・Signage, decoration on soft material and ・Inddorpanel, decoration on small goods, Application material which requires post process and name plate Mimaki Europe B.V. Industrial Products...
  • Page 26 UISS works in Magenta and Cyan lines Clear ink can express gloss finish or emboss finish 4-color+Clear & White Cl Cl ＊Clear ink of LH-100 is used in combination with LUS-150 Mimaki Europe B.V. Industrial Products...
  • Page 27 ・The ink is hard to be cracked because LUS-150 is flexible Flexibilit Scratch resistance Flexibility:About 150%) (Pencil) ・Adhesiveness is better than LH-100 The weakness of LUS-150 Offset Folding ・The scratch and solvent resistance is less then LH-100 Tackiness Bad:0⇔Good:5 Mimaki Europe B.V. Industrial Products...
  • Page 28 △:Medium (The ink may peels off by cross cutting) ×:Not suitable(The ink peels off easily by tape) ・The test above was conducted based on the internal standard. The results are no guarantee of the performance. Mimaki Europe B.V. Industrial Products...
  • Page 29 Multiple LED-UV inks for a wide range of applications LH-100 LUS-150 LUS-200 Nail Scratch Nail Scratch No scratch Scratched LH-100 LUS-150 3H ～ H Pencil hardness 100% 150% flexibility （ Not flexible ） （ Stretches a half ） Mimaki Europe B.V. Industrial Products...
  • Page 30 *1: Density in which the trace of the rubbing remains. Evaluation standards：○：Attached, △：Peels off with low density, ×：Peels off easily Evaluation method：Evaluate holistically by the test results of primary color, secondary color, and tertiary color. Mimaki Europe B.V. Industrial Products...
  • Page 31 *1: Air bubbles get in/ 2: Ink film is attacked/ 3: Ink film become hard Evaluation standards：○：Attached, △： Peels off partly, ×：Takes some time to peel off, ××：Peels off immediately after dipping. (It takes 3 minutes to peel off when dipping in ethanol and xylene.) Mimaki Europe B.V. Industrial Products...
  • Page 32 The Software RIP Rasterlink6 • New RasterLink 6 is Simplicity, and Usability • New useful functions • Now anyone can have the more beautiful and more sophisticated output • This is “Everyone’s RIP software” Mimaki Europe B.V. Industrial Products...
  • Page 33 Easy visually confirmable on the main enabling intuitive manipulation overview screen The mode which is used frequently can be registered With this function, printing with the minimum operation is possible Mimaki Europe B.V. Industrial Products...
  • Page 34 Inform the printing situation, such as the used amount of ink, the estimated printing time • Correspond with the Web Update • The web update is available • The program updates and the profiles can be downloaded via the internet Mimaki Europe B.V. Industrial Products...

  • Page 35: Installation Space

    • Generates ink odor • Please use the machine in a well- 1,000mm ventilated environment. or more • Use the foot base • 6,400mm or more in order to prevent floor deformation,. Mimaki Europe B.V. Industrial Products...

  • Page 36: About Options

    W800 × D750 × Ｈ650 Single phase200-240V,30A Optional blower Connection KIT （OPT-J0348） Vacuum unit(Single Phase) OPT-J0217 * Independent power supply is needed when using optional vacuum unit apart from Optional blower Connection KIT and printer. Mimaki Europe B.V. Industrial Products...
  • Page 37 JFX200-2513 Specifications Item Specification Head Drop-on-demand piezoelectric print heads (2 head: 2-layered staggered arrangement in 1-line) 300x450HQ : Bi/Uni 3/6/12/24 pass 4-color set installed 600x900 : Bi/Uni 6/12/24 pass Print mode (Scan x Feed) 300x450HQ : Bi/Uni 6/12/24 pass 4-color + White set installed...
  • Page 38 White on Color or Clear on Color LED Lamp Mode Resolution Pass Uni/Bi Scan Speed (In） High Speed 300x450HQ Normal 12.5m²/h 65mm Production 600x600 9.0m²/h 65mm Standard 600x900 6.2m²/h 65mm High Quality 1200x1200 1.7m²/h 65mm Mimaki Europe B.V. Industrial Products...
  • Page 39 If you cannot change the lamp position during the print, please set the lamp position at 0mm before printing. • With RasterLink6, the following message dialog box may be displayed, then click the [OK] button is clicked Mimaki Europe B.V. Industrial Products...
  • Page 40 Make this Full color data. Printing Condition & Ink Consumption 720 x 900dpi、12pass 14.166cc 2500mm ※These ink Consumption are calculated value. They may change depending on graphic files and print condition . ※Ink consumption except printing is eliminated. Mimaki Europe B.V. Industrial Products...
  • Page 41 Comparison • Mimaki JFX200-2513, with LUS150 • Canon (Oce), 318GL, with IJ255 Mimaki Europe B.V. Industrial Products...
  • Page 42 ・Solvent resistance is better than LUS-150 Tackiness ・Little tackiness Bad:0⇔Good:5 The weakness of OCE IJ255 ink ・Poor media compatibility ・The membrane cracks when post processing The property of Oce hard type ink is similar to LH-100 Mimaki Europe B.V. Industrial Products...
  • Page 43 LUS-150 vs Oce IJ255 ink property comparison • Color gamut comparison LUS-150 Oce hard ink The color gamut of LUS-150 and Oce hard type ink are almost similar -120 Measuring machine: Spectrolino (Gretag Macbeth) Condition: D50, 2° -120 Mimaki Europe B.V. Industrial Products...
  • Page 44 △:Medium (The ink may peels off by cross cutting) X :Not suitable (The ink peels off easily by tape) ・LUS-150 matches well on PET and PVC ・The Oce’s hard type ink peels off easily without cross cutting when printing on acrylic Mimaki Europe B.V. Industrial Products...
  • Page 45 Adhesiveness on PLEXIGLAS (Acrylic) LUS-150 OCEIJ255 ink No Cross Cutting Cross Cutting No Cross Cutting Cross Cutting ・On acrylic, LUS-150 does not peel off with no cross cutting ・OCEIJ255 ink peels off with or without cross cutting Mimaki Europe B.V. Industrial Products...
  • Page 46 About 2 years About 3 years About 1 year About 1 year 試験時間(h) 試験時間(h) *Tested media: Mimaki’s original Gloss PVC(G137) The change of the color (C,M,K) of LUS-150 is Less than Oce hard type ink. Mimaki Europe B.V. Industrial Products...
  • Page 47 Outdoor durability (Accelerating test) 150h later 50h later 100h later 150h later Start （Expanded image） (About 1year） (About 2 years） (About 3 years） LUS-150 OceIJ255 Both inks discolors constantly. The membrane cracking of Oce is worse than LUS-150. Mimaki Europe B.V. Industrial Products...
  • Page 48 (80% of the market) !!!! Remarks : Oce’s Std mode is Quality. Faster modes(Express, Production) has a tendency to have banding with flat-bed media.（Tested and confirmed at our facility) 5m²/h 10m²/h 15m²/h 20m²/h 25m²/h 30m²/h 【Std Speed】 Mimaki Europe B.V. Industrial Products...
  • Page 49 (80% of the market) !!!! White ink Model Price Remarks : Oce’s Std mode is Quality. Faster modes(Express, Production) has a tendency to have banding with flat-bed media.（Tested and confirmed at our facility) 5m²/h 10m²/h 15m²/h 20m²/h 25m²/h 30m²/h Mimaki Europe B.V. Industrial Products...
  • Page 50 Thank you MIMAKI EUROPE B.V. Mimaki Europe B.V. Industrial Products...
