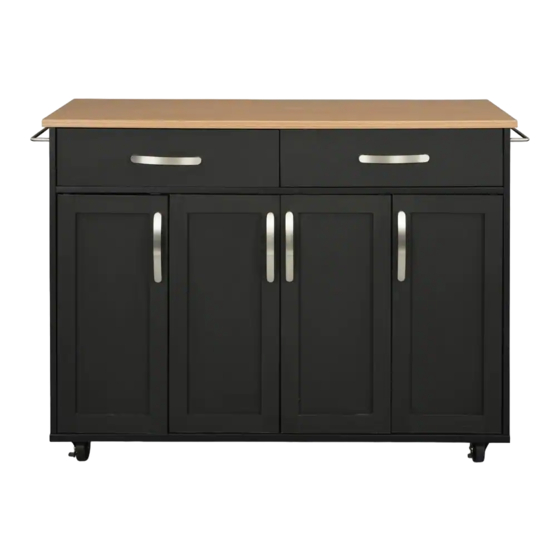

Kitchen cart
Hide thumbs

Advertisement

Quick Links

Download this manual
IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Part List
A.
Top
1 pc.
E.
Rail
1 pc.
F.
Rail
1 pc.
G.
Back Rail
1 pc.
H.
Back Rail
1 pc.
K.
Base
1 pc.
Tool(s) required for assembly: Phillips screwdriver
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
20 04411 0095
Kitchen Cart
B.
Side Panel
1 pc.
I.
Divider
1 pc.
L.
Shelf
4 pcs.
N.
Door
2 pcs.
C.
Side Panel
1 pc.
M.
Shelf
2 pcs.
P.
Drawer
1 pc.
Q.
Drawer
1 pc.
O.
Door
Refer to later page(s) of these
2 pcs.
instructions for drawer assembly.
888-680-7460, 877-831-0319
D.
Middle Panel
2 pcs.
J.
Back Panel
1 pc.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 20 04411 0095 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Homestyles 20 04411 0095

Summary of Contents for Homestyles 20 04411 0095

  • Page 1 1 pc. 1 pc. Drawer 1 pc. Base Door Door Refer to later page(s) of these 1 pc. 2 pcs. 2 pcs. instructions for drawer assembly. Tool(s) required for assembly: Phillips screwdriver Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...

  • Page 2: Hardware List

    Assembly Instructions 2/11 Hardware List M7x10 M3.5x12 Cam Lock Screw Cam Lock Varianta Screw Magnet Screw Magnet 29 pcs. (+4 extra) 29 pcs. (+4 extra) 8 pcs. (+1 extra) 8 pcs. (+1 extra) 4 pcs. M7x50 M4x16 M6x25 Dowel Cover Assembly Screw Caster Screw...
  • Page 3 Assembly Instructions 3/11 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Varianta Screw Left Guide Cam Lock Screw Magnet Screw Magnet Right Guide STEP 1 Insert Cam Lock Screws into pre-drilled in Top (A), Side Panels (B), (C) Figure 1 and Back Rail (G), then tighten.
  • Page 4 Assembly Instructions 4/11 STEP 3 Attach Rail (F) to Back Rail (G) with Dowels and Cam Locks. (See Figure 4) Cover Cam Locks with Covers. (See Figure 5) Cover Cam Lock Dowel Figure 5 Figure 6 Dowel STEP 4 Attach Rail (E) and unit from Step 2 to Divider (I) with Dowels and Assembly Screws.
  • Page 5 Assembly Instructions 5/11 Dowel Cover Cam Lock STEP 6 Attach Side Panel (C) and Back Rail (H) to unit with Dowels and Cam Locks. Cover Cam Locks with Covers. Dowel Cover Cam Lock STEP 7 Slide Back Panel (J) into position. Attach Side Panel (B) to unit with Dowels and Cam Locks.
  • Page 6 Instructions 3/6 Assembly Instructions 6/11 STEP 8 Attach Base (K) to unit with Dowels and Assembly Screws. Dowel Assembly Screw STEP 9 Cam Lock Cover Turn unit to its upright position. Dowel Attach Top (A) to unit with Dowels and Cam Locks. Cover Cam Locks with Covers.

  • Page 7: Part List

    Assembly Instructions 7/11 Drawer (P) Dowel Cam Lock Screw STEP 10 Cam Lock Cover Attach Drawer Sides (P3) and (P4) to Drawer Front (P1) with Cam Lock Screws, Dowels and Cam Locks. Cover Cam Locks with Covers. Cam Lock Cam Lock Screw STEP 11 Dowel Flat Head Screw...
  • Page 8 Assembly Instructions 8/11 Drawer (Q) Dowel Cam Lock Screw STEP 14 Cam Lock Cover Attach Drawer Sides (P3) and (P4) to Drawer Front (Q) with Cam Lock Screws, Dowels and Cam Locks. Cover Cam Locks with Covers. Cam Lock Cam Lock Screw STEP 15 Dowel Flat Head Screw...
  • Page 9 Assembly Instructions 9/11 Adjustable Pin Figure 8 STEP 18 Insert Adjustable Pins into side panels and middle panels at desired level. (See Figure 8) Place Shelves (L) and (M) into position. Side Bar Head Cap Bolt Figure 9 Hinge Figure 10 STEP 19 Attach Side Bars to unit with Head Cap Bolts into pre-drilled holes.
  • Page 10 Assembly Instructions 10/11 STEP 20 Plate Screw Plate Place Doors (N) and (O) face down on a soft cloth. Attach Hinges to Doors (N) and (O) with Wood Screws into pre-drilled holes. (See Figure 12) Wood Screw Attach Plates to Hinge Doors (N) and (O) with Plate Screws into...
  • Page 11 Assembly Instructions 11/11 Uneven Gap Large Gap Figure 16 Figure 17 If needed, doors may be adjusted for large or uneven gaps between them. (See Figures 16 and 17) Loosen Wood Screws attaching Hinge to door. (See Figure 18) Slide door left to right as needed to adjust gap. (See Figure 19) Re-tighten Wood Screws attaching Hinge to door.
  • Page 12 Home Styles is under no obligation to provide replacement parts. Parts are not available for fully assembled items nor are parts available for sale. Replacements for missing or damaged hardware or parts may be requested at: www.homestyles-furniture.com/customer-service/replacement-parts Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
