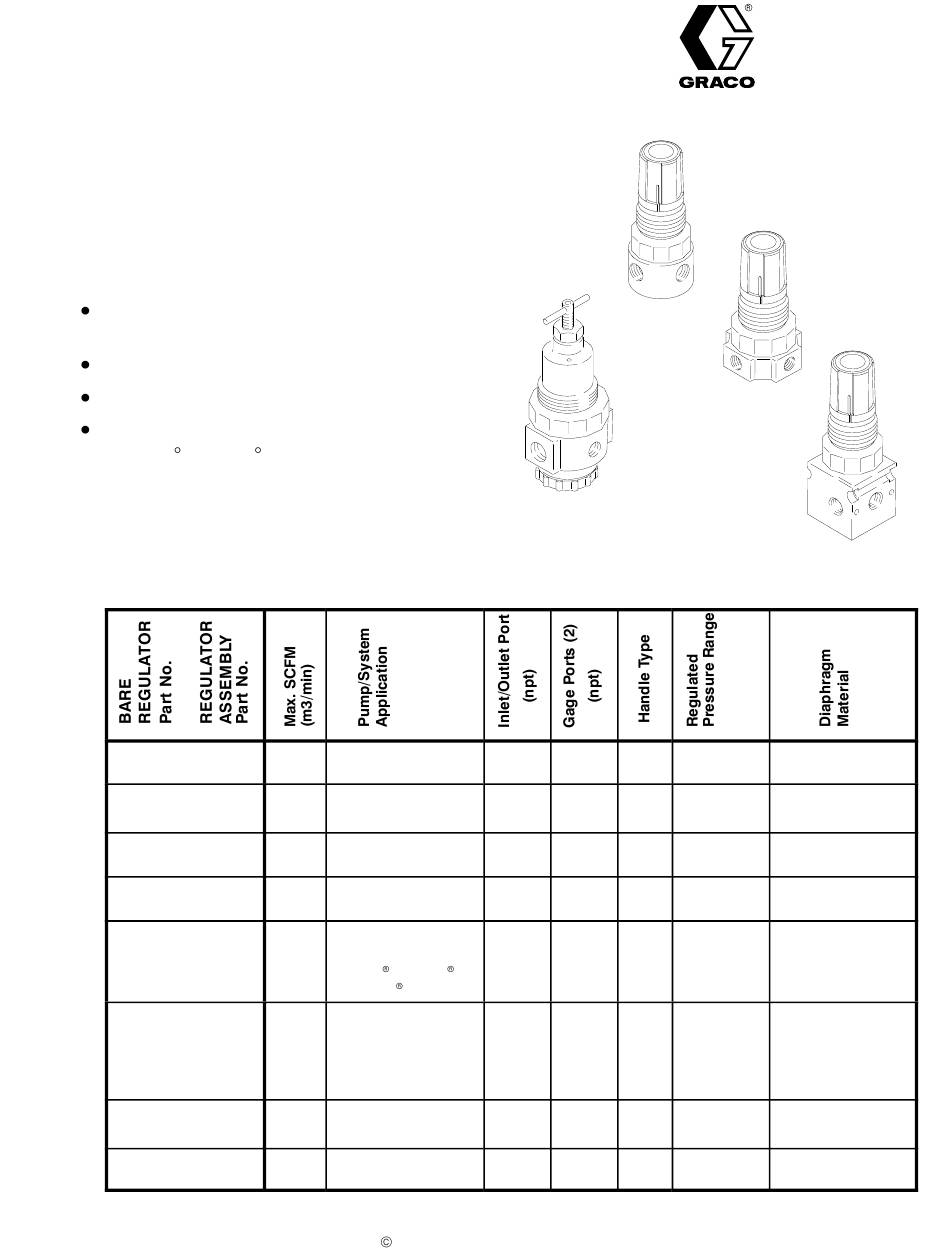

INSTRUCTIONS-PARTS LIST
LOW VOLUME
AIR REGULATORS
300 psi (21 bar) MAXIMUM INCOMING AIR PRESSURE
For use in systems requiring up
to a maximum 90 SCFM
Diaphragm and Piston–Operated
Self–Relieving
Temperature Range:
40–120 F (4–49 C)
NOTE: See manual 308–168 for higher volume
regulators.
NOTE: Bare regulators are available separately or
in the regulator assemblies shown with them.
104–815
110–318
110–147
110–341
111–804
110–234
109–075
224–512
224–024
104–266
206–849
203–716
202–156
202–858
104–267
206–237
171–937
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
This manual contains IMPORTANT
INSTRUCTIONS and WARNINGS.
READ AND RETAIN FOR REFERENCE.
15
Pressure Cup,
(0.4)
Prince
15
Mini–Flo, Standard &
(0.4)
Fast-Ball
39
Husky 715, Prince
(1.1)
Husky 1030
39
Husky 715, Prince
(1.1)
Husky 1030
90
(2.5)
Standard,
Monark , Fireball ,
President
90
(2.5)
Monark, President
Lube Ranger
90
Monark, President,
(2.5)
Husky 1030, Glutton
90
Pressure Tanks
(2.5)
COPYRIGHT 1991, GRACO INC.
104–815
104–266,
104–267
171–937,
110–234
1/8
1/8
Knob
0–60 psi
(0–4.2 bar)
1/4
1/8
Knob
0–180 psi
(0–11 bar)
1/8
1/8
Knob
0–125 psi
(0–9 bar)
1/4
1/4
Knob
0–125 psi
(0–9 bar)
3/8
1/4
Tee
0–250 psi
(0–17.5 bar)
1/2
1/4
Tee
0–250 psi
(0–17.5 bar)
1/2
1/4
Tee
0–125 psi
(0–9 bar)
1/2
1/4
Tee
0–125 psi
(0–9 bar)
308–167
Rev A
(Replaces manual
307–204)
110–318
110–341
111–804
Nitrile Rubber
Nitrile Rubber
None–piston type
None–piston type
Nitrile Rubber
Nitrile Rubber
Nitrile Rubber
Mylar
Advertisement
Related Manuals for Graco 104-815
Summary of Contents for Graco 104-815
- Page 1 203–716 Lube Ranger 202–156 202–858 104–267 Monark, President, 0–125 psi Nitrile Rubber (2.5) Husky 1030, Glutton (0–9 bar) 206–237 171–937 Pressure Tanks 0–125 psi Mylar (2.5) (0–9 bar) GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441 COPYRIGHT 1991, GRACO INC.
- Page 2 DIMENSIONS Model 104–815 (1/8 in. Port) Model 110–318 (1/4 in. Port) Model 110–341 (1/8 in. Port) Model 111–804 (1/4 in. Port) 3.0 in. (88 mm) 3 in. (80 mm) 4.1 in. (104 mm) 1.56 in. 1.5 in. 1.61 in. (40 mm) (38 mm) (41 mm) 0.5625 in.
-
Page 3: Installation
INSTALLATION Before installing any air line components, blow out the To provide the user with a variety of assembly options, a pipe line to remove scale and other debris. Use pipe com- bleed–type master air valve is not included with all regu- pound or tape sparingly and only on male threads. -
Page 4: Repair Kits
REPAIR WARNING Wash the parts with household soap and water or dena- tured alcohol. Wipe the parts dry with a clean, soft, dry Relieve air and fluid pressure before servicing the rag. Use compressed air to blow dirt and contaminants regulator. - Page 5 REPAIR KIT DRAWINGS FOR REGULATORS 104–815, 110–318 ADJUSTING KNOB ADJUSTING SCREW Knob Kit 104–816 COMPRESSION SPRING SPRING HOUSING Torque to 45 in-lb DIAPHRAGM (51 N.m) Diaphragm Kit 104–817 DISC COMPRESSION SPRING FOR REGULATORS 104–267, 171–937, T–HANDLE 104–266, 110–234 LOCKNUT T–Handle Kit SPRING GUIDE Ç...
-
Page 6: Parts List & Drawing
PARTS LIST & DRAWING 3/8 npt 1/4 npt OUTLET OUTLET 1/4 npt 3/8 npt INLET INLET 0762 Model 110–147 0761 Model 109–075 Part No. Description Part No. Description 110–318 1/4” AIR REGULATOR 100–403 PLUG, pipe, 1/8 npt 110–234 3/8” AIR REGULATOR 110–319 GAUGE, 0–200 psi (0–14 bar) 100–721... - Page 7 PARTS LIST & DRAWING 1/4 npt 3/8 npt 3/8 npt INLET OUTLET INLET 3/8 npt OUTLET Model 202–156 0759 0758 Model 206–849 Part No. Description Part No. Description 104–266 1/2” AIR REGULATOR 100–721 PLUG, pipe, 1/4 npt 104–266 1/2” AIR REGULATOR 100–960 GAUGE, 0–200 psi (0–14 bar) 100–721...
-
Page 8: Important Phone Numbers
WARRANTY Graco warrants all equipment manufactured by it and bearing its name to be free from defects in material and workmanship on the date of sale by an authorized Graco distributor to the original purchaser for use. As purchaser’s sole remedy for breach of this warranty, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment proven defective.
