LV Furniture BABY BOOM 31 Assembly Instruction Manual

Hide thumbs Also See for BABY BOOM 31:

Advertisement

Quick Links

ASSEMBLY
INSTRUCTION
2.5 hrs
APPROXIMATE ASSEMBLY TIME
EXCLUDING GLUE SETTING TIME
f8 m m
REQUIRED ASSEMBLY TOOLS
342 mm
DESCRIPTION:
Type 31
BABY BOOM
2 PERSON ASSEMBLY
900 mm
FLOOR AREA
CEILING HEIGHT
2,5M X 2,5M
REQUIRED ASSEMBLY SPACE
M E A
S U R
E
ASSEMBLED DIMENSIONS
2,0M
1/14

Advertisement

loading
Need help?

Need help?

Do you have a question about the BABY BOOM 31 and is the answer not in the manual?

Questions and answers

Summary of Contents for LV Furniture BABY BOOM 31

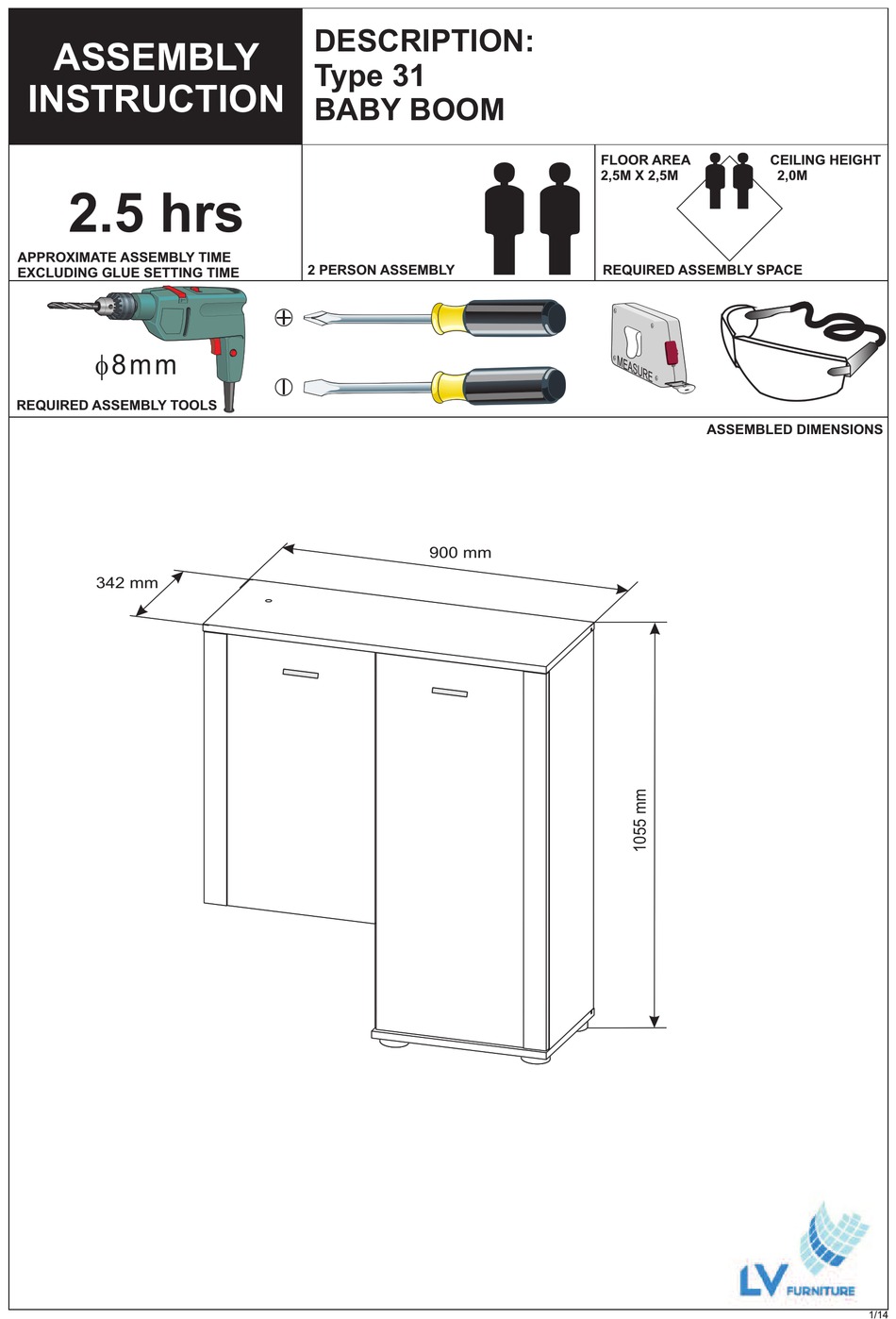

  • Page 1 DESCRIPTION: ASSEMBLY Type 31 INSTRUCTION BABY BOOM FLOOR AREA CEILING HEIGHT 2,5M X 2,5M 2,0M 2.5 hrs APPROXIMATE ASSEMBLY TIME 2 PERSON ASSEMBLY REQUIRED ASSEMBLY SPACE EXCLUDING GLUE SETTING TIME f8 m m M E A S U R REQUIRED ASSEMBLY TOOLS ASSEMBLED DIMENSIONS 900 mm 342 mm...
