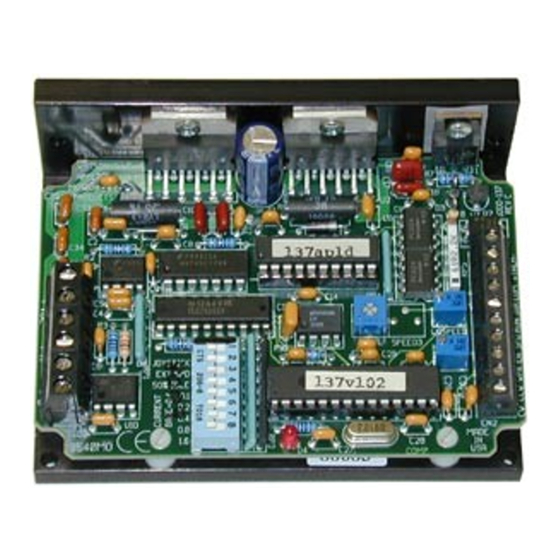

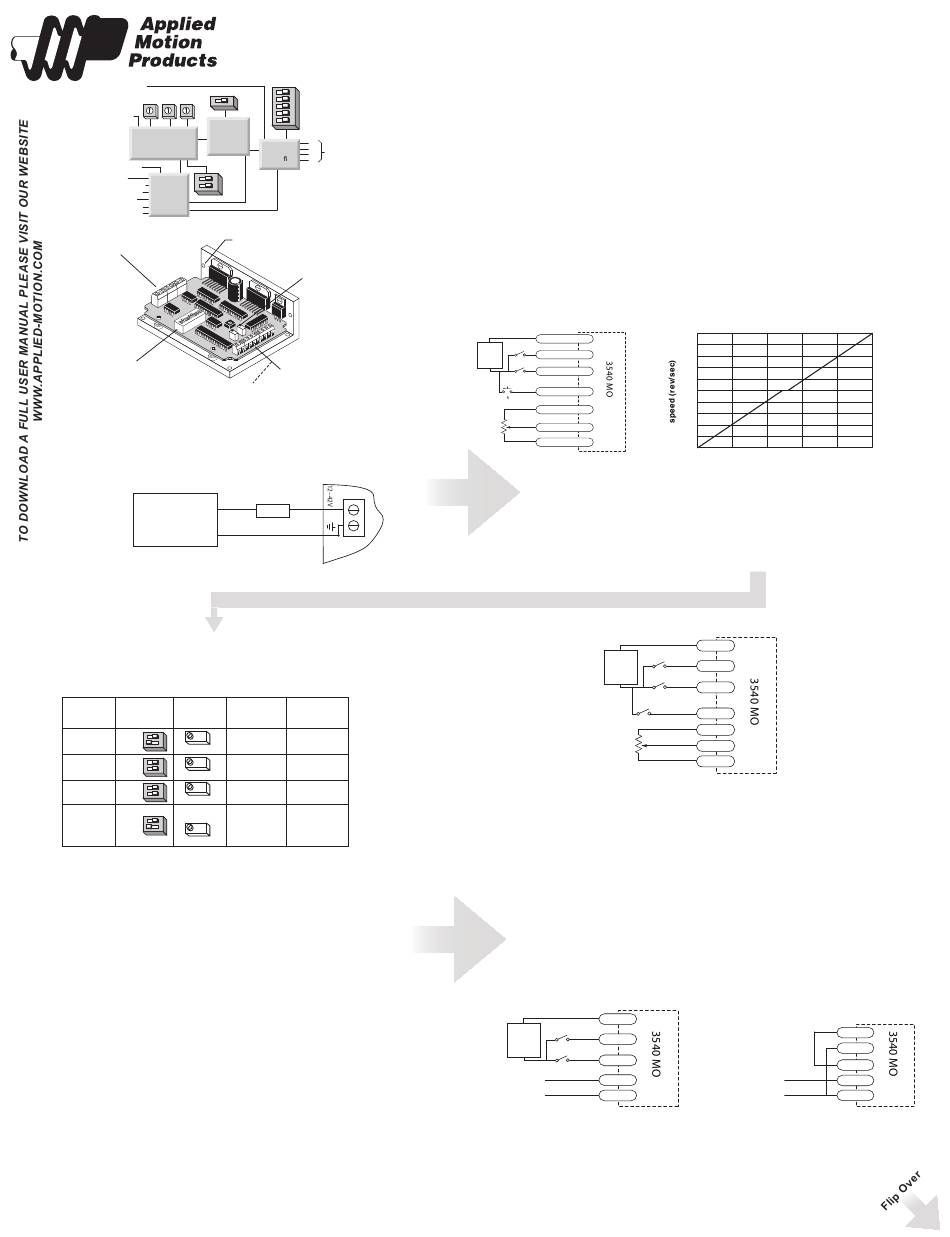

Applied Motion Products 3540MO Quick Setup Manual

12-42 VDC
HI LO
speed speed accel
ext
speed
input
Digital Oscillator
&
Joystick Interface
common
run
hi/lo speed
Optical
direction
enable Isolation
tach out+
tach out-
power connector
• DC power supply
• motor
DIP switches
• motor current
• idle current reduction
• joystick mode
• ext speed mode
Connecting the Power Supply
motor
supply
12-42 VDC
DO NOT REVERSE WIRES - THIS WILL DAMAGE THE DRIVE
controls direction of rotation. SPD input selects the speed range.
If the motor is wired according to the motor wiring section,
Motor speed and the function of the RUN input can be determined from the
following table.
SPD switch speed set
input #2
joystick
ON
ext speed
LO SPEED
joystick
ON
ext speed
LO SPEED
joystick
OFF/open
ext speed
HI SPEED
WPR input
trimmed by
joystick
OFF/open
ext speed
HI SPEED
SPD (speed) input selects speed range. LO SPEED and HI SPEED pots adjust the 2
speed ranges.
EXT SPD=ON speed adjusted by LO SPEED trimpot - range up to 5 rev/sec
EXT SPD=OFF speed adjusted by HI SPEED trimpot - range up to 25 rev/sec
If switch #2 is toward the words EXT SPEED, then the high speed is proportional to
the voltage applied to the WPR terminal, and is trimmed by the HI SPEED pot. You
can connect an external 1K - 5K pot to the WPR, CW and CCW terminals, or you can
apply a 0 to 5 volt analog signal to the WPR terminal (ground your analog signal to the
CCW pin.) The high speed range is 0 - 25 rev/sec (0 - 1500 rpm.) You can reduce the
range by turning down the HI SPEED pot.
When switch #2 is away from the EXT SPEED label, the high speed is set by the HI
SPEED pot and the WPR input does nothing.
Never apply more than 5 volts DC or less than 0 volts to the WPR pin.
In both operating modes, the accel/decel rate is set by the ACCEL pot. The
range is 1 to 250 rev/sec/sec.
Doc 920-0017B - 8/27/12
Quick Setup Guide
3540MO
current
50% idle
0.4 to 3.5
A/phase
Microstep
Sequencer
A+
A– to
MOSFET
B+
motor
Ampli er
B–
joystick
ext speed
mounting hole (1 of 6)
trim pots
• accel/decel rate
• low speed
• high speed
input connector
• run/stop (cw limit)
• dir (ccw limit)
Always use the blue & white
• high/low speed select
Applied Motion screwdriver
• amp enable
with this connector. Larger
• ext speed pot/joystick
screwdrivers may remove the
• tach out
plastic dimples that prevent
the screws from falling out.
4A slow
blow
fuse
+
–
when RUN when RUN
by goes ON goes OFF
accel to speed instant stop
accel to speed instant stop
accel to speed decel to stop
accel to speed decel to stop
Modes of Operation
Note: We refer to an input as being ON when current is flowing
through the input. A signal is OFF when no current is flowing. An
input is OFF when COM and the input terminal are at the same voltage,
or when the input is left unconnected (open).
The 3540 MO features two modes of operation.
Joystick mode
Joystick mode is set by moving switch #1 toward the word "Joystick". Switch #2
(EXT SPEED) has no effect in Joystick mode.
Joystick mode - speed and direction are determined by the voltage applied to the WPR
(wiper) terminal. 2.5 volts is "stopped" (no speed). Increasing the WPR voltage
toward 5 volts results in forward motion: speed increases with voltage. Decreasing
the WPR voltage from 2.5 toward 0 results in reverse motion, with speed increasing
as voltage decreases. The SPD (speed) input selects speed range. LO SPEED and HI
SPEED pots adjust the 2 speed ranges.
EXT SPD=ON speed adjusted by LO SPEED trimpot - range up to 5 rev/sec
EXT SPD=OFF speed adjusted by HI SPEED trimpot - range up to 25 rev/sec
In joystick mode, limit switches can be connected to the 3540 MO.
Refer to the full manual - available from the website for connection details.
COM
+
fwd limit switch
5-24
RUN (FWD LIMIT)
VDC
SUPPLY
-
DIR (REV LIMIT)
rev limit switch
SPD
joystick " re" button
CW
fwd
5kW
WPR
joystick
rev
CCW
Typical wiring for Joystick Mode
Oscillator mode
Oscillator mode is selected by moving switch #1 away from the word Joystick.
Thespeed can be controlled by on-board potentiometers and/or
by an external analog voltage. RUN input starts and stops the motor. DIR input
run/stop switch
+
(closed=run)
5-24
VDC
SUPPLY
-
direction switch
speed switch (closed=lo speed)
cw
5kW
pot
ccw
Typical wiring for Oscillator Mode using external speed Control pot
Speed Control from a 0 to 5 Volt Analog Signal
In oscillator mode, the 3540MO can rotate the motor a speed proportional to an
analog voltage. The voltage must be applied to the WPR terminal. The direction of
rotation will be controlled by the digital DIR input and the motor can be stopped
either by setting the analog input voltage to 0 or by turning the digital RUN signal
off.
To use the 3540 MO in this mode, set switch #1 away from the JOYSTICK label,
and set switch #2 toward the EXT SPEED label.
DRAWING...........
The HI SPEED pot sets the maximum speed (the motor speed when the analog
signal is at 5 volt DC). The range is 0 - 25 rev/sec.
Wiring diagrams and a plot of speed vs voltage are shown below.
COM
run/stop switch
+
(closed=run)
5-24
RUN
VDC
SUPPLY
-
DIR
direction switch
0 - 5V speed signal WPR
signal return CCW
Wiring for Speed Control by 0 - 5 Volt Analog Signal
(Direction Control by Digital Signal or Switch)
25
20
15
10
5
0
-5
-10
-15
-20
-25
0 1 2 3 4
volts
Speed vs Input Voltage
Joystick mode, SPD input off (or open)
HI SPEED pot at maximum
COM
RUN
DIR
SPD
CW
WPR
CCW
COM
RUN
CW
WPR
0 - 5V speed signal
CCW
signal return
Wiring for Speed Control by 0 - 5 Volt Analog Signal
(Unidirectional Rotation)
5
volts
