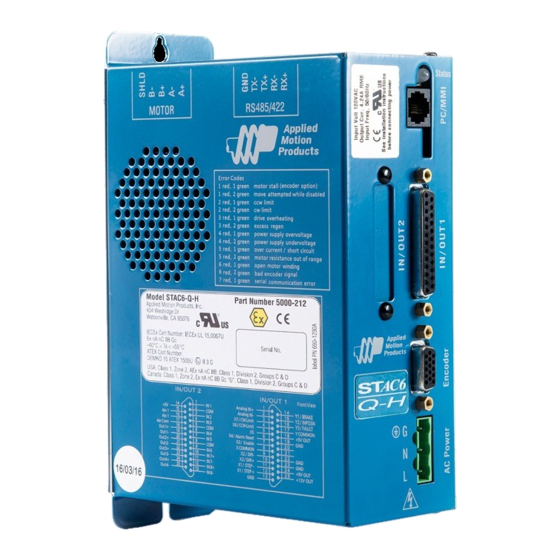

Applied Motion Products STAC6-Q-H Quick Setup Manual

STAC6
STAC6-Q-H Std Quick Setup Guide
Requirements
To begin, make sure you have the following equipment:
▪ Only use a compatible Hazardous Location Certified stepper motor. Consult the factory.
▪ A small flat blade screwdriver for tightening the connectors.
▪ A personal computer running Microsoft Windows 7, 8, 10 or XP, 32-bit or 64-bit.
▪ For STAC6-Q-H, ST Configurator™ software, available at: http://www.applied-motion.com/products/software
▪ An Applied Motion programming cable (included).
▪ For more information, the STAC6-Q-H Hardware Manual is available by request by emailing support@applied-motion.com.

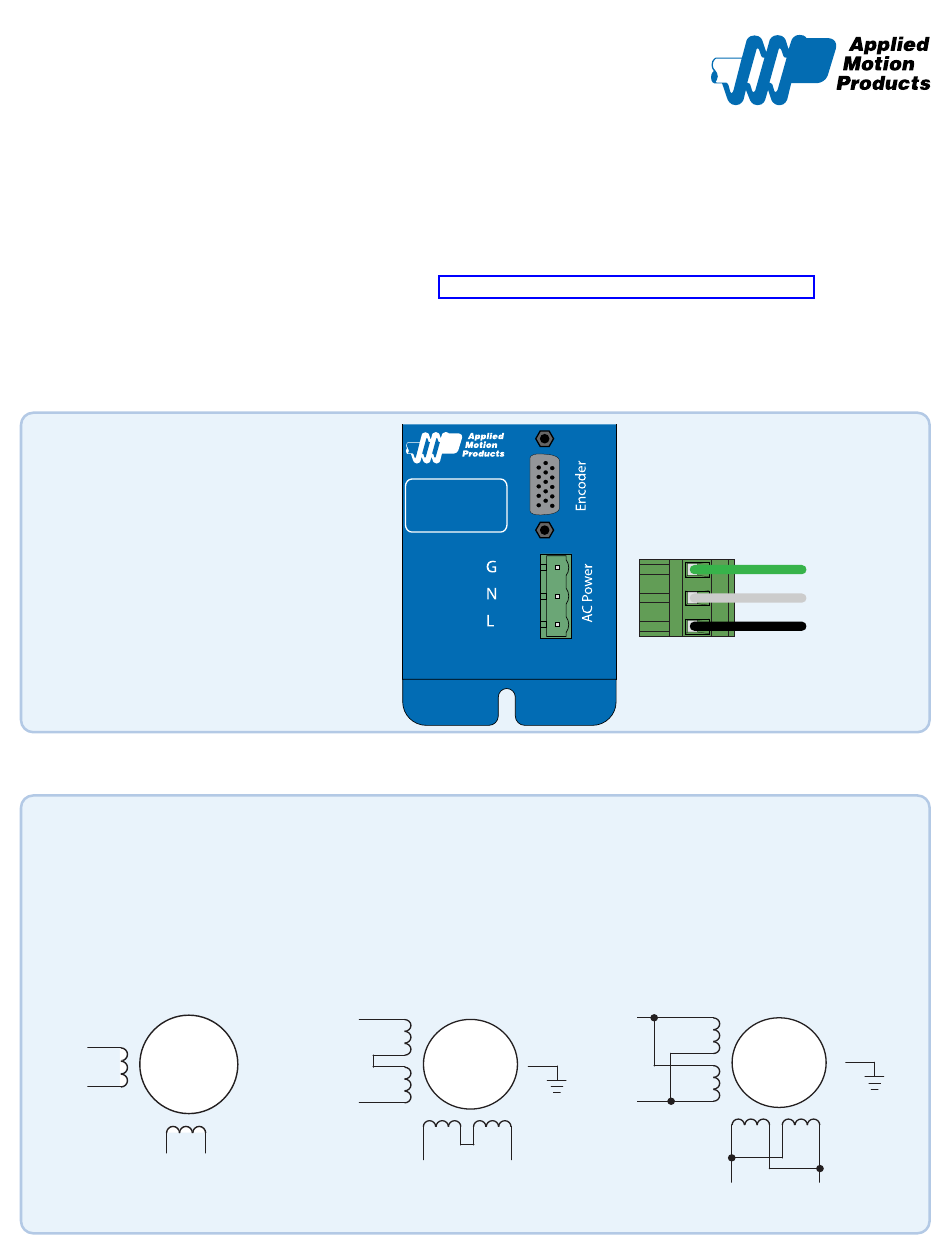

Step 1
Wire the drive to the AC power source.
(Apply power only after reading the following
safety instructions and Step 3 is completed.)
STAC6x drives accept 94-135VAC
If using an external fuse, we recommend the
following fast-acting fuses:
STAC6x: 6 amp Connecting the Motor
ONLY use a compatible Hazardous Location
Certified step motor. Consult Factory.
Never connect or disconnect the motor
while the power is on.
Step 2
Connecting the Motor
ONLY use a compatible Hazadous Location Certified step motor. Consult Factory.
Never connect or disconnect the motor while the power is on.
Note: it is highly recommended that you use a motor with a shielded cable with the STAC6.
Connection diagram shown below:
4-LEADS
Red
4
A+
lead
motor
A–
Blue
Yellow
B+
4 Leads
8 LEADS
White
A+
Orange
Brown
A–
Green
White
B–
8
lead SHLD
motor
Black
Red
Yellow Blue
B+ B–
Series Connected
White
A+
Brown
8
lead
motor
Orange
A–
Green
Red
Blue
Yellow
B+
8 Leads Parallel Connected
920-0106 Rev B Sht 1 of 4
Earth Ground
Neutral
Line (Hot)
SHLD
Black
B–
