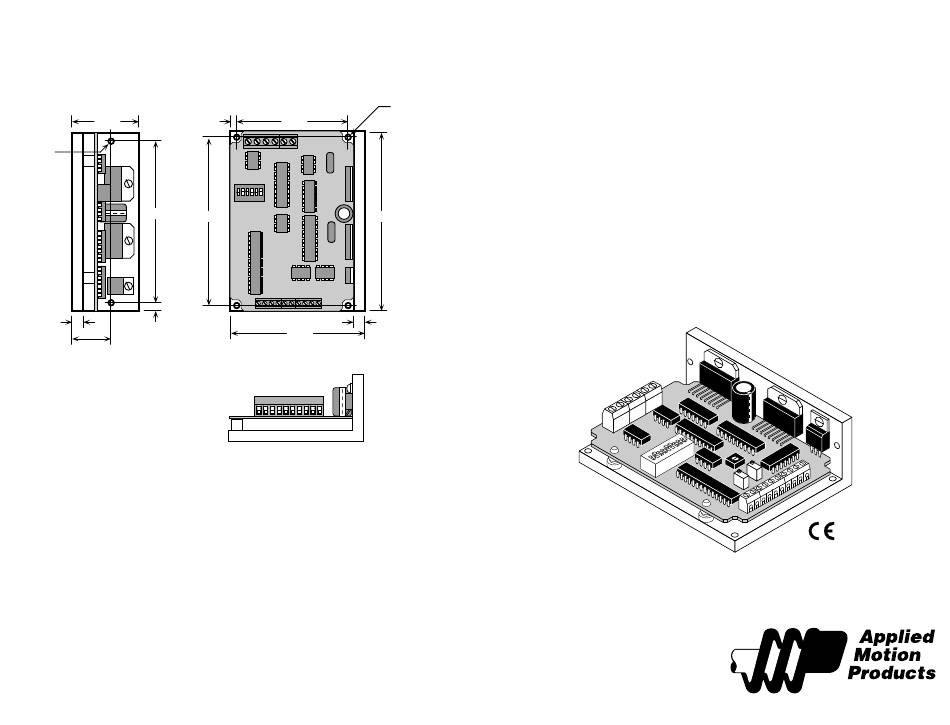

Mechanical Outline
6/1/99
User's Manual
4x Ø.125
1.50"
0.125"
2.50"
2x Ø.125
3540 MO
3.70"
3.75"
4.00"
Step Motor Driver
0.25"
0.25"
0.15"
3.00"
.875"
Copyright 1999
Applied Motion Products, Inc.
404 Westridge Drive • Watsonville, CA 95076
motors • drives • controls
Tel (831) 761-6555
(800) 525-1609
Fax (831) 761-6544
Advertisement
Table of Contents
Related Manuals for Applied Motion Products Mechanical Outline 3540
Summary of Contents for Applied Motion Products Mechanical Outline 3540
- Page 1 2x Ø.125 3540 MO 3.70" 3.75" 4.00" Step Motor Driver 0.25" 0.25" 0.15" 3.00" .875" Copyright 1999 Applied Motion Products, Inc. 404 Westridge Drive • Watsonville, CA 95076 motors • drives • controls Tel (831) 761-6555 (800) 525-1609 Fax (831) 761-6544...
- Page 2 Technical Specifications Amplifiers Dual, bipolar MOSFET H-bridge, pulse width modulated three state switching at 20kHz. 12-42 VDC input. 0.4 - 3.5 amps/phase output current, switch selectable in 0.1 A increments. 122 watts maximum output power. Automatic idle current reduction (switch selectable), reduces current to 50% of setting after one second.
-
Page 3: Table Of Contents
In that sense, unregulated power supplies are better. They are also less expensive. The PS430 from Applied Motion Products is a good supply to use with the 3540 MO. -
Page 4: Introduction
You can mount your drive on the wide or the narrow side of the chassis. If you Thank you for selecting an Applied Motion Products motor control. We hope our mount the drive on the wide side, use #4 screws through the four corner holes. For dedication to performance, quality and economy will make your motion control narrow side mounting applications, you can use #4 screws in the two side holes. -
Page 5: Getting Started
50% anytime the motor is not moving. This reduces drive heating by about 50% To use your Applied Motion Products motor control, you will need the following: and lowers motor heating by 75%. This feature can be disabled if desired so that full current is maintained at all times. -
Page 6: Modes Of Operation
Modes of Operation Current Setting Table Note: We refer to an input as being ON when current is flowing through the input. A signal is OFF when no current is flowing. An AMPS/ AMPS/ AMPS/ AMPS/ input is OFF when COM and the input terminal are at the same voltage, PHASE PHASE PHASE... - Page 7 Microstepping Most step motor drives offer a choice between full step and half step resolutions. In most full step drives, both motor phases are used all the time. Half stepping divides fwd limit switch 5-24 each step into two smaller steps by alternating between both phases on and one RUN (FWD LIMIT) phase on.
- Page 8 Oscillator Mode Four lead motors can only be connected In oscillator mode, the 3540MO uses the direction set by the DIR input. Off, or one way. Please follow the sketch at the open, gives clockwise motion, if the motor is wired according to pages 12 and 13. right.
- Page 9 open collector TTL devices are directly compatible with this drive, as are typical In both operating modes, the accel/decel rate is set by the ACCEL pot. The PLC and proximity sensor outputs. range is 1 to 250 rev/sec/sec. Turning the pot clockwise makes the motor start and stop faster, but if you set it too high the motor may run out of torque and stall.
- Page 10 The HI SPEED pot sets the maximum speed (the motor speed when the analog Tach Output signal is at 5 volt DC). The range is 0 - 25 rev/sec. The Tach Out signal is provided for measuring the motor speed. It generates 100 Wiring diagrams and a plot of speed vs voltage are shown below.
