Heatstore DYNAMIC HSDR500T Installation And Operating Instructions For Manual And Remote Control Options

Installation and Operating Instructions for
HSDR Dynamic Electric Radiators

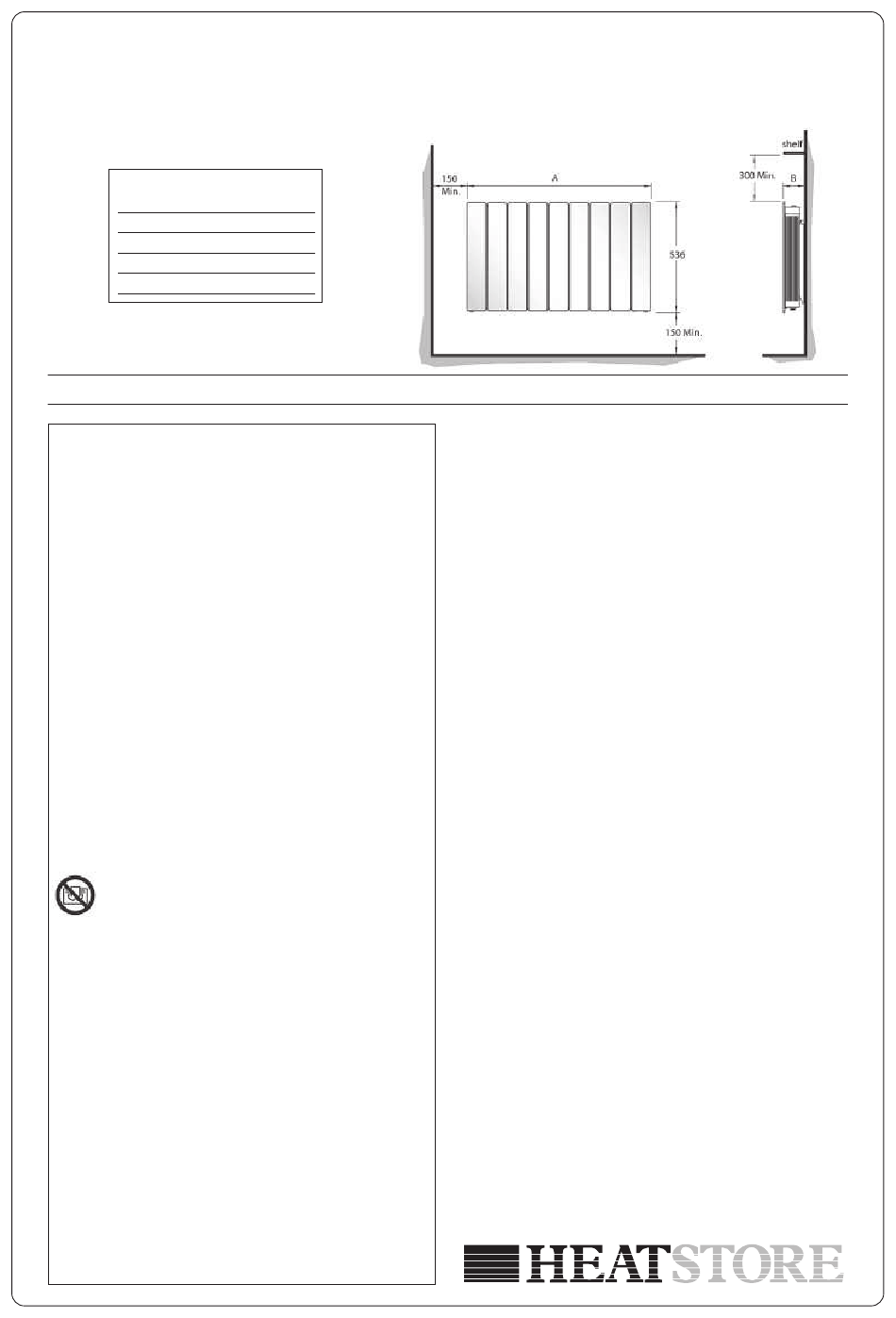

Dimensions
Mode
l Rating
HSDR500 0.5kW
T
HSDR750T 0.75kW
HSDR1000T 1.0kW
HSDR1500T 1.5kW
HSDR2000T 2.0kW
DYNAMIC
IMPORTANT: THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE
IMPORTANT SAFETY ADVICE
When using electrical appliances, basic precautions
should always be followed to reduce the risk of fire,
electrical shock, and injury to persons, including the
following:
IMPORTANT – The wall bracket supplied with the appliance
must be used.
WARNING - DO NOT USE THIS HEATER IN THE
IMMEDIATE SURROUNDINGS OF A BATH, A
SHOWER OR A SWIMMING POOL.
IMPORTANT – If the heater is installed in a room
containing a bath or shower, it must be so installed that
switches and other controls cannot be touched by a
person using a bath or shower.
Do not use outdoors.
Do not locate the heater immediately below a fixed
socket outlet or connection box.
Do not cover the heater. Do not place material or
garments on the heater, or obstruct the air circulation
around the heater, for instance by curtains or
furniture, as this could cause overheating and a fire
risk.
NEVER cover or obstruct in any way the heat outlet
slots at the top of the heater or the air inlet slots in the
base of the heater.
The heater carries the Warning symbol
indicating that it must not be covered.
WARNING – THE SURFACES OF THIS HEATER
CAN BE HOT.
Momentary contact with any part of the heater should
not cause injury.
This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety. Children should be
supervised to ensure that they do not play with the
appliance.
Note that due care and consideration must be taken
when using this heater in series with a thermal control, a
program controller, a timer or any other device that
switches on the heat automatically, since a fire risk exists
when the heater is accidentally covered or displaced.
If the supply cord is damaged it must be replaced by the
manufacturer or service agent or a similarly qualified
person in order to avoid a hazard.
A B
503 104
503 104
671 104
741 104
911 104
Figure 1
Electrical
WARNINGTHIS APPLIANCE MUST BE EARTHED
The electrical installation must be carried out by a
competent electrician, and be in strict accordance with the
current IEE regulations for Electrical Equipment in Buildings.
The wires in this mains lead are coloured in accordance with
the following code :
GREEN AND YELLOW : EARTH
BLUE : NEUTRAL
BROWN : LIVE
BLACK : PILOT WIRE
- see also 'Pilot Wire Connection'.
The heater is fitted with a length of flexible cable type
H05VVF size 4 x 1.0mm for connection to the fixed wiring
2
of the premises through a suitable connection box
positioned adjacent to the heater.
The supply circuit to the heater must incorporate a double
pole isolating switch having a contact separation of at least
3mm.
Pilot Wire Connection
The BLACK control wire is designed to carry a signal from
the slot in programmer. If, however a programmer is not
being used, the pilot wire should be isolated in accordance
with the current IEE Wiring Regulations.
IMPORTANT - DO NOT connect the BLACK pilot wire to earth.
Care should be taken with the installation of the pilot wire(s)
as when switching to background (set back) they become
energised at 240V although only at a current of less than
100mA. In every case a suitable means of isolation must be
provided for the pilot wire and marked to indicate that two
sources of supply may be present at the heater.
Where pilot wires are installed separately from the heater
final sub-circuit they should be protected, double insulated
and carry their own integral earth continuity conductor.
Supplementary Earth Bonding
Should Equipotential Earth Bonding be required the earthing
conductor in the supply cord is deemed to provide the
supplementary bonding connection (see Regulation 544.2.5,
17th Edition I.E.E. Wiring Regulations).
