Important Safety Advice
General Safety Precautions
Key safety guidelines including warnings about water proximity, location, covering the heater, and burn risks.
Mandatory Earthing and Wiring
Earthing Requirements and Color Codes
Details mandatory earthing, explains wiring color codes, and specifies connection requirements.
Oil Container, Disposal, and Bonding
Information on the oil container, disposal regulations, and supplementary earth bonding.
Overheat Protection System
Thermal Cut-out Mechanism
Describes the thermal cut-out feature that prevents overheating by cutting power.
User Introduction and Features
Product Overview and Technologies

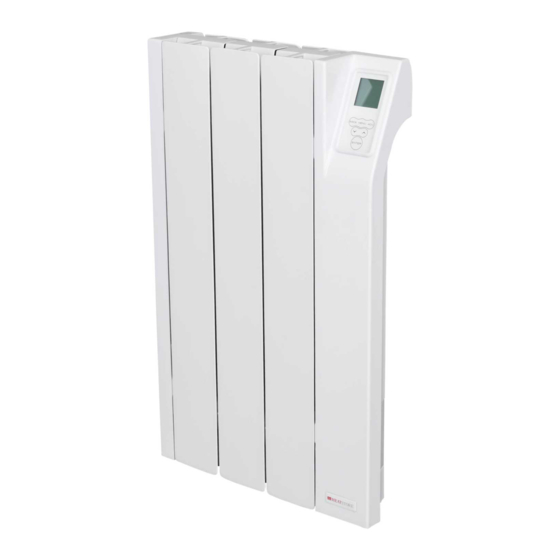

Overview of the Heatstore Dynamic Intelirad radiator and its advanced energy-saving features.
General Information and Mounting
Heater Design and Placement Guidelines
Details the heater's design for wall mounting and general placement guidelines.
Wall Mounting Bracket Usage
Mandatory use of the wall bracket and positioning instructions for safe installation.
Drilling and Fixing Steps
Step-by-step guide for removing brackets, using templates, drilling, and fixing.
Quick Start Guide
Heater Control Functionality
Explains how the heater control allows selection of heat and temperature based on modes.
Setting Time and Temperature
Instructions for setting the date, time, and desired room temperature on the heater.
Timer Mode Overview
Details the four pre-programmed timer modes available for the heater.
Activating Child Lock
Instructions on how to lock and unlock the heater controls to prevent accidental changes.
Choosing Timer Modes
Selecting and Modifying Timer Modes
Guide to selecting, previewing, and modifying timer modes like Out All Day, Home All Day, and User Timer.
Advance Functionality
Temporary Heating Adjustments
How to temporarily adjust heating by starting the next Comfort On period early or turning off early.
Advance Boost Mode
Using the Advance button for temporary heating boosts of one, two, three, or four hours.
Heater Operation
Heater Control Panel Overview
Overview of the heater's electronic controller, including the display screen and six touch buttons.
Thermostat Accuracy and Range
Details the accurate electronic thermostat, its temperature range, and default settings.
Control Functions Explained
Button and Screen Functions
Detailed explanation of the Display Screen, Menu, Back, Arrows, Enter, Heating Status, and Advance buttons.
Advance Button Functions
How the Advance button overrides settings, switches modes, and enters Boost mode.
Main Screen and Time Setting
Main Screen Display Overview
Details what the main screen displays, including temperature, mode, and sleep functionality.
Setting the Date and Time
Step-by-step instructions for setting the heater's internal clock and calendar function.
Modes of Operation
Timer Mode Options
Details the four timer modes: Out All Day, Home All Day, Holiday, and User Timer.
Constant Temperature Modes
Explains the constant temperature modes: Manual (21°C), Eco Mode (18°C), and Frost Protect (7°C).
Choosing and Setting Modes
Configuring Timer Modes
Instructions on selecting, previewing, modifying, copying, and clearing timer mode settings for daily or weekly use.
Advanced Mode Settings
Holiday Mode and Anticipatory Control
Details setting holiday duration and temperature, and how anticipatory control affects heating periods.
Setting Constant Heat Modes
Guide to selecting and setting constant heat modes like Manual, Eco, or Frost Protect.
Advance Function
Temporary Heating Adjustments
How the Advance function temporarily changes the heating profile for Comfort On/Off periods.
Boost Mode
Temporary Heating Boosts
Using the Advance button to activate temporary heating boosts for one to four hours.
Options Menu
Customizing Settings
Details available options: DST Rule, Auto Lock, Sound feedback, Service Info, and Temperature Units.
Child Lock Feature
Locking and Unlocking Controls
Instructions on how to lock and unlock the heater controls using the Back and Enter buttons.
User Information Menu
Feature Settings and Resets
Details on SP Range, Open Window, Bluetooth, EcoStart, and Factory Reset options.
Energy Saving Tips
Heating and Hot Water Efficiency
Tips for reducing energy use, including thermostat settings, insulation, and water heating.
General Home Energy Efficiency
Tips for saving energy on lighting and cooking, such as using low-energy bulbs and efficient cooking methods.
Important Information
Initial Operation and Ventilation
Information regarding potential initial odour and the recommendation for good room ventilation.
Cleaning and Maintenance
Safety warning and instructions for cleaning the heater, including disconnecting power and releasing from wall bracket.
Recycling and Disposal
Guidance on recycling electrical products at their end of useful life within the European Community.
Warranty and After-Sales Service
Information on product warranties, coverage, and contact details for after-sales support.
