Installation & Control Guide for Low Surface
Temperature Panel Heaters with Intelligent Fan
Control & Electronic 7-Day Timer
Models
HSP500LST, HSP750LST, HSP1000LST, HSP1500LST
All electrical appliances produced for the Company are guaranteed for two years against faulty
material or workmanship.
This applies only if the appliance has been used for
purposes in accordance with the instructions provided and has not been connected to an
unsuitable electricity supply, or subject to misuse, neglect, damage or modified or repaired by any
person not authorised by us. This guarantee is offered to you as an extra benefit and does not affect
your legal rights.
The correct electricity supply voltage is shown on the rating label attached to the
appliance.
Reasonable care has been taken to ensure that this guide is accurate at the time of
printing. In the interest of progress the Company reserve the right to vary specifications from time
to time without notice.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Heatstore HSP500LST
Summary of Contents for Heatstore HSP500LST

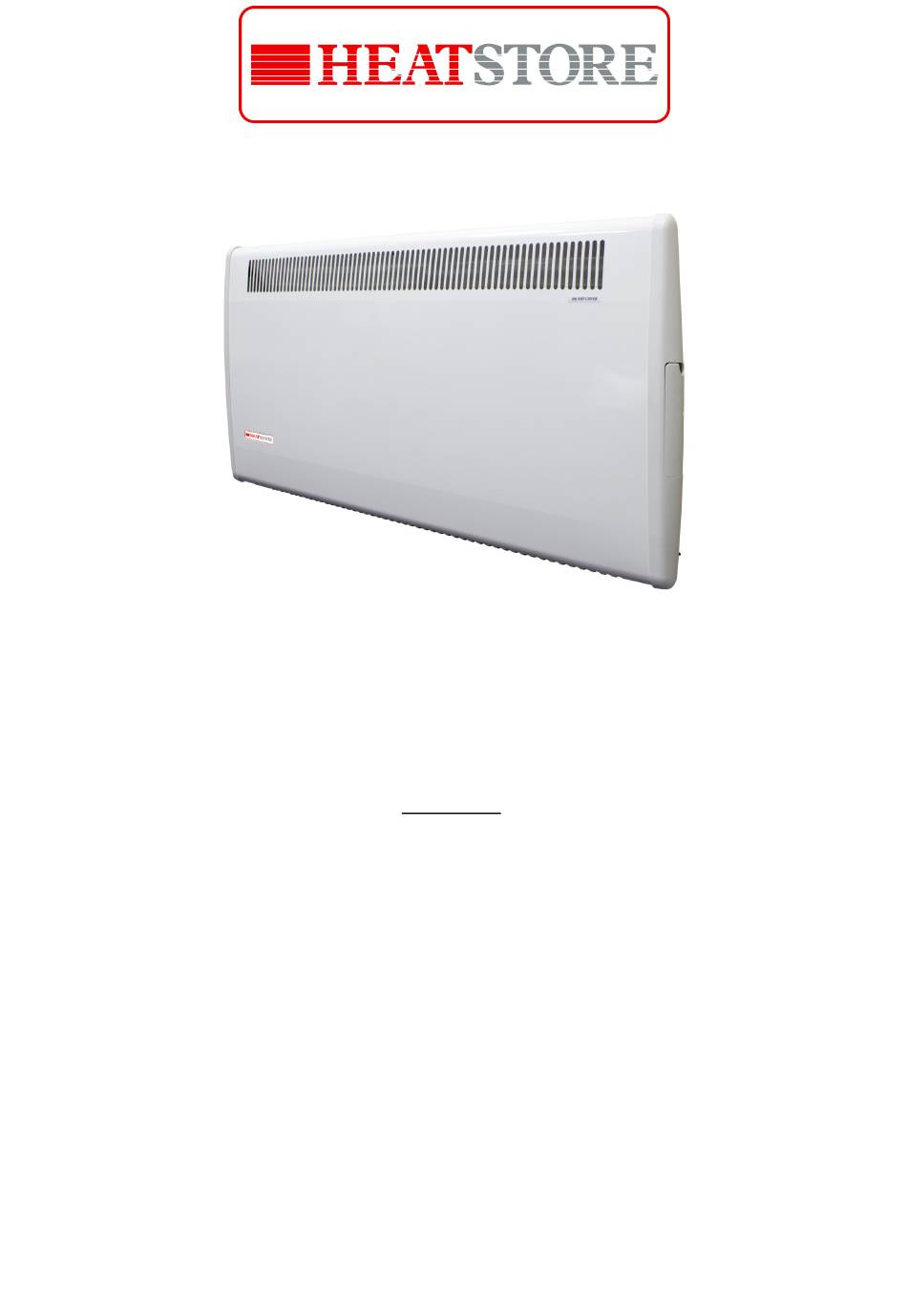

- Page 1 Temperature Panel Heaters with Intelligent Fan Control & Electronic 7-Day Timer Models HSP500LST, HSP750LST, HSP1000LST, HSP1500LST All electrical appliances produced for the Company are guaranteed for two years against faulty material or workmanship. This applies only if the appliance has been used for...
-
Page 2: General Safety
General Safety control operates again, the appliance should be checked by a Our Low Surface Temperature heaters qualified person. have been designed and built to the The heater carries a ‘Do Not Cover’ label to NHS requirement for safe surface warn the user that if the appliance is temperatures which is that no surface covered, there is a risk of overheating. -
Page 3: Installation
This allows the rating label to be viewed easily and also makes it easier to clean the unit. Full installation instructions can be found on page 6, section 19. ILLIMETRES ATTS 500/750 HSP500LST/HSP750LST 1000 HSP1000LST 1500 HSP1500LST See diagram below for Mounting Note: The heater must be secured using the securing screws as per Figures 1 to 3 before being switched on. -
Page 4: Temp Mode
Time Prog SET TIME SET PROGRAM PRESS AND HOLD PRESS AND HOLD FOR 5 SECONDS FOR 5 SECONDS MODE SELECTION EMPERATURE SET Mode BOOST, MANUAL, Temp WHEN DISPLAY SHOWS SETBACK AND ROOM TEMPERATURE, PROGRAM PRESS TO ADJUST 5. MAN - Manual Mode 1. - Page 5 9. Set 7-day programme HSP-LST An example of one day program on PROGRAM 1 PROGRAM 2 PROGRAM 5 PROGRAM 6 PROGRAM PROGRAM ºC 19ºC 22ºC 22ºC 16ºC 10ºC 4ºC 06:00 08:00 12:00 14:00 16:00 22:00 Logic diagram for setting program on HSP-LST The HSP-LST has a 7-day timer with up to 6 programming steps available for each day.
- Page 6 14. Keys locking 17. Status light on the heater Light colour Heater status Press and hold TIME and TEMP together for 5 seconds. The display will show symbol. Repeat the step to unlock. STAND-BY No heat output Reduced heat output 15.
- Page 7 (UK ONLY). Do not attempt to repair the heater. Locking screw Locking tab Contact details Heatstore Unit 12, Access 18, Bristol, BS11 8HT Telephone: 0117 923 5375 Email: enquiries@heatstore.co.uk http://www.heatstore.co.uk Issue 01 01/23...
