HSAC9000E HSAC12000E HSACW9000E
HSACW12000E HSACW14000E
HSACW15000E HSACW18000E
Installation and Operating
All electrical appliances produced by the Company are guaranteed for two years against faulty materials
or workmanship.
This applies only if the appliance has been used for purposes in accordance
with the instructions provided and has not been connected to an unsuitable electricity supply, or
subject to misuse, neglect, damage or modified or repaired by any person not authorised by us. This
guarantee is offered to you as an extra benefit and does not affect your legal rights.
The correct electricity supply voltage is shown on the rating label attached to the appliance.
Reasonable care has been taken to ensure that this guide is accurate at the time of printing.
In the interest of progress the Company reserve the right to vary specifications from time to time without
notice.
Commercial Air
Curtains
Manual
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Heatstore HSACW15000E
Summary of Contents for Heatstore HSACW15000E

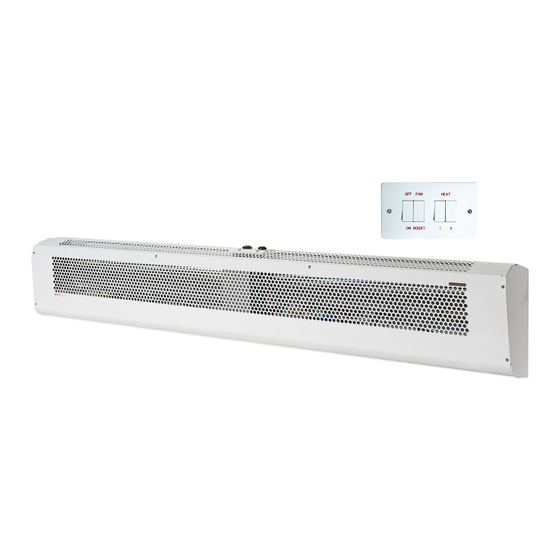

- Page 1 Commercial Air Curtains HSAC9000E HSAC12000E HSACW9000E HSACW12000E HSACW14000E HSACW15000E HSACW18000E Installation and Operating Manual All electrical appliances produced by the Company are guaranteed for two years against faulty materials or workmanship. This applies only if the appliance has been used for purposes in accordance with the instructions provided and has not been connected to an unsuitable electricity supply, or subject to misuse, neglect, damage or modified or repaired by any person not authorised by us.
-
Page 2: Table Of Contents
Contents General Information 1.1 Warnings 1.2 Health and Safety 1.3 Electrical Supply 1.4 Location 1.5 Clearance Distance 1.6 Standards 2 Introduction 2.1 Introduction 2.2 Mechanical switch 2.3 Touchscreen controller 3 Dimensions & fixing locations 3.1 Dimensions 3.2 Fixing location 4 Technical Specification 4.1 Specification 5 Wiring Details 5.1 Installer Wiring... -
Page 3: General Information
Care must be taken to allow complete free air approved by Heatstore will void movement into the inlet grilles of the unit to manufacturers warranty and potentially ensure correct working operation of the air cur- create a hazard. -
Page 4: Introduction
2.1 Introduction 2.2 Mechanical switch Controller Each air curtain is supplied with HSRCU2 This instruction manual describes the Heatstore mechanical switch. More details at Installer Commercial range of air curtains. They are wiring section. This controller will provide 2 fan designed for discreet positioning above the speed and 2 heat setting options. -
Page 5: Dimensions & Fixing Locations
3. Dimensions & Fixing locations 3.1 Air Curtain Dimensions 3.2 Fixing Locations REAR VIEW HSAC9000E and HSAC12000E REAR VIEW HSACW9000E, HSACW12000E and HSACW14000E REAR VIEW HSACW15000E and HSACW18000E... -
Page 6: Technical Specification
4. Technical Specifications 4.1 General Data HSACW9000E HSAC12000E HSAC9000E Maximum height Door width Heat medium Electric heating element Heat output Fan type 2x EC Crossflow 100mm Fan control Electronic fan speed control Heat switching Solid state electronic control Weight Electrical Data 415V 3ph 50Hz Supply voltage 415V 3ph 50Hz... - Page 7 4. Technical Specifications HSACW14000E 4.1 General Data HSACW12000E Maximum height Door width Heat medium Electric heating element Heat output Fan type 2x EC Crossflow 100mm Fan control Electronic fan speed control Switching type Solid state electronic control Weight Electrical Data Supply voltage 415V 3ph 50Hz Total load...
- Page 8 4. Technical Specifications 4.1 General Data HSACW15000E HSACW18000E Maximum height Door width Heat medium Electric heating element Heat output 3x EC Crossflow 100mm Fan type Fan control Electronic fan speed control Switching type Solid state electronic control Weight Electrical Data...
-
Page 9: Wiring Details
5. Wiring Details 5.1 Installer Wiring CAT5 cable Optional external temperature sen-... -
Page 10: Factory Wiring
Factory Wiring... -
Page 11: Network Wiring - Controller
Network Wiring - Controller CAT5 cable with RJ45 connectors can be used to network up to 7 air curtains in a daisy-chain configuration. The DIP switches 1, 2 and 3 are used to configure each air curtain with a unique address. -
Page 12: Network Wiring - Switches
Network Wiring - Switches The aircurtain can be also controlled by mechanical switches. In this configuration touchscreen controller or BMS controls will not work. To operate heater by mechanical switch- es, the DIP switches on the main pcb need to be set to 000X. The DIP switch 4 is used to select fan speed range. - Page 13 6. Modification for use on single phase (HSAC9000E only) The HSAC9000E is supplied as 3 phase only appliance. In order to use it with a single phase sup-ply, the internal wiring has to be modified. The appliance is supplied with a single phase conversion kit.
- Page 14 6. Modification for use on single phase (HSAC9000E only) 6.3 Internal wiring of the heating element for 3 phase operation 6.4 Modification of internal wiring of the heating element for single phase operation...
- Page 15 6. Modification for use on single phase (HSAC9000E only) Modification for use on single phase (HSAC9000E only)
-
Page 16: Installation Details
7. Installation Details 7.1 Screw location for grille removal Mounting All units should be installed horizontally directly over the door opening. It is recommended that the air curtain is installed on the inside of the building, within the open room space against a wall or ceil- ing. -
Page 17: Fault Detection And Leds
The HSAC9000E, 12000E, HSACW9000E, 12000E, 14000E heaters have four cut-outs in total and HSACW15000E, 18000E six cut-outs. In the unlikely event of electronic failure, the mechanical cut-outs will switch off power to the Secondary PCB heating element. -
Page 18: Bms Connection Modbus Protocol
9. BMS Connection MODBUS Protocol 9.1 BMS Connection RS485 serial half-duplex interface MODBUS RTU The heater is compatible with BMS systems using 9600 baud MODBUS protocol. 8 bits 1 start bit The connection to BMS system can be made using no parity + 2 stop bits one of the RJ45 connectors. -
Page 19: Touchscreen Controller Operation
The default Pin is set as 1234, but can be changed using the Change Pin button. If the PIN is forgotten contact Heatstore technical help. 10.5 Timer All functions and settings are available from this menu. -
Page 20: Timer - Time Schedule
10. Touchscreen Controller Operation - cont. 10.8 Operating Mode selection 10.6 Timer - time schedule There are 2 timer periods for each day available. One of four operating modes can be selected. Tapping the slider in the top right corner will Each mode uses a different method of select- change between 1 or 2 time periods. -
Page 21: Automatic Mode
10. Touchscreen Controller Operation - cont. 10.12 Temperature Mode 2 10.10 Automatic Mode This operating mode is suitable for situations Automatic Mode is the best choice for easy to where the heater is used to maintain the room set-up efficiency and comfort. Set the height by temperature or where the requirement is to ad- moving slider to the required position. -
Page 22: Heater Status
11. Touchscreen Controller Operation - cont. 10.13 Heater status 10.13 Heater status - cont. The Status screen provides an overview of values The general status screen shows details about from all connected heaters. The heaters need to the heater and all of the internal blower units. be run before some of the values can be calcu- The heater needs to be run before some of the lated. - Page 23 Contact details Heatstore Unit 12, Access 18, Bristol, BS11 8HT Telephone: 0117 923 5375 Email: enquiries@heatstore.co.uk http://www.heatstore.co.uk Issue 3 01/23...
