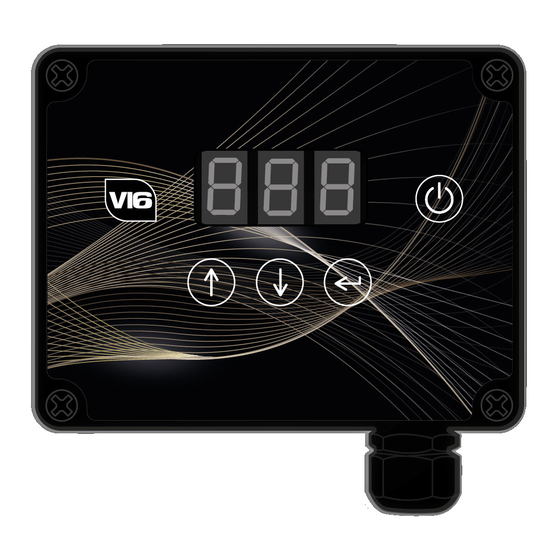

Spring V16 HC RW Quick Start Manual

Reel winder
Hide thumbs
1
2
3
4
5

Advertisement

Quick Links

Download this manual
Reel Winder
1 - Wiring
+
Battery

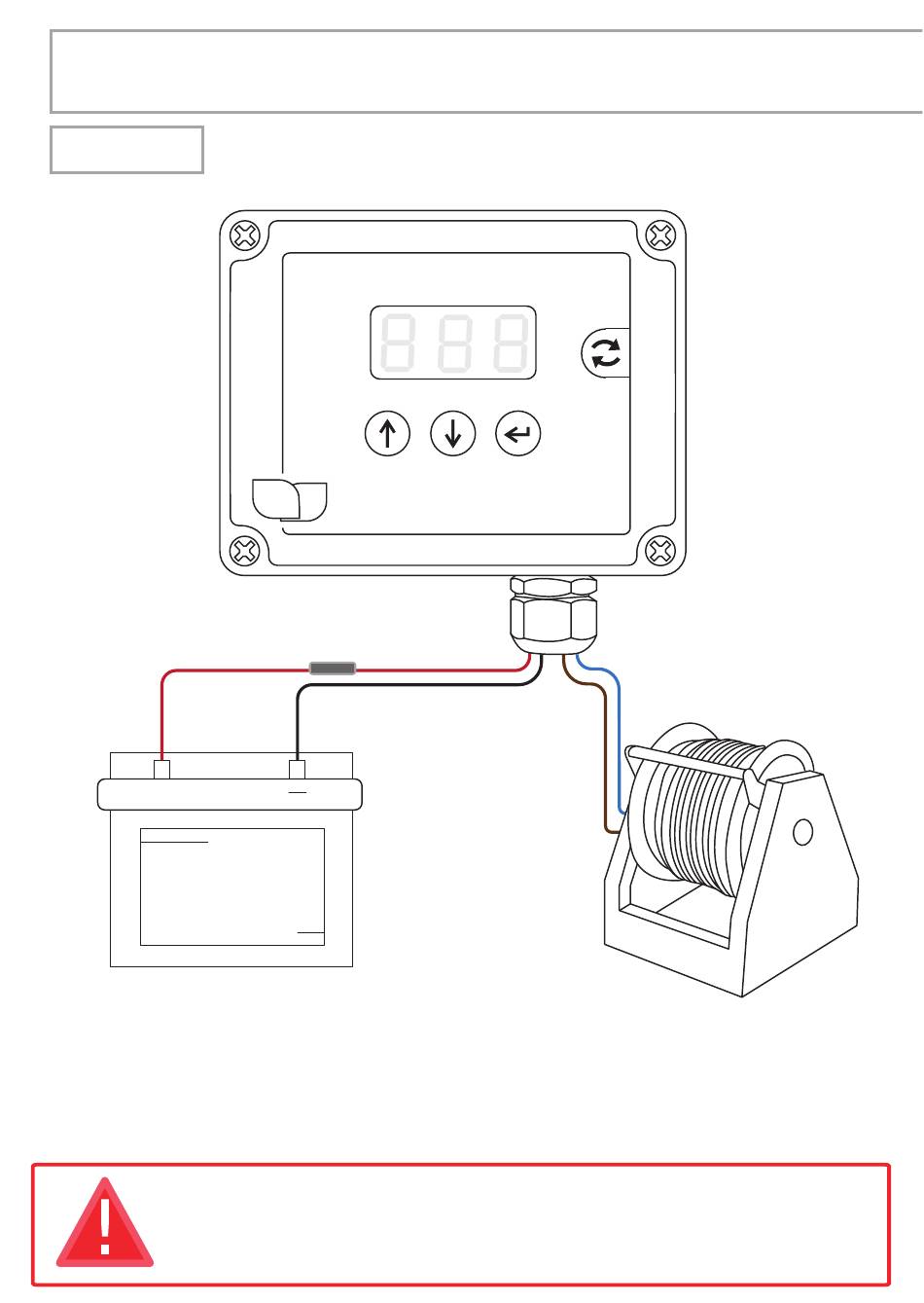

Connect the Reel Winder in accordance with this diagram.
NOTE: only fit the fuse once all connections are made.
Make sure correct fuses are fitted inline. Failure to do so will result in damage to the
unit. Observe correct battery polarity. Failure to do so may result in damage to the unit.
30 Amp Fuse
Quick Start Guide
Motor
/Reel

Advertisement

loading
Need help?

Need help?

Do you have a question about the V16 HC RW and is the answer not in the manual?

Questions and answers

Related Manuals for Spring V16 HC RW

Summary of Contents for Spring V16 HC RW

  • Page 1 Reel Winder Quick Start Guide 1 - Wiring 30 Amp Fuse Motor Battery /Reel Connect the Reel Winder in accordance with this diagram. NOTE: only fit the fuse once all connections are made. Make sure correct fuses are fitted inline. Failure to do so will result in damage to the unit.

  • Page 2: Safety Instructions

    WE ADVISE THAT THESE SAFETY INSTRUCTIONS ARE AFFIXED TO THE REEL SO THAT THEY ARE CLEARLY VISIBLE TO THE REEL OPERATOR. ! SAFETY INSTRUCTIONS ! Follow these instructions carefully to ensure safe operation of this unit. 1. Appropriate Personal Protection Equipment must be worn when operating this unit, eg: goggles and gloves.
  • Page 3 2 - Operation Turn on the controller by pressing the up button. The controller will flash between the current speed setting and StP. Use the up or down button to change between the speed setting. This can be set from 1 to 4, 4 being the fastest. To wind the reel, press and hold the wind button.
  • Page 4 3 - Troubleshooting The motor wires have been disconnected. Check wiring, if message continues contact distributor. The hose has snagged because of an obstruction. An over current has been detected, the controller has shut down the motor to protect itself. Contact distributor. 4 - Controller Options WFP Link - Radio Remote Control Hard Wired Pendant Control...

  • Page 5: Specification

    RELIABILITY, FUNCTION OR DESIGN. THE MANUFACTURER DOES NOT ASSUME ANY LIABILITY ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCT OR CIRCUIT DESCRIBED HEREIN. For more information and videos on how to use Spring controllers please visit: www.springltd.co/videos Copyright © 2021 Spring (Europe) Ltd. All rights reserved.
