Spring V11M BPC Quick Start Manual

Step 1 Fitting Instructions
DISCLAIMER
Unit must be installed by a competent electrician or electrical engineer.
Failure to comply with these instructions could invalidate your warranty.
This V11M BPC unit is supplied already wired. There is no need to
disconnect any wires. Follow these instructions carefully and refer to
the wiring diagram.
IT IS RECOMMENDED THAT YOUR V11M IS FITTED AGAINST A WALL
OR SIMILAR VERTICAL SURFACE.
1. Ensure the V11M is NOT PLUGGED into the MAINS SUPPLY.
2. Remove the top cover by loosening the four corner screws. Using
a large pozidrive screw driver continuously turn clockwise.
3. Carefully remove top cover.
4. Screw unit to the wall or vertical surface through the four ready
drilled holes in the corners of the back box.
5. Carefully replace the top cover and tighten the four corner screws
using the reverse procedure to instruction 2 above.
You are now ready to control your pump.
Specification
Supply Voltage
Fuse Rating
Max Switched Load
Enclosure Material
Water Resistance
Dimensions
Working Temperature
V11M BPC
Value
85 - 264 VAC
5A
1000VA
ABS
IP56
201 x 163 x 150 (mm)
0 to 40 Deg C

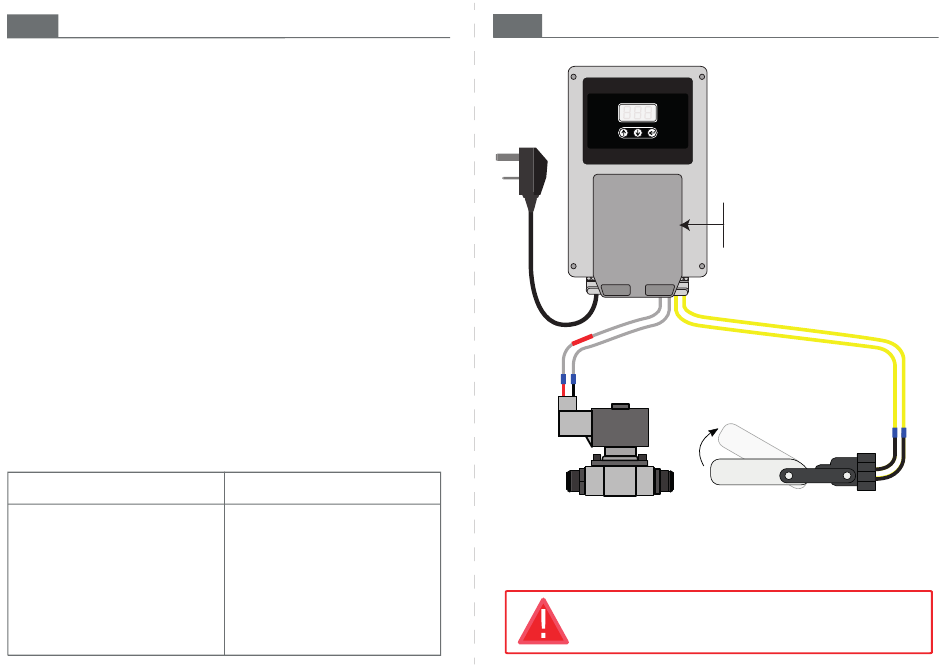

Wiring
Step 1
230Vac Mains
Pump Socket
Outlet
Filling Solenoid Valve
Connect the pump controller in accordance with this diagram
and the fitting instructions.
ALWAYS DISCONNECT THE MAINS SUPPLY BEFORE OPENING UNIT.
ALWAYS DISCONNECT THE MAINS SUPPLY BEFORE CONNECTING
THE PUMP.
Quick Start Guide V11M BPC
Lift cover and connect your
230Vac mains powered pump
by plugging it in to this socket.
Level Switch
